22mm Push Button Switch - Off/(On) Momentary Contact - Blue/Red LED - 4 Lead
This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off/(On) momentary contact.
The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.
Features:
Specifications:
- Function: Off-(On) (momentary contact)
- Off/On: Blue/red
- Rear Mark Page: Green dot
- Switch Rating: 20A/12 24VDC
- Material: Stainless steel
- Mechanical Life: 50,000 cycles
- Electrical Life: 10,000 cycles
Installation
Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

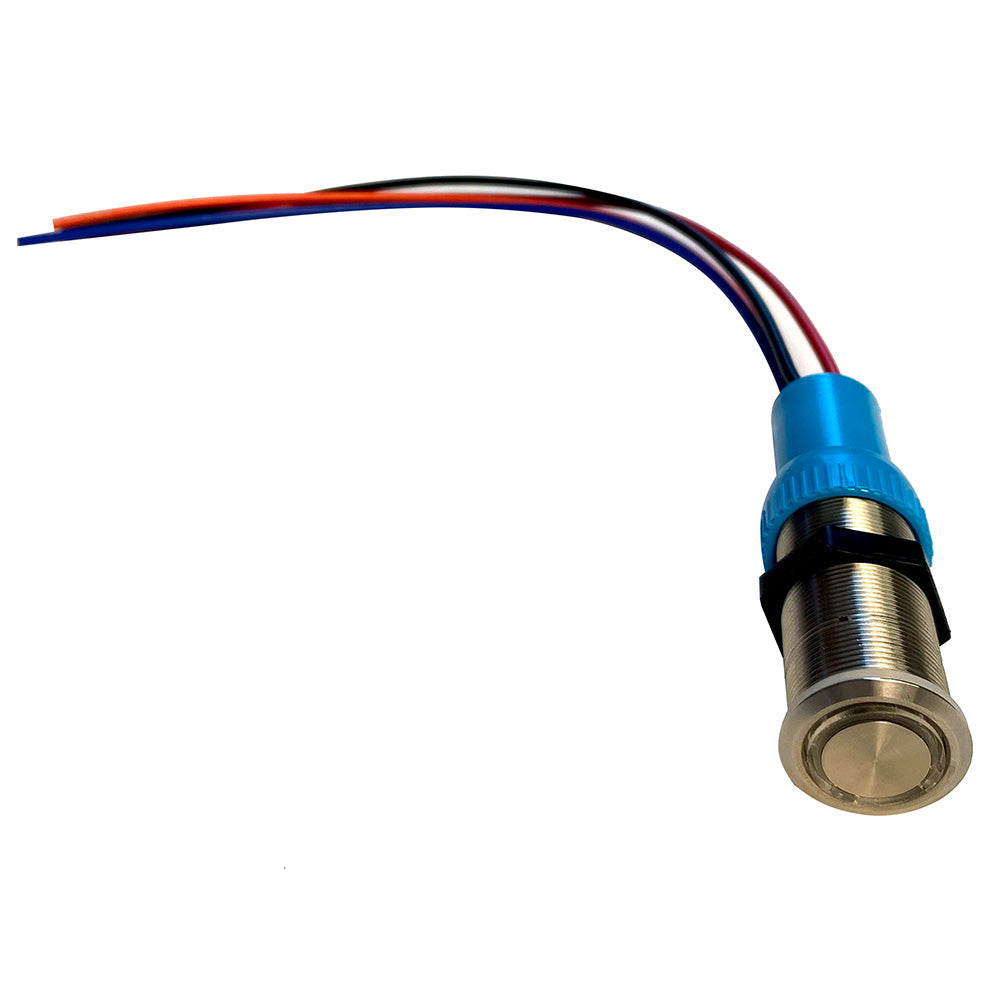

Bluewater 22mm Push Button Switch, Off-(On) Momentary Contact, Blue/Red LED, 4-Foot Lead
The Bluewater 9059-2113-4 push button switch provides dependable momentary control with a clean, modern stainless steel appearance. Designed for applications requiring a 22mm panel opening, this four-lead switch combines a blue/red LED indicator with an Off-(On) momentary contact function, making it easier to identify switch status in low-light conditions.
Its stainless steel construction, included gasket, and IP69K waterproof rating support installation in demanding environments. The blue LED provides backlighting when the switch is off, while the indicator changes to red when the controlled function is on. A 4-foot lead and color-coded connections help simplify installation for dashboards, control panels, and other equipment using compatible 12 or 24 VDC electrical systems.
Installation requires drilling a 22mm hole in material up to 6mm thick. Connect the three button contacts, which are color-coded for convenience, and then connect the two LED contacts. Verify electrical requirements and wiring before installation.
Key Features:
-
Off-(On) momentary contact: Provides momentary switch operation for compatible control circuits.
-
Blue/red LED indicator: Uses blue backlighting when off and red illumination to indicate the function is on.
-
IP69K waterproof rating: The stainless steel body and included gasket support protection against demanding water and cleaning conditions.
-
Stainless steel construction: Adds a durable metal finish for dashboards and control panels.
-
4-foot lead: Provides convenient wire length for installation.
Product Details:
-
Brand: Bluewater
-
Part number: 9059-2113-4
-
Switch type: Off-(On) momentary contact
-
LED indication: Blue/red
-
Panel opening: 22mm
-
Maximum panel material thickness: 6mm
-
Switch rating: 20A at 12–24 VDC
-
Material: Stainless steel
-
Mechanical life: 50,000 cycles
-
Electrical life: 10,000 cycles
-

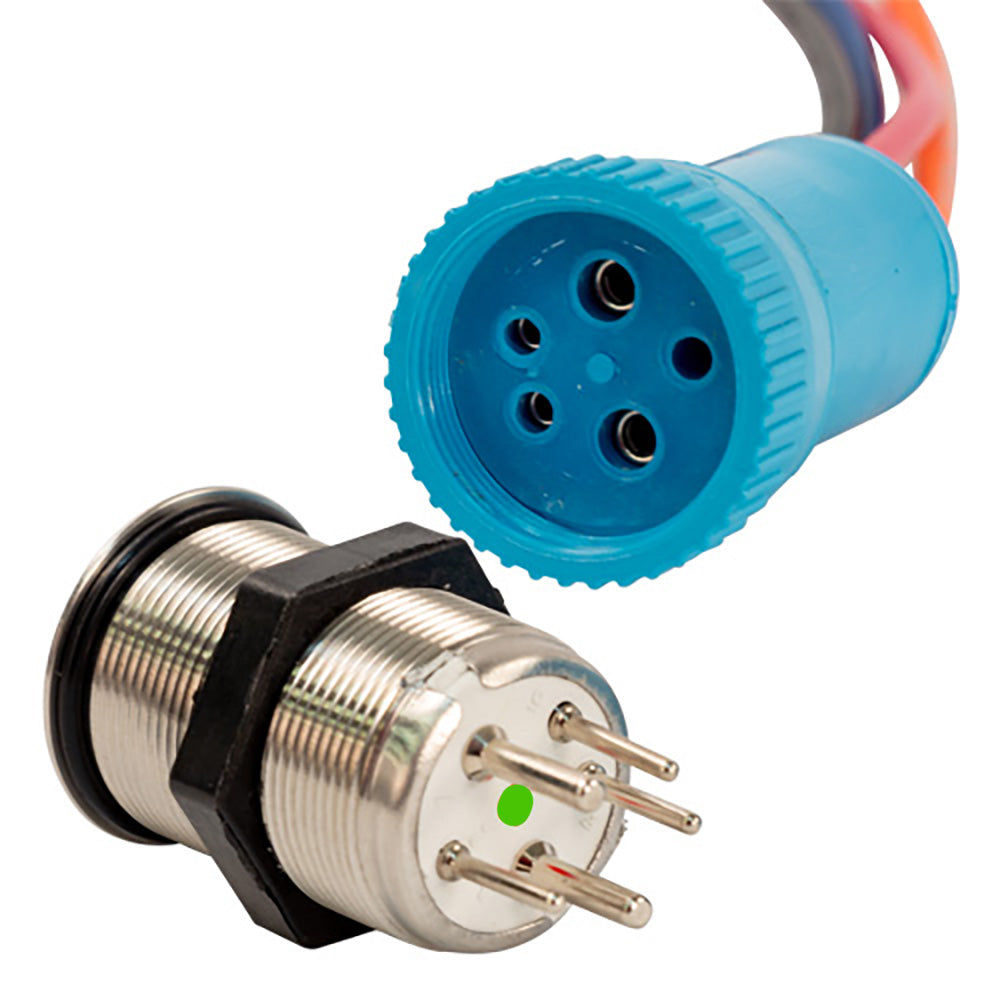

Rear mark: Green dot
-
Lead length: 4 feet
Choose the Bluewater 9059-2113-4 for a clearly visible, momentary push button switch with stainless steel construction and blue/red LED status indication.
