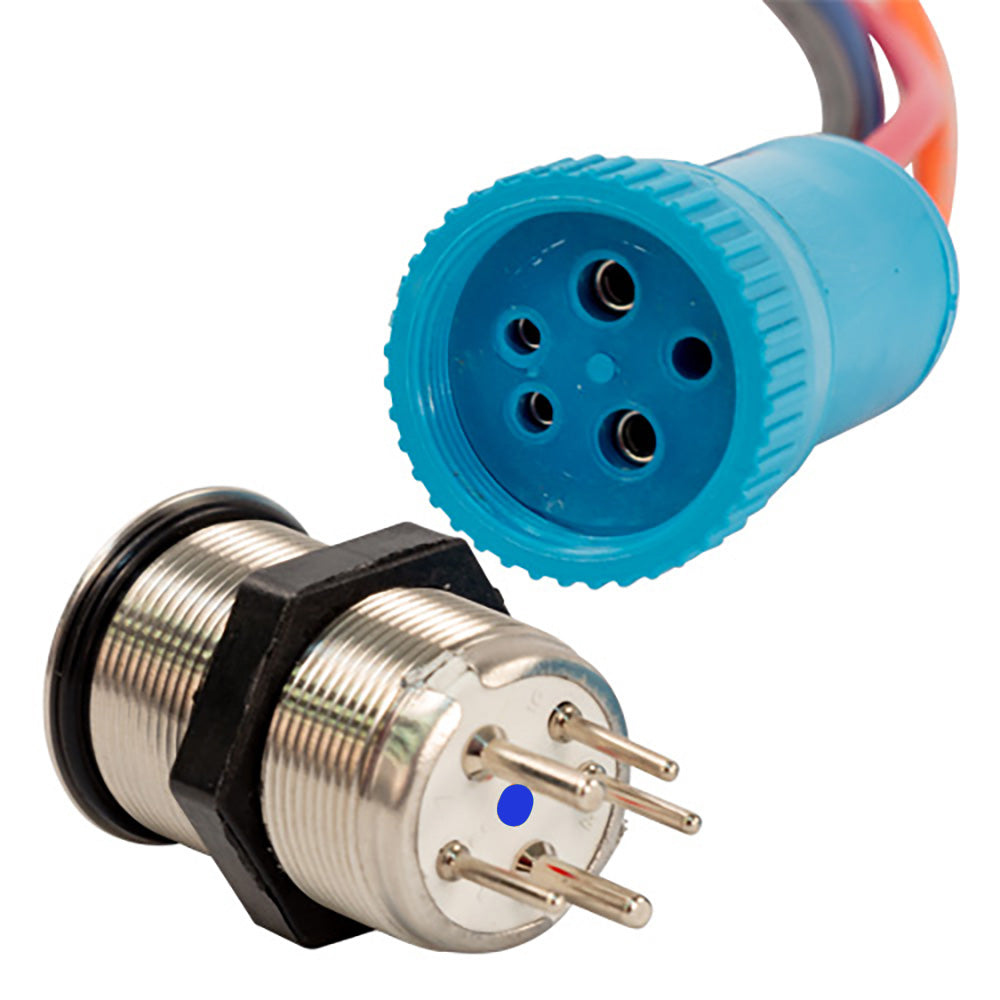

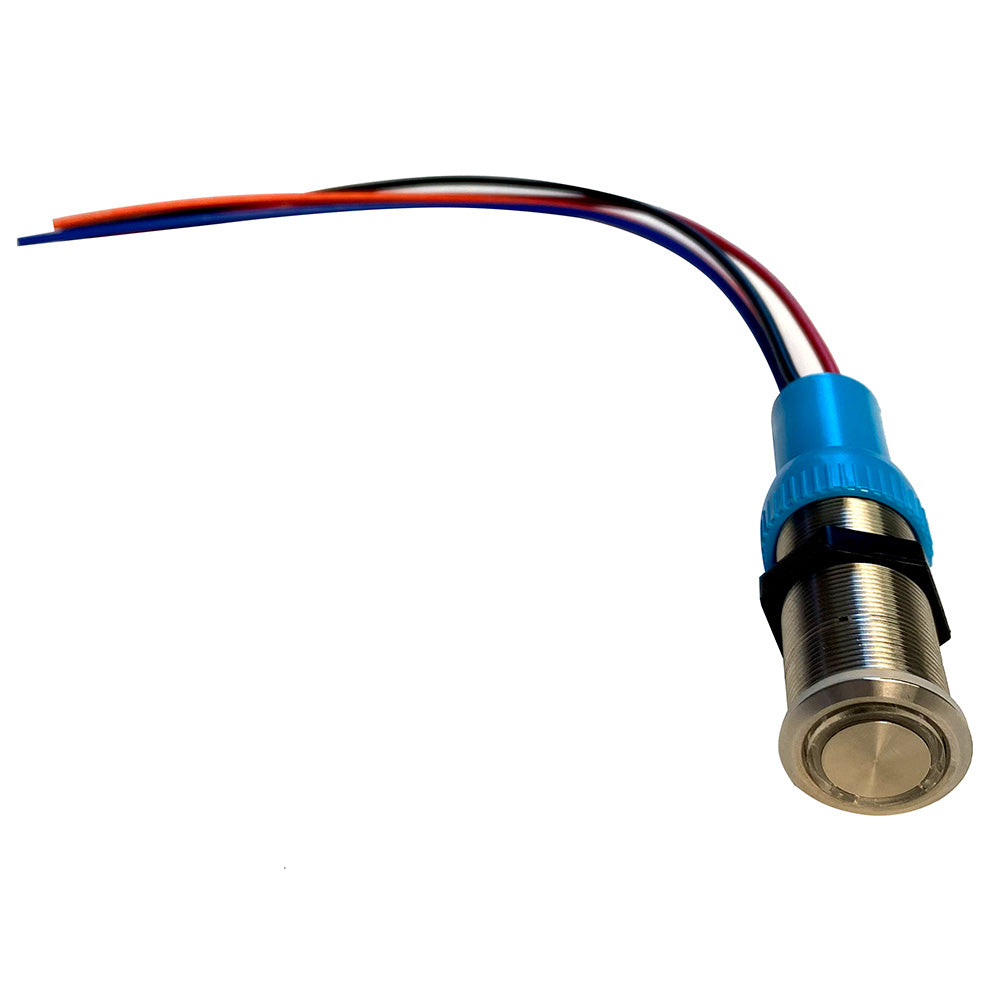

22mm Push Button Switch - Off/On/On Contact - Blue/Green/Red LED - 1 Lead
This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off-On-On standard contact.
The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.
Features:
Specifications:
- Function: Off-On-On (standard contact)
- Off/1st On: Blue/Green
- 2nd On: Red
- Rear Mark Page: Blue dot
- Switch Rating: 20A/12 24VDC
- Material: Stainless steel
- Mechanical Life: 50,000 cycles
- Electrical Life: 10,000 cycles
Installation:
Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.
Bluewater 22mm Push Button Switch adds a clean, modern control solution to dashboards, panels, and other applications requiring an Off-On-On switch function. Model 9059-3113-1 features a stainless steel construction, color-changing LED illumination, and a 1-foot lead for convenient wiring.
Designed for reliable operation in demanding environments, this metal push button switch includes a gasket that contributes to its IP69K waterproof rating. The LED provides blue illumination in the off position, changes to green at the first on position, and changes to red at the second on position, making switch status easy to identify during nighttime or low-light use. The standard Off-On-On contact configuration supports applications that require two on positions from a single control.
Installation requires drilling a 22mm hole through material up to 6mm thick. Connect the three color-coded button contacts, then connect the two LED contacts. With a 20A rating at 12–24 VDC, stainless steel material, and rated mechanical and electrical life, this Bluewater illuminated push button switch is suited for automotive, marine, equipment, and custom control-panel installations where clear visual status indication is important.
Key Features
-
Off-On-On Contact: Provides an off position and two separate on positions for versatile circuit control.
-
Color-Changing LED: Blue in the off/first position, green at the first on position, and red at the second on position for clear status visibility.
-
IP69K Waterproof Rating: The stainless steel body and included gasket help protect the switch in applications exposed to water and washdown conditions.
-
20A Electrical Rating: Rated for 20A at 12–24 VDC for compatible automotive and equipment circuits.
-
Long Rated Life: Mechanical life is rated at 50,000 cycles, with electrical life rated at 10,000 cycles.
-
1-Foot Lead: Includes a 1-foot lead and color-coded contacts to support straightforward installation.
Product Details
-
Brand: Bluewater
-
Part Number: 9059-3113-1
-
Switch Type: 22mm illuminated push button switch
-
Function: Off-On-On, standard contact
-
LED Colors: Blue/green at off and first on; red at second on
-
Rear Mark: Blue dot
-
Switch Rating: 20A at 12–24 VDC
-
Material: Stainless steel
-
Installation: Requires a 22mm hole in material up to 6mm thick
-
Included Lead: 1 foot
Choose the Bluewater 9059-3113-1 for durable metal construction, clear LED status indication, and flexible Off-On-On control in your next panel or dashboard installation.
