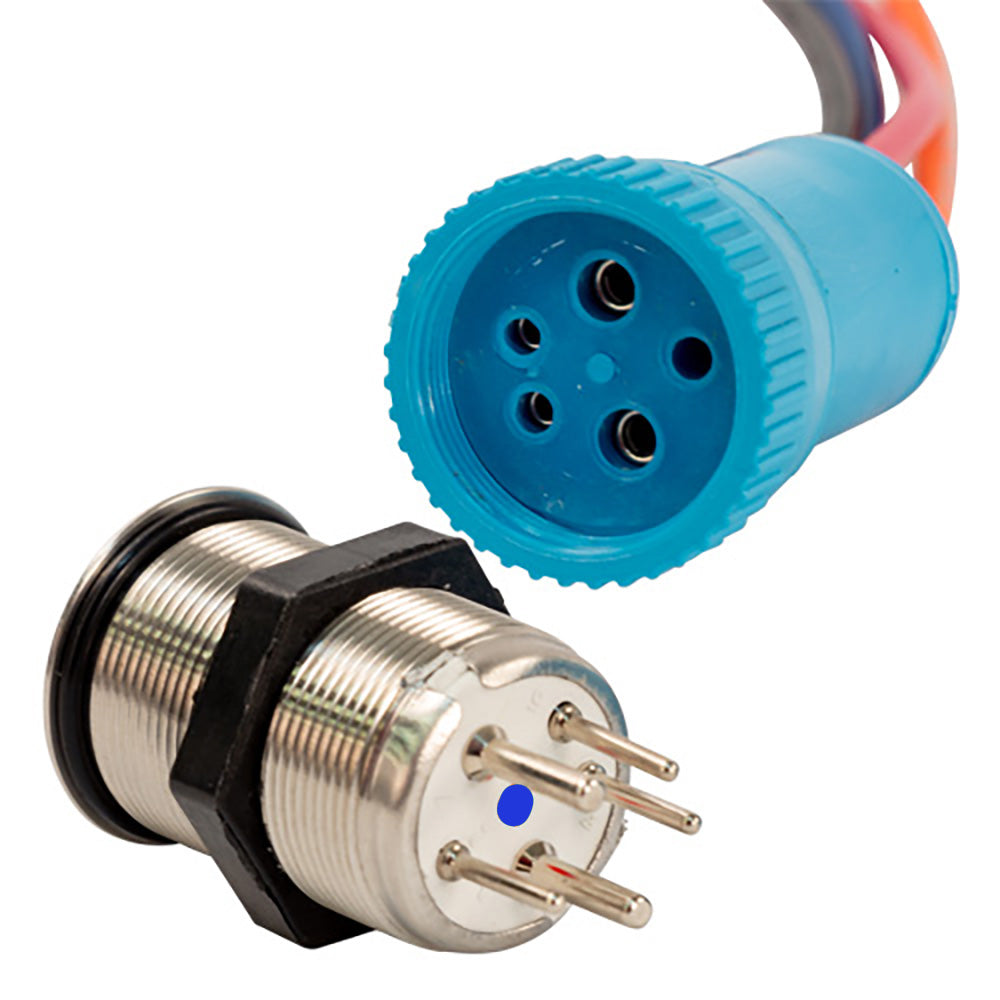

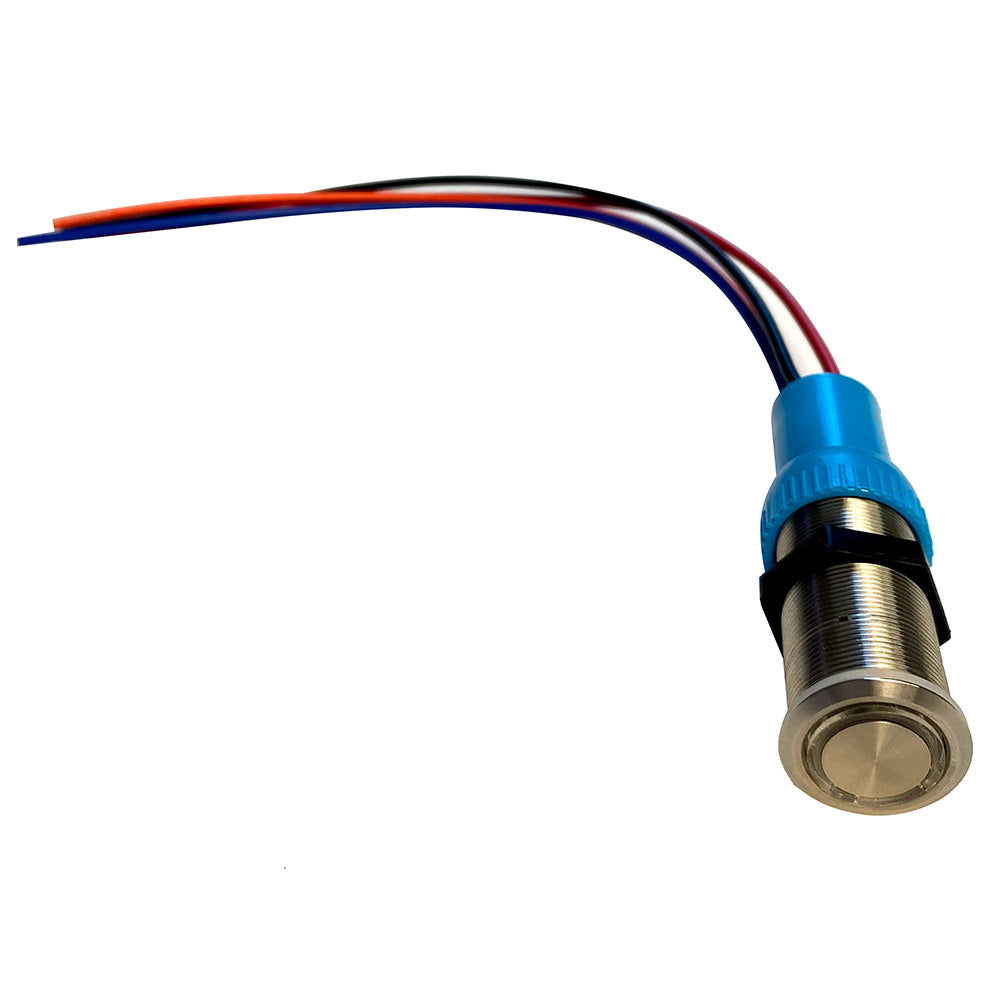

Bluewater 22mm Push Button Switch, Off-On-On Contact, Blue/Green/Red LED, 4-Foot Lead, Part 9059-3113-4

22mm Push Button Switch - Off/On/On Contact - Blue/Green/Red LED - 4 Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off-On-On standard contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 4 ft. lead

Specifications:

• Function: Off-On-On (standard contact)
• Off/1st On: Blue/Green
• 2nd On: Red
• Rear Mark Page: Blue dot
• Switch Rating: 20A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Bluewater 22mm Push Button Switch adds a clean, modern control option to dashboards, panels, and other applications requiring an Off-On-On contact configuration. Featuring a stainless steel construction, color-changing LED illumination, and a 4-foot lead, this four-lead switch provides clear visual feedback while supporting straightforward installation.

The switch uses blue or green illumination in the Off/first On position and changes to red in the second On position, helping users identify the switch status at a glance. Its body design and included gasket provide an IP69K waterproof rating, making the switch suitable for installations where protection from water and cleaning exposure is required. The switch is designed for a 22mm mounting hole in material up to 6mm thick.

Key Features:

• Off-On-On Contact: Provides a standard three-position switching configuration for applicable control panels and dashboard installations.
• Color-Changing LED: Uses blue/green illumination for Off/first On and red illumination for the second On position.
• IP69K Waterproof Rating: The stainless steel body and included gasket help protect the installed switch from water exposure.
• 4-Foot Lead: Provides extended wiring for convenient installation in dashboards, panels, and equipment.
• Durable Construction: Stainless steel material and rated mechanical and electrical life support repeated operation.

Product Details:

• Brand: Bluewater
• Part Number: 9059-3113-4
• Switch Type: Push button
• Mounting Hole: 22mm
• Contact Function: Off-On-On, standard contact
• LED Indication: Off/first On: blue/green; second On: red
• Rear Mark: Blue dot
• Switch Rating: 20A at 12–24 VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles
• Lead Length: 4 feet
• Installation: Requires a 22mm hole in material up to 6mm thick; connect the three button contacts and two LED contacts.

Choose the Bluewater 22mm Push Button Switch for clear status indication, durable stainless steel construction, and an organized Off-On-On control layout.
