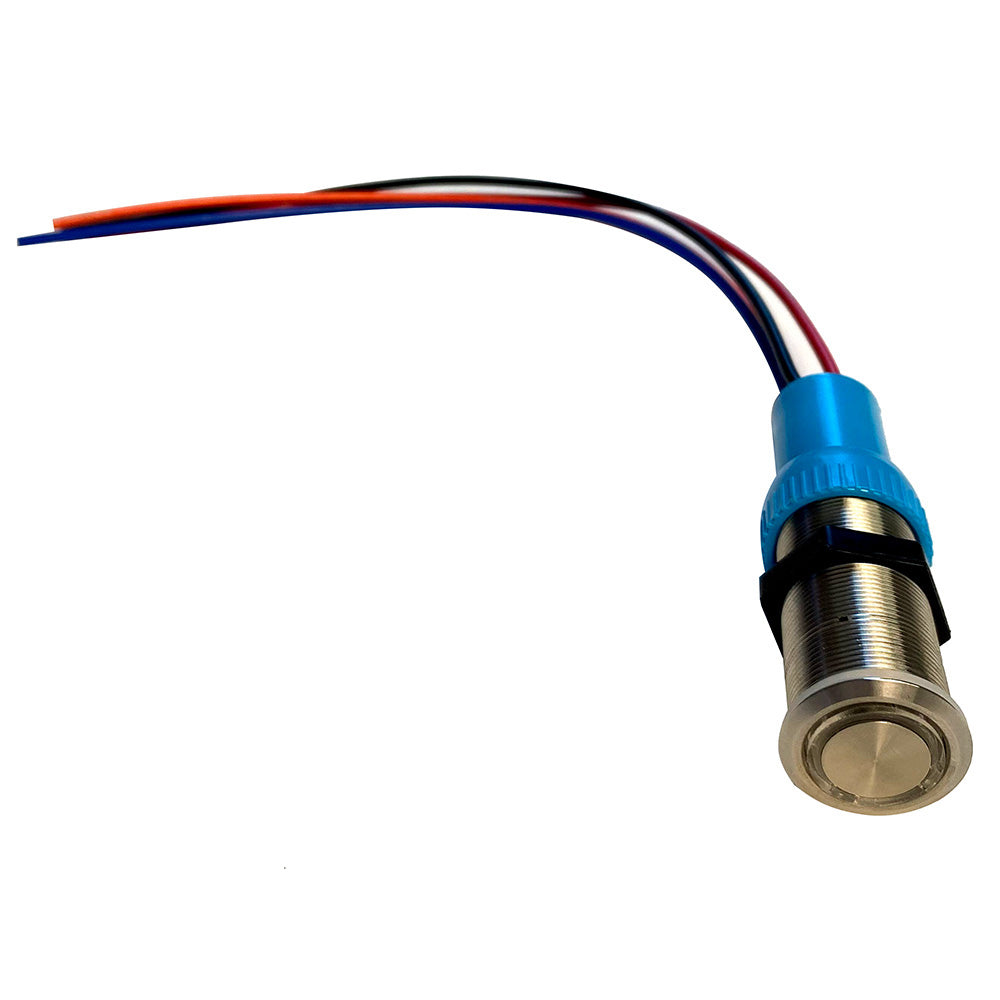

Bluewater 22mm Push Button Switch, Off-(On)-(On) Double Momentary Contact, Blue/Green/Red LED, 4 ft Lead, 9059-2123-4

22mm Push Button Switch - Off/(On)/(On) Double Momentary Contact - Blue/Green/Red LED - 4 Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off-(On)-(On) double momentary contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 4 ft. lead

Specifications:

• Function: Off-(On)-(On) (double momentary contact)
• Off/1st On: Blue/Green
• 2nd On: Red
• Rear Mark Page: Green dot
• Switch Rating: 20A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation

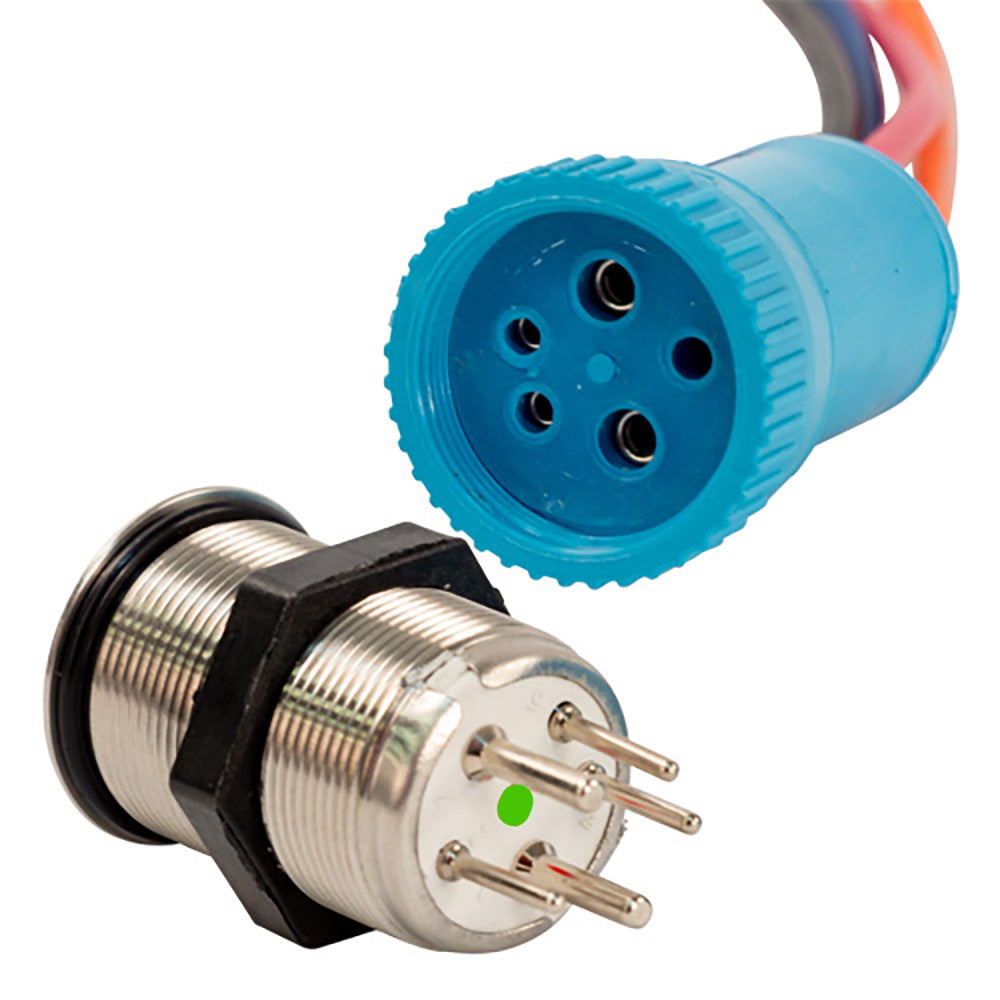

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

The Bluewater 22mm Push Button Switch adds a clean, modern control solution to dashboards, panels, and other equipment requiring an Off-(On)-(On) double momentary contact. Its stainless-steel construction, color-changing LED illumination, and included gasket support dependable installation and clear function visibility in demanding applications.

Designed for a 22mm mounting hole, this four-lead momentary switch provides blue or green illumination in the Off/first On position and changes to red in the second On position, helping users identify the switch state at a glance. The body design and included gasket provide an IP69K waterproof rating. A 4-foot lead offers flexibility during installation, while the color-coded contacts help simplify wiring for the button and LED.

Key Features:

• Off-(On)-(On) Function: Provides double momentary contact operation for applications requiring two momentary On positions.
• Color-Changing LED: Blue/green illumination indicates the Off/first On position, while red identifies the second On position.
• IP69K Waterproof Rating: The switch body and included gasket are designed to provide protection against high-pressure, high-temperature water exposure.
• Stainless-Steel Construction: Provides a durable metal button design with a polished, modern appearance.
• 4-Foot Lead: Supports flexible switch placement and wiring during installation.

Product Details:

• Brand: Bluewater
• Part Number: 9059-2123-4
• Switch Type: 22mm push button switch
• Function: Off-(On)-(On), double momentary contact
• LED Indication: Off/first On: blue/green; second On: red
• Rear Mark: Green dot
• Switch Rating: 20A at 12–24 VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles
• Lead Length: 4 feet
• Installation: Drill a 22mm hole in material up to 6mm thick. Connect the three button contacts and two LED contacts using the color-coded wiring.

Choose the Bluewater 9059-2123-4 for a clearly illuminated, stainless-steel momentary push button switch suited to dashboard and panel control installations.
