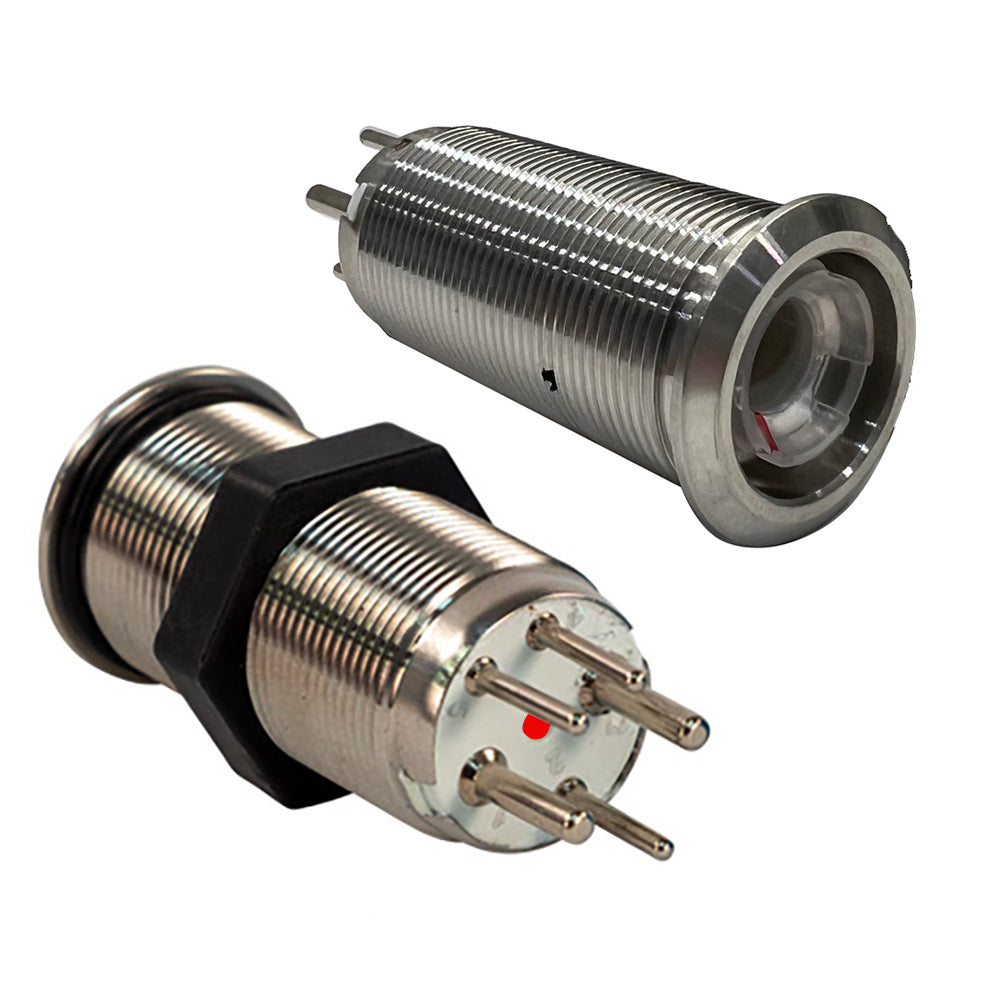

19mm Inrush Push Button Switch Off/On - Blue/Red LED - Switch Body Only
The 9057 Series 19mm Marine Grade Switch is a compact precision control solution engineered for tight panel layouts and rugged environments. Housed in corrosion-resistant SS316 stainless steel and sealed to an IP69K waterproof rating made possible by Bluewaters proprietary Deutsch-style connectors, it is built to withstand the demands of marine and outdoor applications.
This IP69K waterproof switch is ideal for locations exposed to salt spray, washdowns, and constant environmental stress.
This switch provides clear and intuitive feedback with smart LED indicators. It glows soft blue for backlighting and bright red when active, giving you immediate visual confirmation of power status. Rated for 15 amps in single channel or 7.5 amps per channel in dual channel configurations, the 9057 handles high current loads with consistent performance and reliability.
Each switch features a fully detachable actuator that is completely customizable to fit your specific needs and style preferences. The built-in backlighting ensures visibility in any lighting condition.
Ideal for boat builders, marine technicians, and anyone upgrading electrical systems where space is limited and durability is critical.
Specifications:
- Switch Rating: 15A/12-24VDC
- Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
- Mechanical Life: 50,000 Cycles
- Electrical Life: 10,000 Cycles
- Dimensions: View Dimensional Drawings
- Material: Nickel Plated Brass/ Stainless Steel
- LED Color: Blue/Green/Red
Installation:
Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.
Bluewater 9057-1113 19mm Marine Grade Inrush Push Button Switch delivers compact, dependable control for boat builders, marine technicians, and electrical system upgrades where panel space is limited. Designed for demanding marine and outdoor environments, this off/on push button switch features a corrosion-resistant stainless steel and nickel-plated brass construction with an IP69K waterproof rating for resistance to salt spray, washdowns, and ongoing environmental exposure.
The integrated LED indicators provide clear visual feedback during operation. The switch glows soft blue for backlighting and bright red when active, helping users quickly confirm power status in a range of lighting conditions. Rated at 15 amps and 12-24VDC, the Bluewater 9057-1113 supports high-current electrical applications in single-channel configurations, while its available contact configurations accommodate different switching requirements.
Built for practical installation, this 19mm push button switch fits panels made from material up to 6mm thick. The detachable actuator can be customized to match specific application and style preferences, while the switch body design supports clean, space-conscious installations. The switch body only configuration is well suited for marine control panels, outdoor equipment, and electrical systems requiring a durable, compact control interface.
Key Features:
-
Marine-grade construction: Corrosion-resistant stainless steel and nickel-plated brass help support use in demanding marine and outdoor environments.
-
IP69K waterproof rating: Designed for locations exposed to salt spray, washdowns, and environmental stress.
-
Blue/red LED indication: Provides soft blue backlighting and bright red active-status illumination for quick visual confirmation.
-
15A, 12-24VDC rating: Supports high-current switching applications in compatible electrical systems.
-
Compact 19mm installation: Fits a 19mm panel hole and material up to 6mm thick for space-conscious control panels.
-
Long service life: Rated for 50,000 mechanical cycles and 10,000 electrical cycles.
Product Details:
-
Brand: Bluewater
-
Part Number: 9057-1113
-
Product Type: 19mm inrush push button switch, off/on, switch body only
-
Switch Rating: 15A/12-24VDC
-
Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
-
Material: Nickel-plated brass/stainless steel
-
LED Colors: Blue, green, and red
-
Installation: Drill a 19mm hole into material up to 6mm thick. Connect the three color-coded button contacts and two LED contacts.
Choose the Bluewater 9057-1113 for compact, clearly illuminated switching in marine, outdoor, and space-limited electrical applications.
