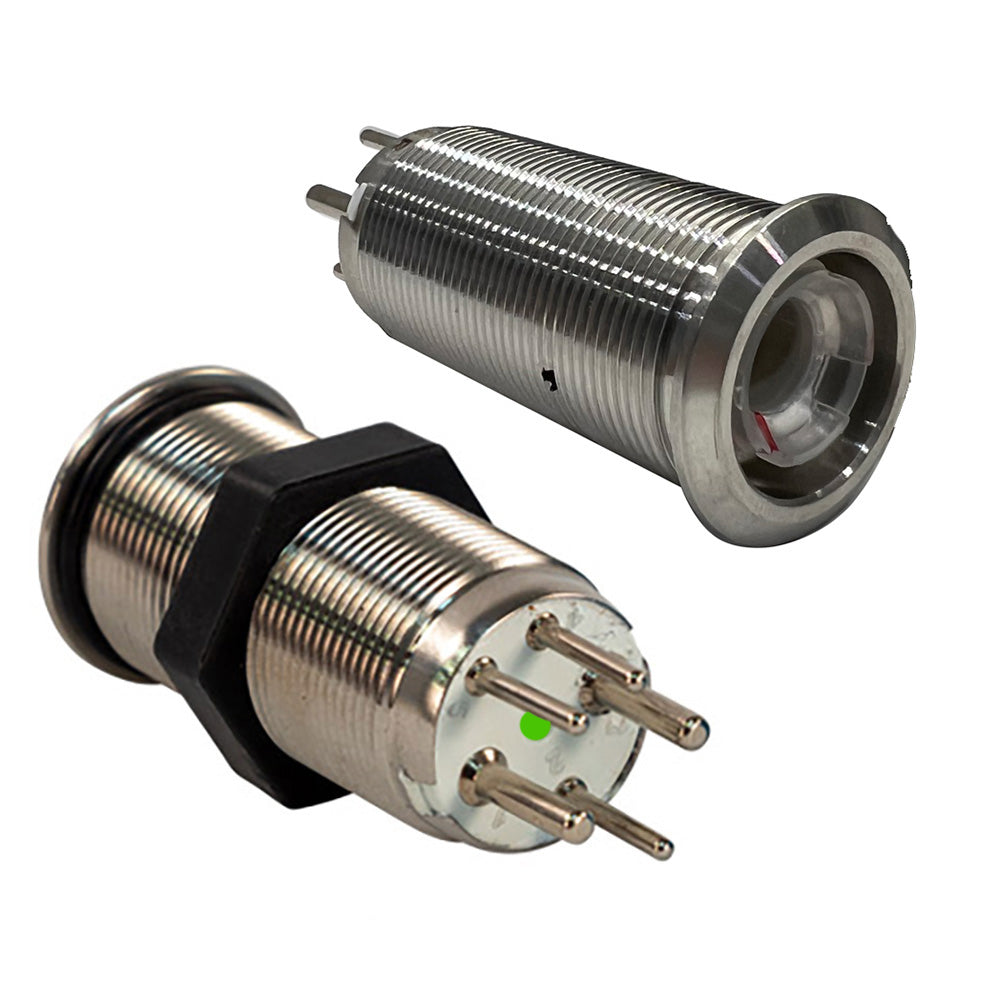

19mm Inrush Push Button Switch Momentary Off-(On) - Blue/Red LED - Switch Body Only
The 9057 Series 19mm Marine Grade Switch is a compact precision control solution engineered for tight panel layouts and rugged environments. Housed in corrosion-resistant SS316 stainless steel and sealed to an IP69K waterproof rating made possible by Bluewaters proprietary Deutsch-style connectors, it is built to withstand the demands of marine and outdoor applications.
This IP69K waterproof switch is ideal for locations exposed to salt spray, washdowns, and constant environmental stress.
This switch provides clear and intuitive feedback with smart LED indicators. It glows soft blue for backlighting and bright red when active, giving you immediate visual confirmation of power status. Rated for 15 amps in single channel or 7.5 amps per channel in dual channel configurations, the 9057 handles high current loads with consistent performance and reliability.
Each switch features a fully detachable actuator that is completely customizable to fit your specific needs and style preferences. The built-in backlighting ensures visibility in any lighting condition.
Ideal for boat builders, marine technicians, and anyone upgrading electrical systems where space is limited and durability is critical.
Specifications:
- Switch Rating: 15A/12-24VDC
- Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
- Mechanical Life: 50,000 Cycles
- Electrical Life: 10,000 Cycles
- Dimensions: View Dimensional Drawings
- Material: Nickel Plated Brass/ Stainless Steel
- LED Color: Blue/Green/Red
Installation:
Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.
The Bluewater 9057-2113 19mm Inrush Push Button Switch provides compact, dependable control for marine electrical systems, outdoor equipment, and tight panel layouts. Designed for boat builders, marine technicians, and electrical system upgrades, this momentary Off-(On) switch combines a corrosion-resistant construction with IP69K waterproof protection for demanding environments exposed to salt spray, washdowns, and ongoing environmental stress.
Built-in LED indicators provide clear visual feedback during operation. The switch glows soft blue for backlighting and bright red when active, helping users quickly identify power status in varying lighting conditions. With a 15-amp rating at 12-24VDC, the 9057-2113 supports high-current control applications while offering both single-channel and dual-channel contact configurations. The fully detachable actuator can also be customized to suit specific installation and style requirements.
Installation requires a 19mm panel hole in material up to 6mm thick. The color-coded button contacts simplify wiring, while separate LED contacts support the integrated indicator lighting. This product is the switch body only, making it a practical choice for replacing or configuring a compact marine-grade control in a customized panel system.
Key Features:
-
Marine-grade construction: Nickel-plated brass and stainless steel materials support use in rugged marine and outdoor environments.
-
IP69K waterproof rating: Designed for locations exposed to salt spray, washdowns, and environmental stress.
-
Blue/red LED indicators: Provides soft blue backlighting and bright red active-status feedback.
-
High-current switching: Rated at 15A at 12-24VDC for demanding electrical control applications.
-
Customizable actuator: Fully detachable actuator supports tailored installation and appearance.
-
Compact panel installation: Fits a 19mm mounting hole and material up to 6mm thick.
Product Details:
-
Brand: Bluewater
-
Part number: 9057-2113
-
Product type: 19mm momentary Off-(On) push button switch, switch body only
-
Switch rating: 15A at 12-24VDC
-
Switch contacts: 1 NO, 1 NC or 2 NO, 2 NC
-
Mechanical life: 50,000 cycles
-
Electrical life: 10,000 cycles
-
Materials: Nickel-plated brass and stainless steel
-
LED colors: Blue, green, and red options specified by the manufacturer
-
Installation: Requires a 19mm hole in material up to 6mm thick; connect three color-coded button contacts and two LED contacts
Choose the Bluewater 9057-2113 for compact, clearly illuminated switching in marine panels and other space-limited electrical installations.
