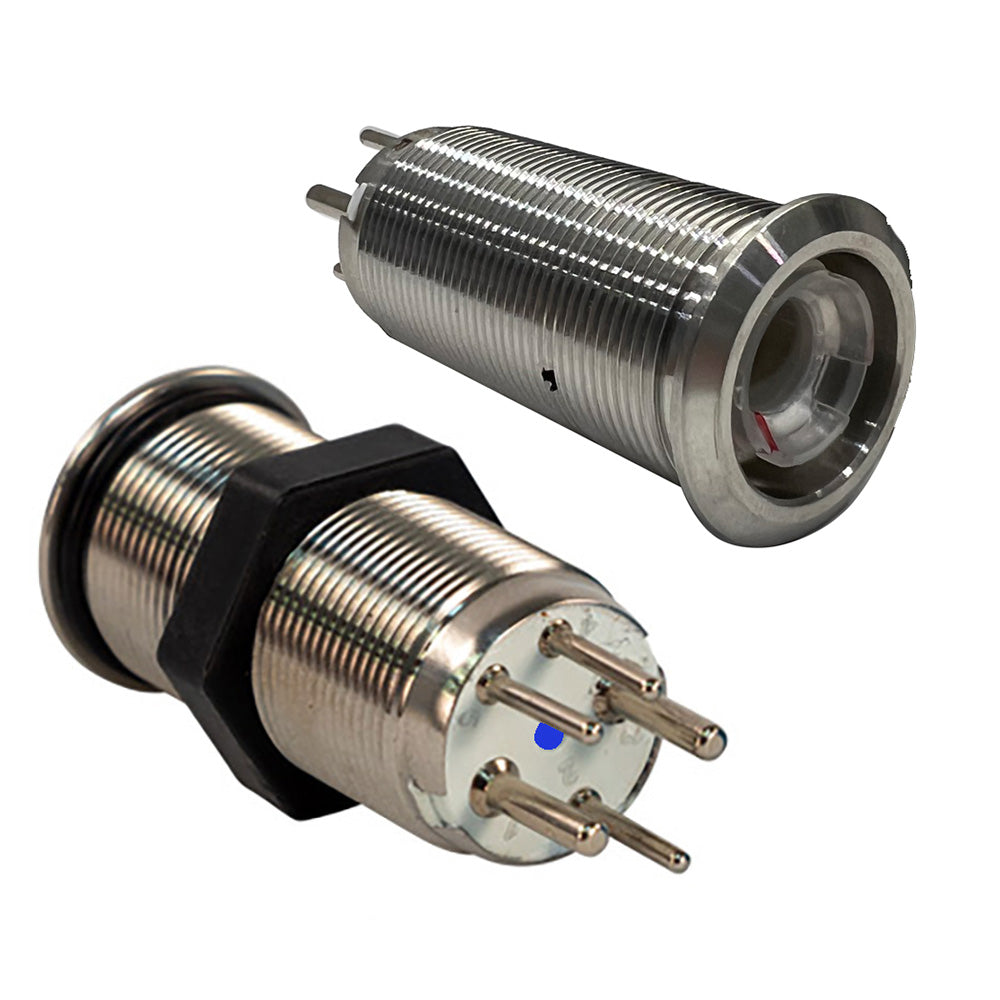

19mm Inrush Push Button Switch Off/On/On - Blue/Green/Red LED - Switch Body Only
The 9057 Series 19mm Marine Grade Switch is a compact precision control solution engineered for tight panel layouts and rugged environments. Housed in corrosion-resistant SS316 stainless steel and sealed to an IP69K waterproof rating made possible by Bluewaters proprietary Deutsch-style connectors, it is built to withstand the demands of marine and outdoor applications.
This IP69K waterproof switch is ideal for locations exposed to salt spray, washdowns, and constant environmental stress.
This switch provides clear and intuitive feedback with smart LED indicators. It glows soft blue for backlighting and bright red when active, giving you immediate visual confirmation of power status. Rated for 15 amps in single channel or 7.5 amps per channel in dual channel configurations, the 9057 handles high current loads with consistent performance and reliability.
Each switch features a fully detachable actuator that is completely customizable to fit your specific needs and style preferences. The built-in backlighting ensures visibility in any lighting condition.
Ideal for boat builders, marine technicians, and anyone upgrading electrical systems where space is limited and durability is critical.
Specifications:
- Switch Rating: 15A/12-24VDC
- Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
- Mechanical Life: 50,000 Cycles
- Electrical Life: 10,000 Cycles
- Dimensions: View Dimensional Drawings
- Material: Nickel Plated Brass/ Stainless Steel
- LED Color: Blue/Green/Red
Installation:
Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.
Bluewater 9057-3113 19mm Marine Push Button Switch delivers compact, intuitive control for boat builders, marine technicians, and electrical system upgrades where panel space is limited and durability matters. This Off/On/On switch features a blue, green, and red LED configuration for clear visual feedback, while its marine-grade construction supports demanding outdoor and marine environments.
Built with corrosion-resistant SS316 stainless steel and nickel-plated brass, the 9057 Series switch is sealed to an IP69K waterproof rating using Bluewater’s proprietary Deutsch-style connectors. It is well suited for applications exposed to salt spray, washdowns, and ongoing environmental stress. The LED backlighting improves visibility in varying lighting conditions, and the indicator provides an immediate visual reference for switch status.
Designed for high-current control, the switch is rated at 15 amps at 12–24 volts DC in single-channel configurations or 7.5 amps per channel in dual-channel configurations. Its fully detachable actuator can be customized to accommodate specific installation and styling preferences. The switch body installs through a 19mm panel opening in material up to 6mm thick, making it a practical choice for compact marine control panels and other space-constrained electrical layouts.
Installation requires drilling a 19mm hole, connecting the three color-coded button contacts, and connecting the two LED contacts. This listing includes the switch body only.
Key Features:
-
Marine-grade construction: SS316 stainless steel and nickel-plated brass support use in rugged marine and outdoor environments.
-
IP69K waterproof rating: Helps protect the switch in applications exposed to washdowns, salt spray, and environmental stress.
-
LED status indication: Blue, green, and red LED colors provide backlighting and visual switch feedback.
-
High-current capability: Rated at 15 amps at 12–24VDC for single-channel use or 7.5 amps per channel in dual-channel configurations.
-
Detachable actuator: Allows customization for installation requirements and style preferences.
-
Compact panel installation: Fits a 19mm mounting hole in material up to 6mm thick.
Product Details:
-
Brand: Bluewater
-
Part number: 9057-3113
-
Product type: 19mm Off/On/On inrush push button switch, switch body only
-
Switch rating: 15A at 12–24VDC
-
Switch contacts: 1 NO, 1 NC; 2 NO, 2 NC
-
Mechanical life: 50,000 cycles
-
Electrical life: 10,000 cycles
-
Material: Nickel-plated brass and stainless steel
-
LED colors: Blue, green, and red
-
Installation: Drill a 19mm hole into material up to 6mm thick; connect three button contacts and two LED contacts.
Choose the Bluewater 9057-3113 for compact, durable switching and clear LED indication in marine and outdoor electrical systems.
