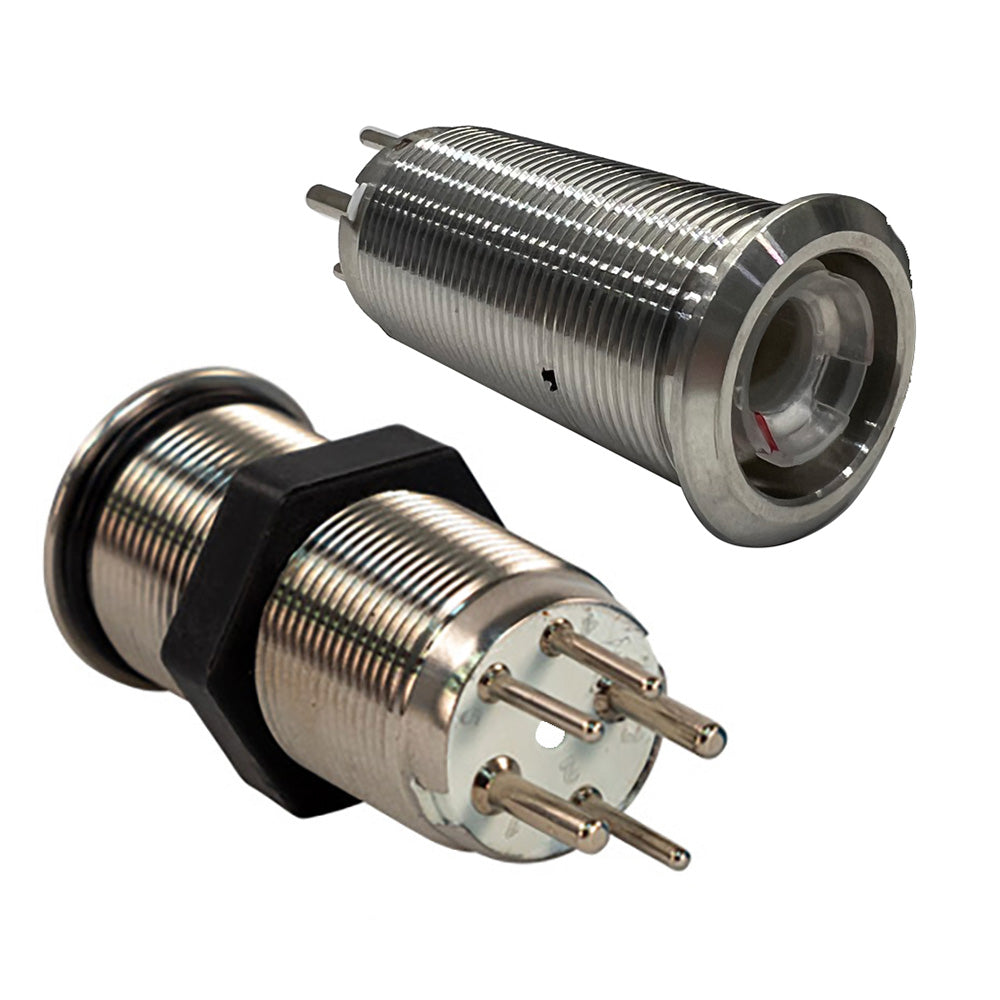

19mm Inrush Push Button Switch Nav/Anchor Off/On/On - Blue/Green/Red LED - Switch Body Only
The 9057 Series 19mm Marine Grade Switch is a compact precision control solution engineered for tight panel layouts and rugged environments. Housed in corrosion-resistant SS316 stainless steel and sealed to an IP69K waterproof rating made possible by Bluewaters proprietary Deutsch-style connectors, it is built to withstand the demands of marine and outdoor applications.
This IP69K waterproof switch is ideal for locations exposed to salt spray, washdowns, and constant environmental stress.
This switch provides clear and intuitive feedback with smart LED indicators. It glows soft blue for backlighting and bright red when active, giving you immediate visual confirmation of power status. Rated for 15 amps in single channel or 7.5 amps per channel in dual channel configurations, the 9057 handles high current loads with consistent performance and reliability.
Each switch features a fully detachable actuator that is completely customizable to fit your specific needs and style preferences. The built-in backlighting ensures visibility in any lighting condition.
Ideal for boat builders, marine technicians, and anyone upgrading electrical systems where space is limited and durability is critical.
Specifications:
- Switch Rating: 15A/12-24VDC
- Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
- Mechanical Life: 50,000 Cycles
- Electrical Life: 10,000 Cycles
- Dimensions: View Dimensional Drawings
- Material: Nickel Plated Brass/ Stainless Steel
- LED Color: Blue/Green/Red
Installation:
Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.
Bluewater 9057-3114 19mm Marine Push Button Switch provides compact, intuitive control for boat builders, marine technicians, and electrical upgrades where panel space is limited. Designed for Nav/Anchor Off/On/On applications, this switch combines a durable stainless steel and nickel-plated brass construction with IP69K waterproof protection for demanding marine and outdoor environments.
The switch uses LED illumination to provide clear visual feedback during operation. Blue, green, and red LED options support backlighting and status indication, helping users quickly identify switch conditions in low-light or bright environments. With a 15-amp, 12-24VDC rating and support for single- or dual-channel configurations, the Bluewater 9057-3114 is suited for a range of marine electrical control applications.
A fully detachable actuator allows customization to match specific installation and style requirements. Installation requires a 19mm panel hole in material up to 6mm thick, followed by connection of the color-coded switch contacts and LED contacts. The switch body is designed for space-conscious panel layouts while offering the durability needed for exposure to salt spray, washdowns, and ongoing environmental stress.
KEY FEATURES:
-
Feature: IP69K waterproof construction helps support reliable use in marine, outdoor, salt-spray, and washdown environments.
-
Feature: 15A, 12-24VDC switch rating supports high-current marine electrical control applications.
-
Feature: Blue, green, and red LED options provide backlighting and clear visual status feedback.
-
Feature: Fully detachable actuator enables customization for specific installation needs.
-
Feature: Rated for 50,000 mechanical cycles and 10,000 electrical cycles.
-
Feature: Compact 19mm panel-mount format is suitable for tight control layouts.
PRODUCT DETAILS:
-
Brand: Bluewater
-
Part Number: 9057-3114
-
Product Type: Marine inrush push button switch
-
Function: Nav/Anchor Off/On/On
-
Switch Rating: 15A at 12-24VDC
-
Switch Contacts: 1 NO, 1 NC or 2 NO, 2 NC
-
Material: Nickel-plated brass and stainless steel
-
LED Colors: Blue, green, and red
-
Panel Installation: Requires a 19mm hole in material up to 6mm thick
-
Configuration: Switch body only
Choose the Bluewater 9057-3114 for compact, clearly illuminated marine switching in demanding panel installations.
