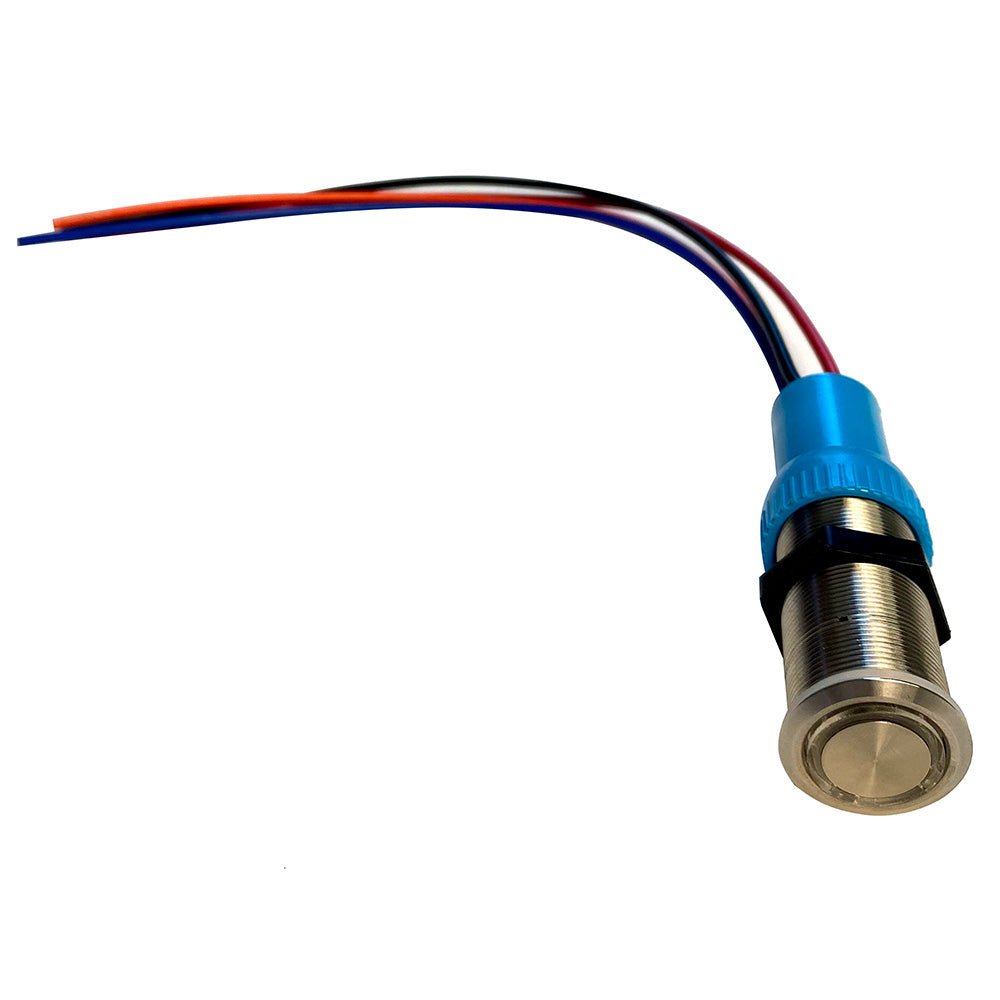

22mm Push Button Switch - Off/On Contact - Blue/Red LED - 4 Lead
This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has a standard Off/On contact.
The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.
Features:
Specifications:
- Function: Off-On (standard contact)
- Off/On: Blue/red
- Rear Mark Page: Red dot
- Switch Rating: 20A/12 24VDC
- Material: Stainless steel
- Mechanical Life: 50,000 cycles
- Electrical Life: 10,000 cycles
Installation

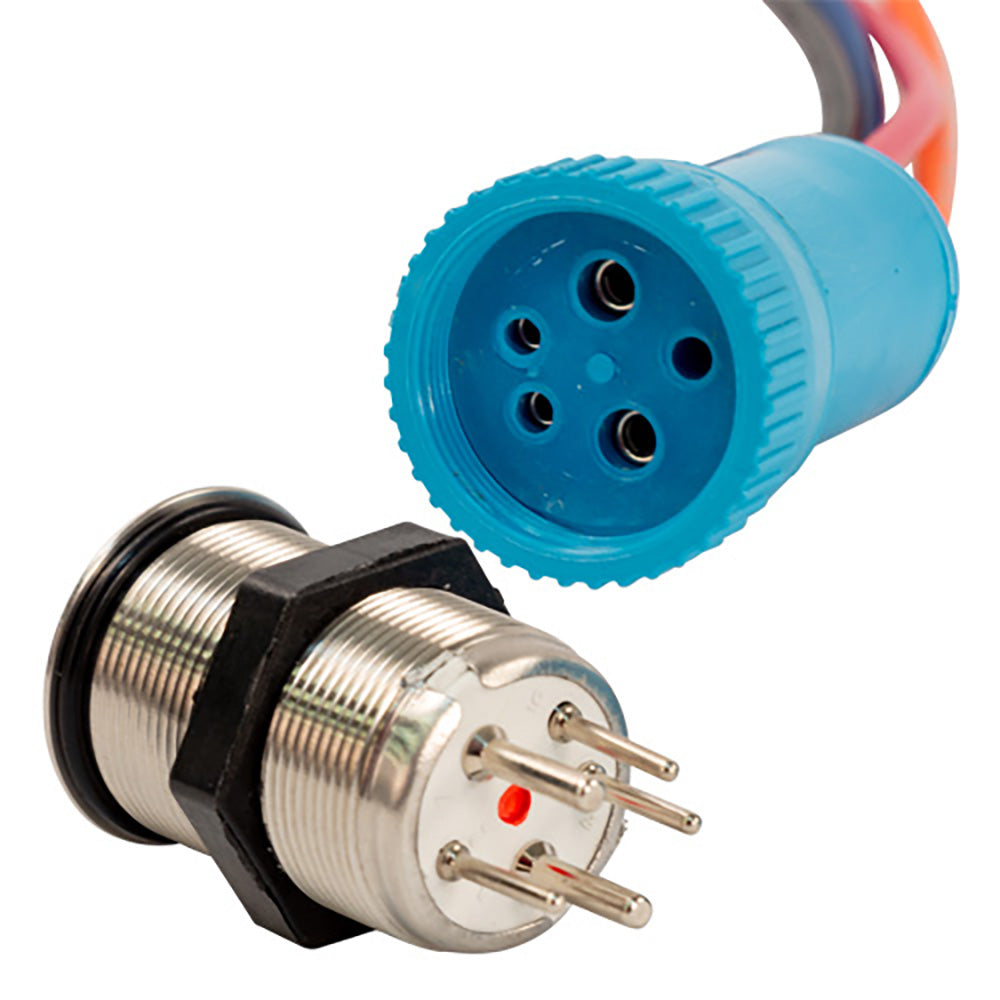

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.
Bluewater 9059-1113-4 22mm Push Button Switch adds a clean, modern control solution to dashboards, panels, and other equipment requiring a standard off/on contact. Featuring a stainless-steel plated metal button, blue/red LED illumination, and a 4-foot lead, this switch provides clear visual feedback while supporting straightforward installation.
The switch uses blue backlighting for visibility when the function is off and changes to red when the function is on. Its body design, combined with the included gasket, provides an IP69K waterproof rating for applications where protection from water and contaminants is important. The standard off/on contact and color-coded connections help simplify setup for compatible 12- or 24-volt DC systems.
Installation requires drilling a 22mm hole through material up to 0.24 inches thick. Connect the three button contacts, which are color-coded for convenience, then connect the two LED contacts. The Bluewater 9059-1113-4 is suited for automotive dashboards, control panels, marine equipment, utility vehicles, and other installations that need an illuminated metal push button switch.
Key Features:
-
Feature: Standard off/on contact provides simple, direct switching operation.
-
Feature: Blue LED illumination indicates the off state, while red LED illumination indicates the on state.
-
Feature: Stainless steel construction delivers a durable metal-button design.
-
Feature: IP69K waterproof rating helps protect the switch in demanding installation environments.
-
Feature: Included 4-foot lead supports flexible installation and wiring access.
-
Feature: Rated for 20 amps at 12–24 volts DC.
Product Details:
-
Brand: Bluewater
-
Part Number: 9059-1113-4
-
Product Type: 22mm push button switch
-
Function: Off-on, standard contact
-
LED Indicator: Blue/red
-
Material: Stainless steel
-
Lead Length: 4 feet
-
Switch Rating: 20A at 12–24VDC
-
Mechanical Life: 50,000 cycles
-
Electrical Life: 10,000 cycles
-
Rear Mark: Red dot
-
Installation Hole: 22mm
-
Maximum Panel Thickness: 0.24 inches
Choose the Bluewater 9059-1113-4 for a clearly illuminated, metal-bodied off/on push button switch designed for organized dashboard and panel installations.
