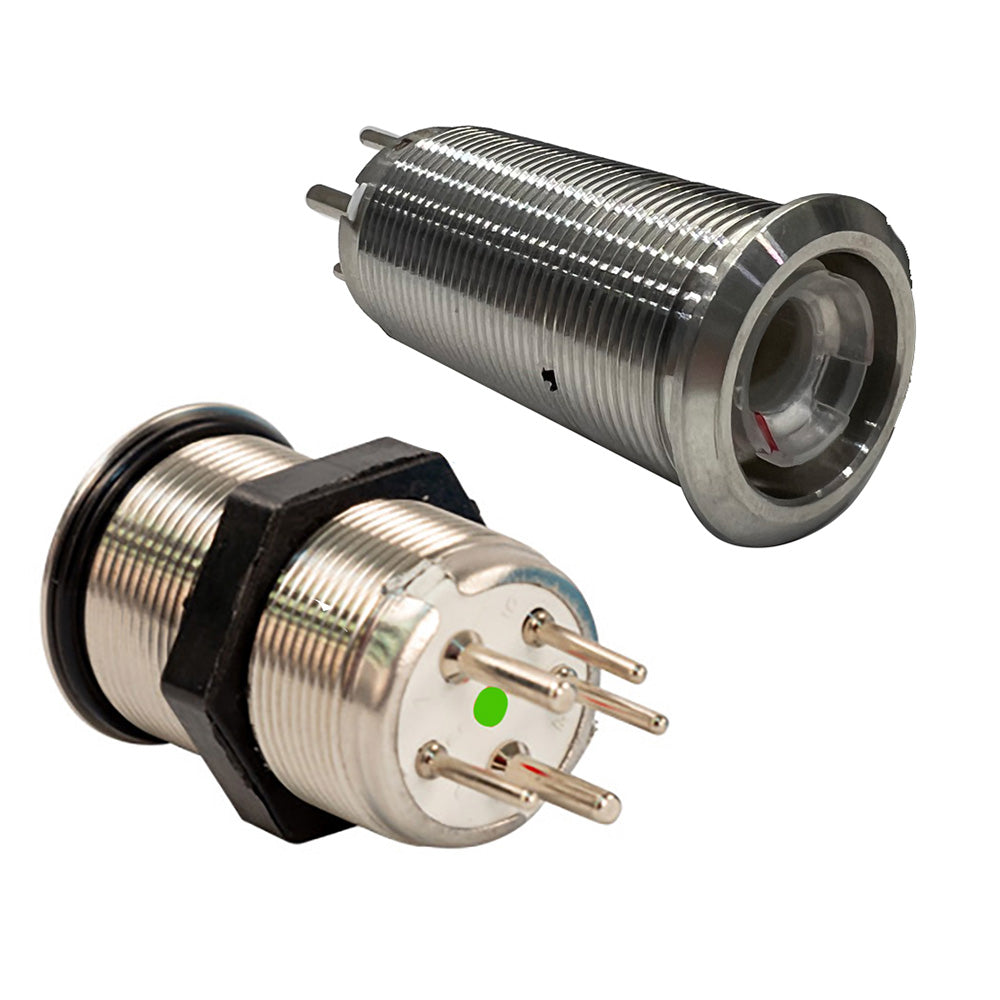

22mm Inrush Push Button Switch Momentary - Blue/Red LED - Switch Body Only
The switch is the core of your control system. Built marine tough with inrush protection and waterproof sealing for reliable performance.
Upgrade your marine switch panel with the 9059 Series 22mm Inrush Protection Switch. Built for heavy-duty marine applications, this switch handles high surge currents with ease - perfect for pumps, motors, and other demanding onboard equipment.
Built for Harsh Marine Conditions:
- Encased in corrosion-resistant SS316 stainless steel
- Rated IP69K waterproof with Bluewaters proprietary Deutsch-style connectors
- Resistant to salt spray, heat, vibration, and shock
Easy to See and Control:
- Blue LED backlighting for night visibility
- LED shifts to bright red when activeinstant confirmation of pump or device status
- Fully detachable actuator for customization of style and function
Reliable Power Handling:
- Rated for 20 amps on a single channel
- Rated for 10 amps per channel in dual-channel use
- Impact-resistant and designed for long-lasting performance
Why Choose the 9059 Switch for Your Marine Switch Panel
This inrush protection switch combines rugged durability with smart design. It installs easily, provides dependable control, and ensures your marine switch panel remains reliable in all conditions.
When you are on the water, trust the 9059 Series to keep your critical systems running smoothly and safely.
Specifications:
- Switch Rating: 20A/12-24VDC
- Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
- Mechanical Life: 50,000 Cycles
- Electrical Life: 10,000 Cycles
- Dimensions: View Dimensional Drawings
- Material: Nickel Plated Brass/ Stainless Steel
- LED Color: Blue/Green/Red
Installation:
Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.
Bluewater 9059-2113 22mm Inrush Momentary Push Button Switch provides dependable control for marine switch panels, pumps, motors, and other demanding onboard equipment. Designed for heavy-duty marine applications, this switch combines inrush protection, waterproof sealing, durable construction, and LED status indication in a switch body-only configuration.
Built for harsh marine conditions, the 9059 Series switch features corrosion-resistant SS316 stainless steel and nickel-plated brass construction. Its IP69K waterproof rating and Deutsch-style connectors help support reliable operation in environments exposed to salt spray, heat, vibration, and shock. Inrush protection allows the switch to manage high surge currents for suitable marine electrical applications.
The blue LED backlighting improves visibility in low-light conditions, while the LED changes to bright red when the switch is active, providing at-a-glance confirmation of pump or device status. The detachable actuator supports customization of style and function. With single-channel and dual-channel power ratings, this Bluewater momentary push button switch is suited for marine control panels that require durable, easy-to-monitor switching.
Key Features
-
Feature: 22mm momentary push button switch designed for marine switch panels and onboard equipment control.
-
Feature: Inrush protection supports applications with high surge currents, including pumps and motors.
-
Feature: SS316 stainless steel and nickel-plated brass construction resist demanding marine conditions.
-
Feature: IP69K waterproof rating with Deutsch-style connectors for sealed installation applications.
-
Feature: Blue LED backlighting changes to bright red when active for clear status indication.
-
Feature: Detachable actuator allows customization of switch style and function.
Product Details
-
Brand: Bluewater
-
Part Number: 9059-2113
-
Switch Rating: 20 amps, 12–24 VDC
-
Power Handling: 20 amps on a single channel; 10 amps per channel in dual-channel use
-
Switch Contacts: 1 NO, 1 NC; 2 NO, 2 NC
-
Mechanical Life: 50,000 cycles
-
Electrical Life: 10,000 cycles
-
Material: Nickel-plated brass and stainless steel
-
LED Colors: Blue, green, and red
-
Installation: Requires a 22mm hole in material up to 6mm thick; connect the three button contacts and two LED contacts.
-
Configuration: Switch body only
Choose the Bluewater 9059-2113 for durable, visible, and dependable control in marine switch panel applications.
SEO Meta Description
Bluewater 9059-2113 22mm marine momentary push button switch with inrush protection, waterproof sealing, and blue/red LED status indication.
|
