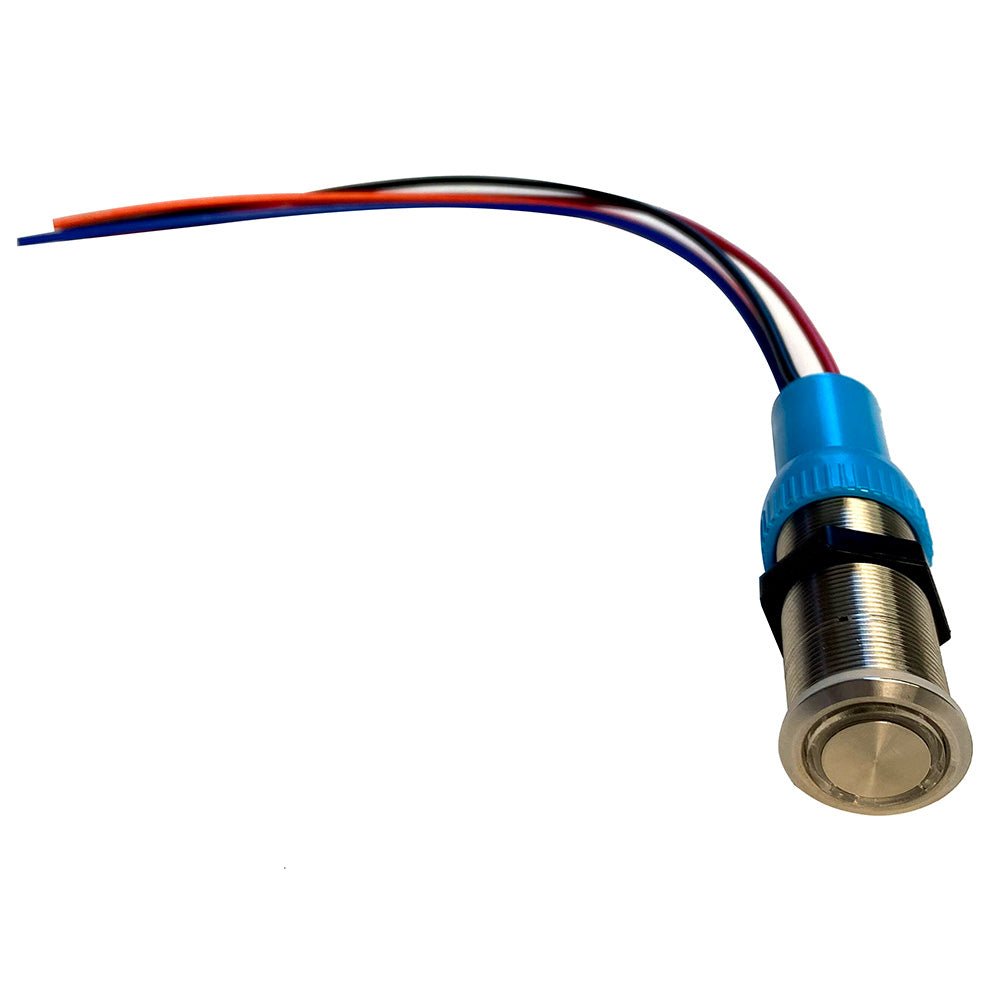

Bluewater 9059-2123-1 22mm Push Button Switch with Double Momentary Contact and Blue, Green, Red LED

22mm Push Button Switch - Off/(On)/(On) Double Momentary Contact - Blue/Green/Red LED - 1 Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an Off-(On)-(On) double momentary contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 1 ft. lead

Specifications:

• Function: Off-(On)-(On) (double momentary contact)
• Off/1st On: Blue/Green
• 2nd On: Red

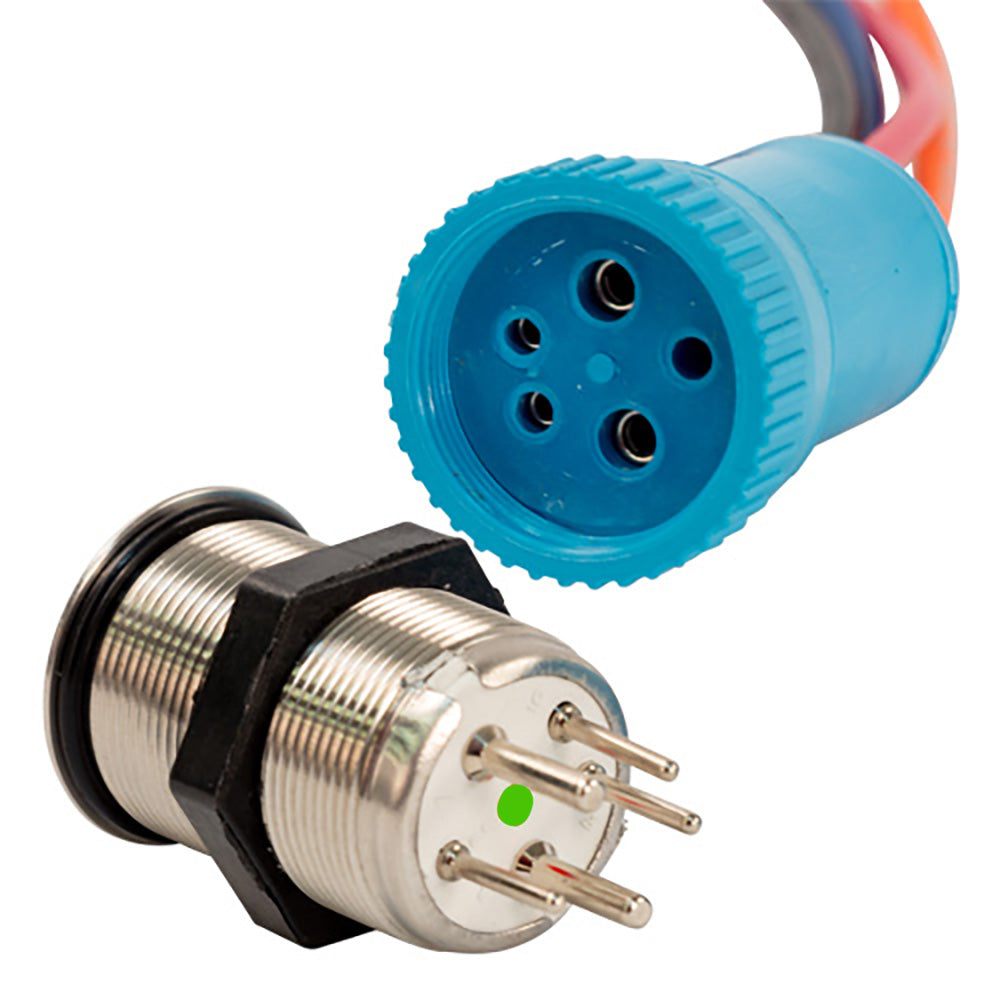

• Rear Mark Page: Green dot
• Switch Rating: 20A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation:

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

The Bluewater 9059-2123-1 22mm Push Button Switch adds a clean, modern control point to dashboards, panels, and other applications requiring an Off-(On)-(On) double momentary contact. Its stainless steel construction, color-changing LED illumination, and included gasket provide functional visibility and a durable installation solution for users building or upgrading control panels.

This momentary push button switch uses blue or green illumination in the Off/first On position and changes to red in the second On position, helping users identify the switch state at a glance. The stainless steel body and gasket provide an IP69K waterproof rating, while the 1-foot lead supports straightforward wiring. The switch is rated for 20 amps at 12 or 24 volts DC and is designed for repeated operation in demanding control applications.

Installation requires drilling a 22mm hole through material up to 6mm thick. Connect the three color-coded button contacts, then connect the two LED contacts. This configuration makes the Bluewater switch suitable for dashboard controls, auxiliary equipment panels, and custom electrical installations where a compact illuminated momentary switch is needed.

Key Features:

• Feature: Off-(On)-(On) double momentary contact supports two momentary activation positions.
• Feature: Blue/green illumination in the Off/first On position and red illumination in the second On position improves switch-state visibility.
• Feature: Stainless steel construction provides a durable metal switch body.
• Feature: IP69K waterproof rating supports use where protection from water exposure is required.
• Feature: 1-foot lead and color-coded contacts help simplify installation.
• Feature: Rated for 20A at 12 or 24VDC, with a mechanical life of 50,000 cycles and electrical life of 10,000 cycles.

Product Details:

• Brand: Bluewater
• Part Number: 9059-2123-1
• Switch Type: 22mm illuminated push button switch
• Function: Off-(On)-(On), double momentary contact
• LED Colors: Blue/green for Off/first On; red for second On
• Material: Stainless steel
• Switch Rating: 20A at 12 or 24VDC
• Lead Length: 1 foot
• Waterproof Rating: IP69K
• Installation: Requires a 22mm hole in material up to 6mm thick
• Rear Mark: Green dot
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Choose the Bluewater 9059-2123-1 for a compact, illuminated 22mm push button switch with clearly differentiated LED colors and double momentary contact operation.
