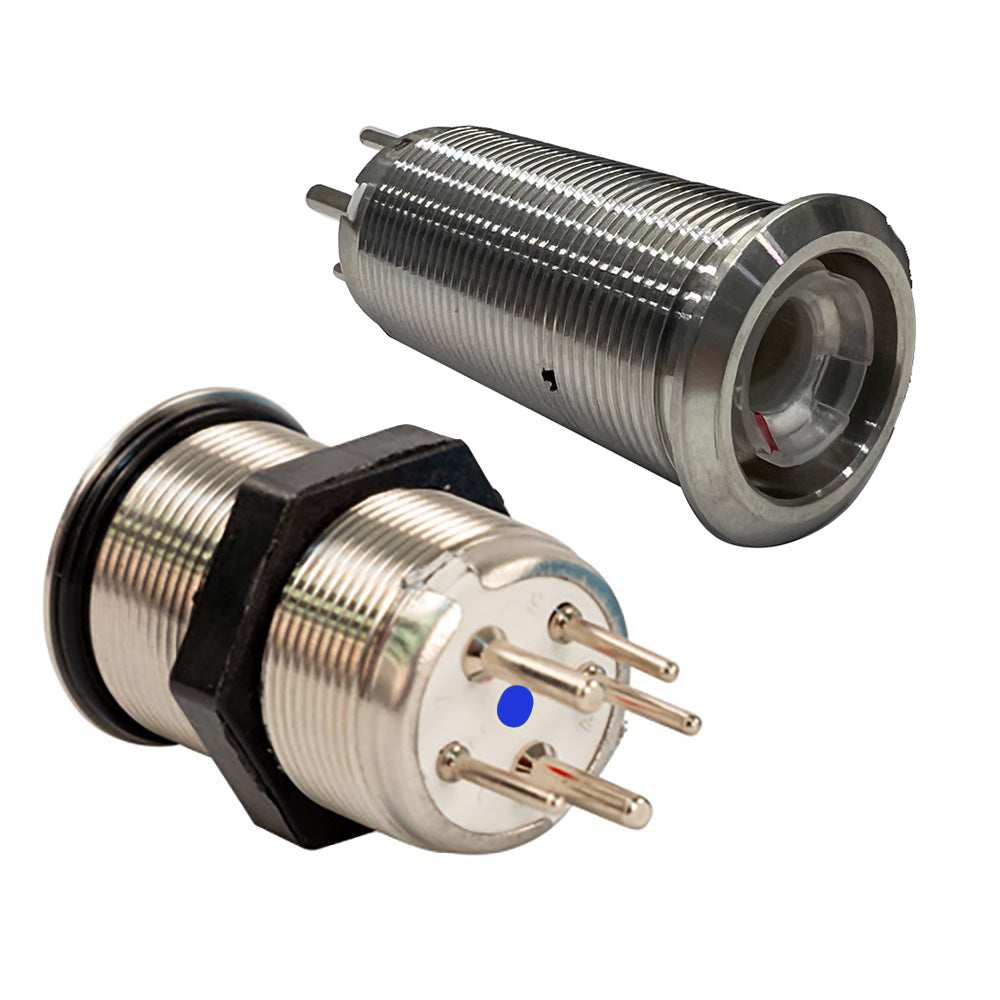

22mm Inrush Push Button Switch Off/On/On - Blue/Green/Red LED - Switch Body Only
The switch is the core of your control system. Built marine tough with inrush protection and waterproof sealing for reliable performance.
Upgrade your marine switch panel with the 9059 Series 22mm Inrush Protection Switch. Built for heavy-duty marine applications, this switch handles high surge currents with ease - perfect for pumps, motors, and other demanding onboard equipment.
Built for Harsh Marine Conditions:
- Encased in corrosion-resistant SS316 stainless steel
- Rated IP69K waterproof with Bluewaters proprietary Deutsch-style connectors
- Resistant to salt spray, heat, vibration, and shock
Easy to See and Control:
- Blue LED backlighting for night visibility
- LED shifts to bright red when activeinstant confirmation of pump or device status
- Fully detachable actuator for customization of style and function
Reliable Power Handling:
- Rated for 20 amps on a single channel
- Rated for 10 amps per channel in dual-channel use
- Impact-resistant and designed for long-lasting performance
Why Choose the 9059 Switch for Your Marine Switch Panel
This inrush protection switch combines rugged durability with smart design. It installs easily, provides dependable control, and ensures your marine switch panel remains reliable in all conditions.
When you are on the water, trust the 9059 Series to keep your critical systems running smoothly and safely.
Specifications:
- Switch Rating: 20A/12-24VDC
- Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
- Mechanical Life: 50,000 Cycles
- Electrical Life: 10,000 Cycles
- Dimensions: View Dimensional Drawings
- Material: Nickel Plated Brass/ Stainless Steel
- LED Color: Blue/Green/Red
Installation:
Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.
Bluewater 9059-3113 22mm Inrush Push Button Switch provides dependable control for demanding marine electrical systems. Designed for pumps, motors, and other onboard equipment, this Off/On/On switch combines inrush protection, high-current handling, waterproof construction, and clear LED status indication in a durable switch body.
Built for harsh marine conditions, the 9059 Series switch features corrosion-resistant SS316 stainless steel construction and an IP69K waterproof rating. Bluewater proprietary Deutsch-style connectors help support reliable installation, while resistance to salt spray, heat, vibration, and shock makes this switch suitable for marine switch panels exposed to challenging operating environments. The blue LED backlighting improves visibility at night, and the LED changes to bright red when the connected device is active, providing quick visual confirmation of operating status.
The Bluewater 9059-3113 is rated for 20 amps at 12–24VDC on a single channel and 10 amps per channel in dual-channel use. Its detachable actuator allows customization of style and function, while the impact-resistant construction is designed for long-lasting service. Installation requires a 22mm hole in material up to 6mm thick. Connect the three color-coded button contacts, then connect the two LED contacts for illumination and status indication.
This switch body is a practical choice for upgrading or building a marine switch panel where reliable control, visible feedback, and resistance to demanding conditions are important. Choose the Bluewater 9059-3113 for durable control of essential onboard equipment.
Key Features:
-
Inrush protection: Helps handle high surge currents from pumps, motors, and other demanding marine equipment.
-
Marine-ready construction: SS316 stainless steel and nickel-plated brass materials provide durable switch construction.
-
Waterproof design: IP69K rating supports use in demanding marine environments.
-
LED status indication: Blue backlighting improves visibility, while bright red illumination indicates an active device.
-
Flexible switching: Off/On/On operation with single- and dual-channel contact configurations.
-
Detachable actuator: Allows customization of switch style and function.
Product Details:
-
Brand: Bluewater
-
Part number: 9059-3113
-
Product type: 22mm inrush push button switch body
-
Switch function: Off/On/On
-
Switch rating: 20A at 12–24VDC
-
Switch contacts: 1 NO, 1 NC; 2 NO, 2 NC
-
Mechanical life: 50,000 cycles
-
Electrical life: 10,000 cycles
-
Material: Nickel-plated brass and stainless steel
-
LED colors: Blue, green, and red
-
Installation: Requires a 22mm mounting hole in material up to 6mm thick
-
Included: Switch body only
Upgrade your marine switch panel with the Bluewater 9059-3113 for durable, visible, and reliable control of onboard electrical systems.
