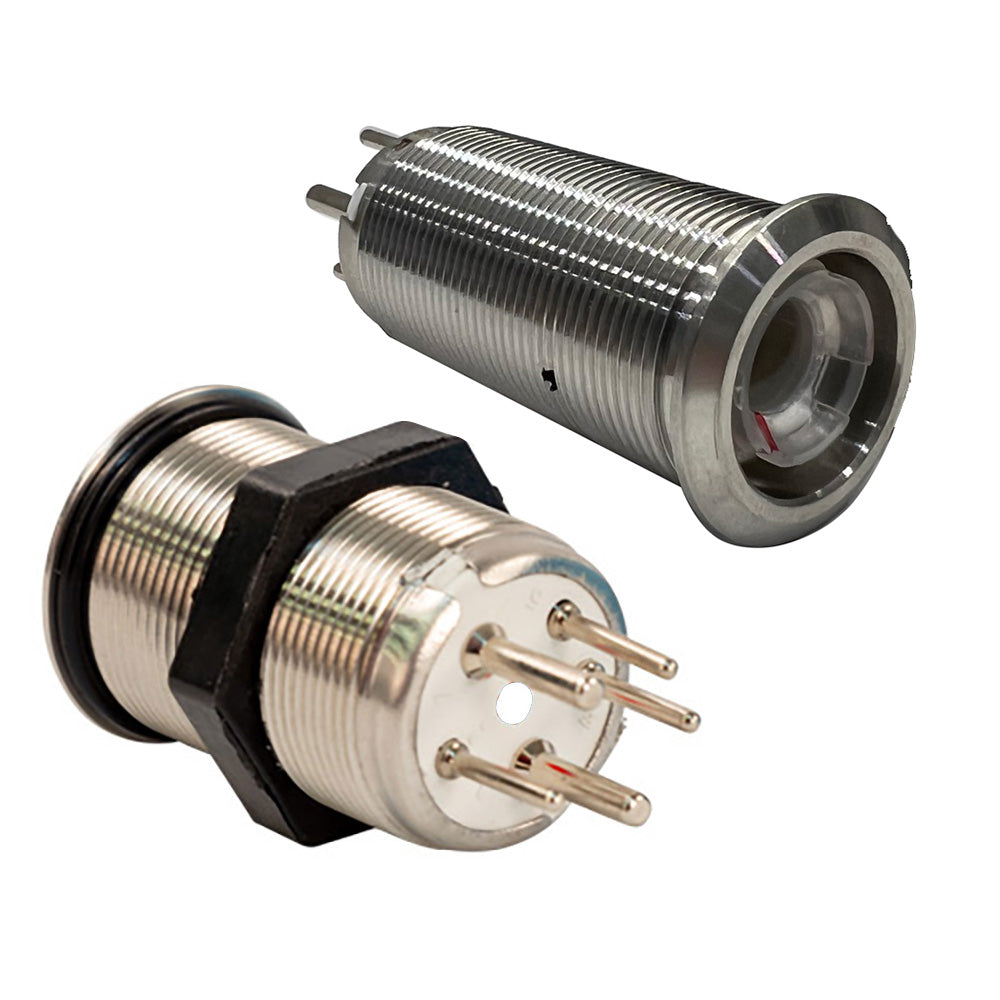

22mm Inrush Push Button Switch Nav/Anchor Off/On/On - Blue/Green/Red LED - Switch Body Only
The switch is the core of your control system. Built marine tough with inrush protection and waterproof sealing for reliable performance.
Upgrade your marine switch panel with the 9059 Series 22mm Inrush Protection Switch. Built for heavy-duty marine applications, this switch handles high surge currents with ease - perfect for pumps, motors, and other demanding onboard equipment.
Built for Harsh Marine Conditions:
- Encased in corrosion-resistant SS316 stainless steel
- Rated IP69K waterproof with Bluewaters proprietary Deutsch-style connectors
- Resistant to salt spray, heat, vibration, and shock
Easy to See and Control:
- Blue LED backlighting for night visibility
- LED shifts to bright red when activeinstant confirmation of pump or device status
- Fully detachable actuator for customization of style and function
Reliable Power Handling:
- Rated for 20 amps on a single channel
- Rated for 10 amps per channel in dual-channel use
- Impact-resistant and designed for long-lasting performance
Why Choose the 9059 Switch for Your Marine Switch Panel
This inrush protection switch combines rugged durability with smart design. It installs easily, provides dependable control, and ensures your marine switch panel remains reliable in all conditions.
When you are on the water, trust the 9059 Series to keep your critical systems running smoothly and safely.
Specifications:
- Switch Rating: 20A/12-24VDC
- Switch Contacts: 1 NO, 1 NC | 2 NO, 2 NC
- Mechanical Life: 50,000 Cycles
- Electrical Life: 10,000 Cycles
- Dimensions: View Dimensional Drawings
- Material: Nickel Plated Brass/ Stainless Steel
- LED Color: Blue/Green/Red
Installation:
Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color coded for your safety and convenience). Lastly connect the 2 contacts for the LED.
Take dependable control of demanding onboard equipment with the Bluewater 9059-3114 22mm Inrush Push Button Switch. Designed for marine switch panels, this heavy-duty switch provides inrush protection for pumps, motors, and other equipment exposed to high surge currents. Its durable construction, waterproof sealing, and multi-color LED indication make it a practical choice for marine electrical control applications.
Built for harsh marine conditions, the switch features corrosion-resistant SS316 stainless steel and nickel-plated brass construction. Its IP69K waterproof rating and Deutsch-style connectors help support reliable operation in environments affected by salt spray, heat, vibration, and shock. The blue LED backlighting improves visibility in low-light conditions, while the indicator shifts to bright red when active for quick confirmation of equipment status. Blue, green, and red LED color options support flexible panel design and control identification.
The Bluewater 9059 Series switch is rated for 20 amps at 12–24 volts DC on a single channel and 10 amps per channel in dual-channel use. A detachable actuator allows customization of style and function, while the impact-resistant design is built for repeated operation. For installation, drill a 22-millimeter hole in material up to 6 millimeters thick, connect the three color-coded button contacts, and then connect the two LED contacts. This listing includes the switch body only.
Key Features:
-
Inrush protection: Helps manage high surge currents for pumps, motors, and other demanding onboard equipment.
-
Marine-ready construction: SS316 stainless steel and nickel-plated brass provide durable corrosion-resistant materials.
-
IP69K waterproof rating: Supports use in demanding marine switch panel environments.
-
LED status indication: Blue backlighting improves visibility, while the active indicator shifts to bright red.
-
Flexible power handling: Rated for 20 amps at 12–24 volts DC on a single channel or 10 amps per channel in dual-channel use.
-
Detachable actuator: Allows customization of switch style and function.
Product Details:
-
Brand: Bluewater
-
Part number: 9059-3114
-
Switch type: 22mm inrush push button switch
-
Function: Nav/Anchor Off/On/On
-
Switch rating: 20 amps, 12–24 volts DC
-
Switch contacts: 1 NO, 1 NC; 2 NO, 2 NC
-
Mechanical life: 50,000 cycles
-
Electrical life: 10,000 cycles
-
Materials: Nickel-plated brass and stainless steel
-
LED colors: Blue, green, and red
-
Installation: Requires a 22-millimeter hole in material up to 6 millimeters thick
-
Included: Switch body only
Choose the Bluewater 9059-3114 for rugged, clearly visible control in a marine switch panel installation.
