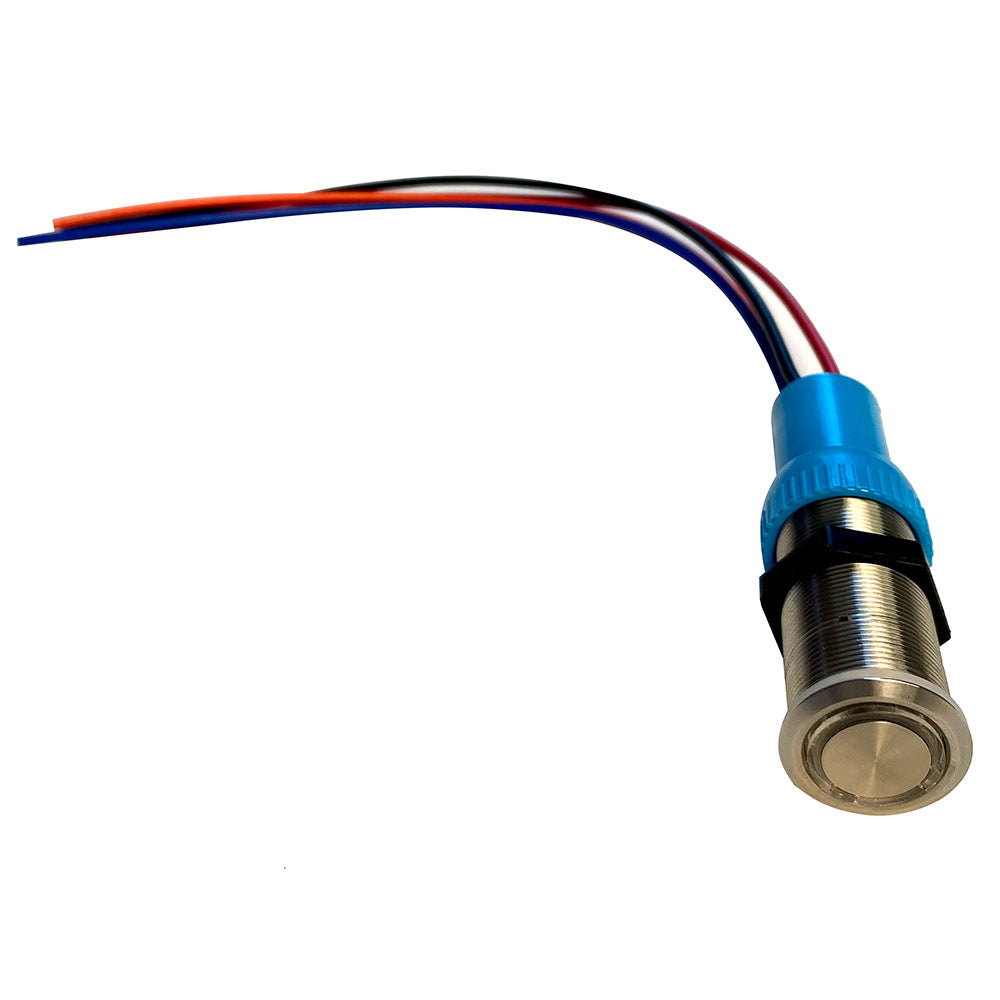

Bluewater 9059-3114-4 22mm Push Button Switch, Nav/Anc Contact, Blue/Green/Red LED, 4-Foot Lead

22mm Push Button Switch - Nav/Anc Contact - Blue/Green/Red LED - 4 Lead

This stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has a Nav/Anc contact.

The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.

Features:

• 4 ft. lead

Specifications:

• Function: Nav/Anc
• Off/1st On: Blue/Green
• 2nd On: Red
• Rear Mark Page: White dot
• Switch Rating: 20A/12 24VDC
• Material: Stainless steel
• Mechanical Life: 50,000 cycles
• Electrical Life: 10,000 cycles

Installation

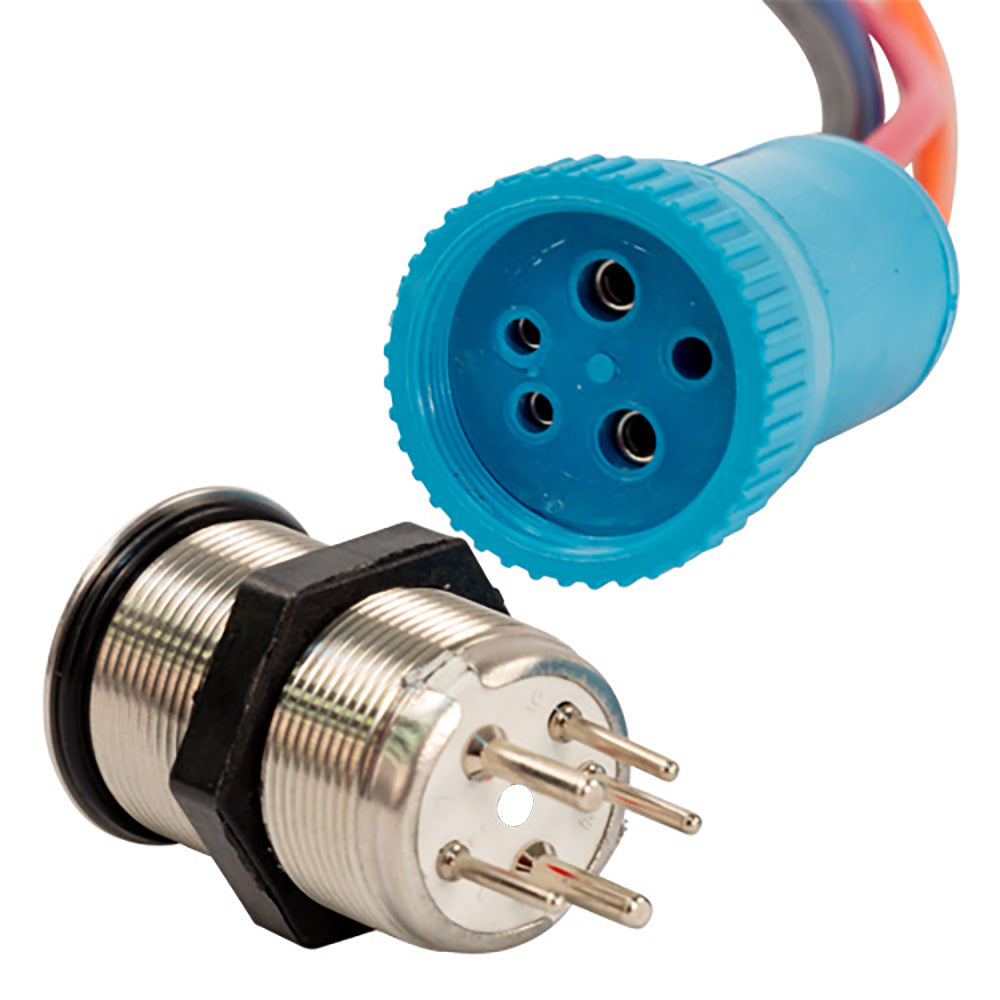

Drill a 22mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED.

Bluewater 9059-3114-4 22mm Push Button Switch adds a clean, modern control solution to marine dashboards and other applications requiring a Nav/Anc contact. The stainless steel-plated metal button combines durable construction with illuminated operation, helping users identify switch status in low-light conditions.

Designed for installation through a 22mm opening in material up to 6mm thick, this OFF/ON/ON push button switch uses blue and green illumination for the off and first-on positions, then changes to red when the second-on position is selected. The included gasket and body design provide an IP69K waterproof rating, making the switch suitable for applications where protection from water and washdown conditions is important.

The Bluewater switch includes a 4-foot lead and color-coded connections for the button and LED, supporting a more organized installation. Its Nav/Anc function, stainless steel material, and 20-amp rating at 12 or 24 volts DC make it a practical choice for marine control panels and similar low-voltage electrical systems.

Key Features:

• Nav/Anc contact: Provides OFF/ON/ON switching for navigation and anchor lighting control.
• Blue/green/red LED illumination: Uses blue and green for off and first-on positions, with red indicating the second-on position.
• IP69K waterproof rating: The body design and included gasket help protect the switch in demanding wet-use environments.
• Stainless steel construction: Provides a durable metal switch surface for dashboards and control panels.
• 4-foot lead: Provides extended wiring reach for installation.
• Long service life: Rated for 50,000 mechanical cycles and 10,000 electrical cycles.

Product Details:

• Brand: Bluewater
• Part number: 9059-3114-4
• Switch type: 22mm push button, OFF/ON/ON
• Function: Nav/Anc
• Off/1st On illumination: Blue/Green
• 2nd On illumination: Red
• Rear mark: White dot
• Switch rating: 20A at 12 or 24V DC
• Material: Stainless steel
• Lead length: 4 feet
• Installation opening: 22mm hole
• Maximum panel thickness: 6mm
• Mechanical life: 50,000 cycles
• Electrical life: 10,000 cycles

Choose the Bluewater 9059-3114-4 for illuminated Nav/Anc switching with durable stainless steel construction and a straightforward 22mm installation.
