BPS Marine BPS-1 1-Transducer Ultrasonic Antifouling System for Boats up to 20ft

BPS-1 1-Transducer Ultrasonic Antifouling System - 12VDC

The BPS-1 is a single transducer system that can add antifouling protection to hulls, drives, rudders, stabilizers, and more. This single system can provide ultrasonic antifouling protection for hulls up to 20ft in length or can be combined with additional systems for larger vessels. The BPS-1 can also be tasked with protecting drives and rudders.

The BPS-1 Package Includes:

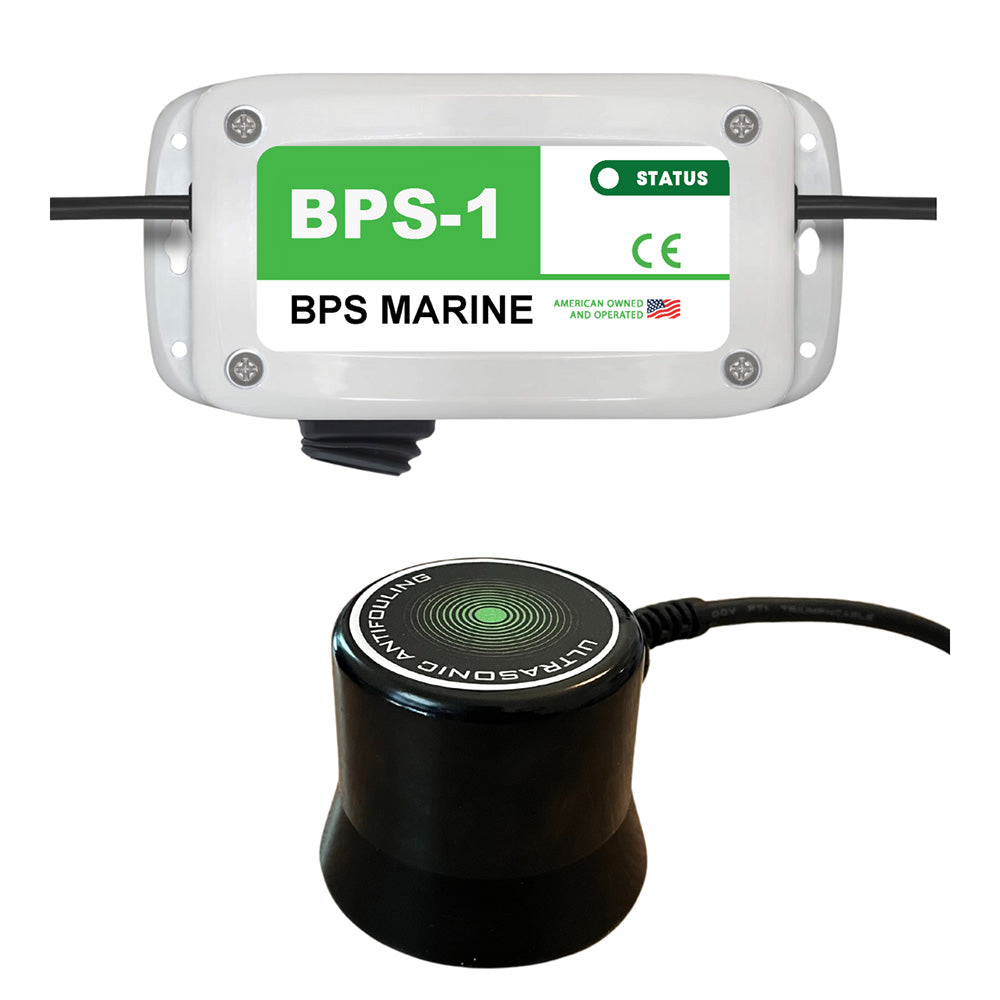

• 1x BPS-1 Control Module with Integrated Power Cable
• 1x Submersible Ultrasonic Transducers with 15ft of Cable
• 1x Epoxy Kit
• 1x Printed Installation and Operation Manual

Specifications:

• Voltage: 12V or 24V DC
• Average Power Draw: 0.25Ah
• Transducer Strength: 60W
• Cable Length: 15ft per transducer
• Frequency: Multi-frequency ultrasonic sweep algorithm (20kHz-42kHz)

Installation Overview:

• No Thru-Hulls: The transducers are installed directly on top of your hull surface using the provided epoxy.
• Install Signal Cable: Each transducer has 15ft of connected signal cable. This ensures an easy installation from the transducer to the controller.
• Mounting the Controller: The BPS-1 Controller runs off of your boats existing house battery. It is a simple 2-wire connection the the battery bank or distribution panel.
• Enjoy Worry-Free Boating: Thats it! Your BPS system is done! Let our advanced antifouling protection do its job. Each system is programmed with a multi-frequency sweeping algorithm to ensure that your boat has the best antifouling protection on the market.

How the Technology Works:

• The Mechanism: The system emits high-frequency ultrasonic waves through the hull drives, creating a microscopic barrier of resonance.
• Targeting the Root Cause: These ultrasound waves repel biofouling from attaching to your hull before they ever have the chance to attach.
• Eco-Friendly: 100% chemical-free. It does not leach pollutants into the water, making it safe for marinas with strict environmental regulations.
• Marine Life Safe: The frequencies used are outside the hearing range of marine mammals and humans.

Benefits:

• Fuel Efficiency: A clean hull creates less drag. Maintaining hull smoothness ensures you get the best possible MPG and top speed.
• Reduced Maintenance Costs: Significantly extends the life of your bottom paint and reduces the frequency of expensive haul-outs.
• Diver Savings: Reduces the need for monthly hull cleaning services.
• Hard-to-Reach Protection: Unlike paint, ultrasonic waves resonate through complex parts that are difficult to paint and clean, such as stern drives, sea strainers, and rudders.
• Fit Forget: Once installed, the system runs automatically with zero scheduled maintenance required.

The BPS Marine BPS-1 1-Transducer Ultrasonic Antifouling System offers an innovative, eco-friendly solution to keep your boat's hull clean and free from biofouling. Designed for vessels up to 20 feet in length, this system utilizes ultrasonic technology to create a microscopic resonance barrier that prevents algae, barnacles, and other marine growth from attaching to the hull, drive, or rudders. Installation is straightforward, with the transducer mounted directly on the hull surface using provided epoxy, eliminating the need for through-hull fittings. The control module connects easily to your boat’s 12V or 24V DC power supply with simple wiring, making setup quick and hassle-free. The system features a multi-frequency ultrasonic sweep algorithm operating between 20 kHz to 42 kHz, ensuring optimal antifouling protection across a wide range of marine environments. Once installed, the BPS-1 runs automatically, requiring no additional maintenance, allowing boat owners to enjoy worry-free boating. The ultrasonic waves are environmentally safe, emitting no chemicals or leaching pollutants into the water, making it suitable for marinas with strict environmental regulations. Additionally, the frequencies are outside the hearing range of marine mammals and humans, providing peace of mind during operation. Benefits of the BPS-1 include improved fuel efficiency thanks to a cleaner, smoother hull, reduced maintenance costs by extending the life of bottom paint, and less need for costly hull cleanings or diver services. Its ultrasonic technology penetrates complex and hard-to-reach parts such as stern drives, sea strainers, and rudders, where traditional antifouling measures may falter. This product is built for durability and ease of use, providing reliable antifouling protection with minimal effort. Whether protecting a single hull or multiple components, the BPS-1 system ensures your vessel remains in top condition, enhancing performance and longevity while supporting environmentally responsible boating.

Features:

• Power: Operates on 12V or 24V DC power supply

• Transducer Power: 60W ultrasonic output

• Cable Length: 15 feet per transducer for flexible installation

• Frequency Range: Multi-frequency ultrasonic sweep between 20kHz and 42kHz

• Installation: No thru-hulls required; mounts directly on hull with epoxy

• Automatic Operation: Runs seamlessly with zero maintenance

• Eco-Friendly: Chemical-free ultrasonic technology safe for marine environment

• Marine Life Safe: Frequencies outside the hearing range of marine mammals and humans
