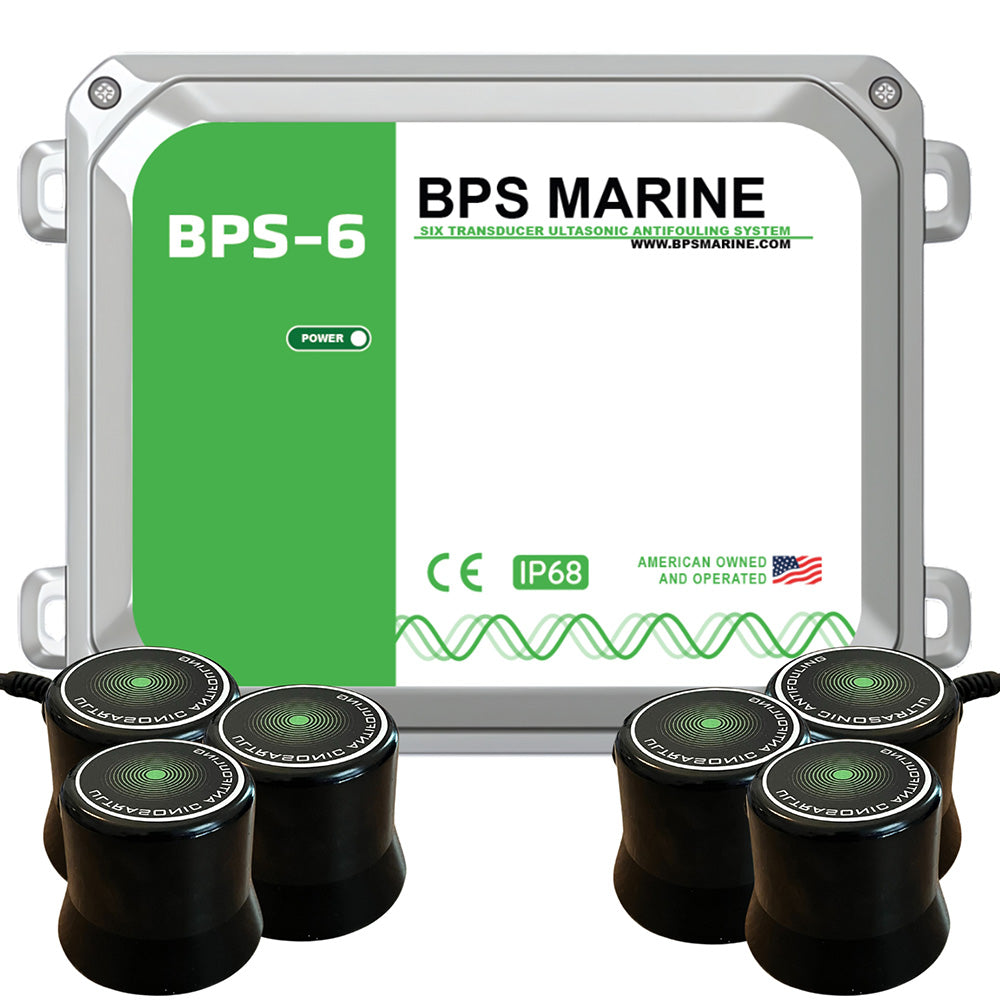

BPS Marine BPS-6 6-Transducer Ultrasonic Antifouling System - 12VDC

BPS-6 6-Transducer Ultrasonic Antifouling System - 12VDC

The BPS-6 is a six-transducer system that can add antifouling protection to hulls, drives, rudders, stabilizers, and more. This single system can provide ultrasonic antifouling protection for hulls up to 65ft in length or can be combined with additional systems for larger vessels. The BPS-6 is also the perfect solution for vessels under 52 with pods or stern drives to have one system covering the entire vessel.

The BPS-6 Package Includes:

• 1x BPS-6 Control Module with Integrated Power Cable
• 6x Submersible Ultrasonic Transducers with 15ft of Cable
• 3x Additional 15ft Extension Cables
• 2x Epoxy Kits
• 1x Printed Installation and Operation Manual

Specifications:

• Voltage: 12V or 24V DC
• Average Power Draw: 1.5Ah
• Transducer Strength: 60W
• Cable Length: 15ft per transducer
• Frequency: Multi-frequency ultrasonic sweep algorithm (20kHz-42kHz)

Installation Overview:

• No Thru-Hulls: The transducers are installed directly on top of your hull surface using the provided epoxy.
• Install Signal Cable: Each transducer has 15ft of connected signal cable. This ensures an easy installation from the transducer to the controller.
• Mounting the Controller: The BPS-1 Controller runs off of your boats existing house battery. It is a simple 2-wire connection the the battery bank or distribution panel.
• Enjoy Worry-Free Boating: Thats it! Your BPS system is done! Let our advanced antifouling protection do its job. Each system is programmed with a multi-frequency sweeping algorithm to ensure that your boat has the best antifouling protection on the market.

How the Technology Works:

• The Mechanism: The system emits high-frequency ultrasonic waves through the hull drives, creating a microscopic barrier of resonance.
• Targeting the Root Cause: These ultrasound waves repel biofouling from attaching to your hull before they ever have the chance to attach.
• Eco-Friendly: 100% chemical-free. It does not leach pollutants into the water, making it safe for marinas with strict environmental regulations.
• Marine Life Safe: The frequencies used are outside the hearing range of marine mammals and humans.

Benefits:

• Fuel Efficiency: A clean hull creates less drag. Maintaining hull smoothness ensures you get the best possible MPG and top speed.
• Reduced Maintenance Costs: Significantly extends the life of your bottom paint and reduces the frequency of expensive haul-outs.
• Diver Savings: Reduces the need for monthly hull cleaning services.
• Hard-to-Reach Protection: Unlike paint, ultrasonic waves resonate through complex parts that are difficult to paint and clean, such as stern drives, sea strainers, and rudders.
• Fit Forget: Once installed, the system runs automatically with zero scheduled maintenance required.

The BPS Marine BPS-6 is a comprehensive ultrasonic antifouling system designed to protect hulls, drives, rudders, and stabilizers for vessels up to 65 feet in length. Featuring six high-power transducers, this system effectively prevents biofouling by emitting multi-frequency ultrasonic waves that create a microscopic resonance barrier, deterring marine growth before it attaches. Its installation is straightforward, with transducers mounted directly onto the hull surface using supplied epoxy, eliminating the need for thru-hulls and making it suitable for a variety of vessel configurations. The control module, powered by your boat’s existing 12V or 24V DC system, manages the ultrasonic sweep and ensures continuous, maintenance-free operation once set up. With 15-foot cables connecting each transducer to the controller, installation can be completed quickly, allowing boat owners to enjoy worry-free antifouling protection.

The technology behind the BPS-6 is both eco-friendly and safe for marine life, operating within frequencies outside the hearing range of humans and marine mammals. It does not leach chemicals into the water, making it compliant with strict environmental standards, especially in marinas. The ultrasonic waves effectively target biofouling at its source, reducing drag and improving fuel efficiency by maintaining a clean, smooth hull. This not only enhances top speed but also reduces maintenance costs by extending the lifespan of bottom paint and minimizing hull cleaning efforts. The system’s ability to resonate through complex parts like stern drives and rudders means it provides comprehensive coverage, including areas that are difficult to paint or reach with traditional methods.

Once installed, the BPS-6 operates automatically, requiring no scheduled maintenance, making it an ideal, hassle-free solution for boat owners seeking reliable antifouling protection. Its multi-frequency sweeping algorithm ensures the most effective biofouling prevention available, giving you peace of mind and allowing you to focus on enjoying your time on the water. Whether for a small vessel or a larger yacht, the BPS Marine BPS-6 offers an innovative, eco-friendly alternative to traditional antifouling paints and treatments, helping you save money, protect the environment, and extend the life of your boat’s hull.

Features:

• Six ultrasonic transducers with 15ft cables for comprehensive hull coverage

• Easy installation with direct hull mounting using epoxy, no thru-hulls required

• Compatible with 12V or 24V DC power sources, with simple two-wire connection

• Multi-frequency ultrasonic sweep (20kHz-42kHz) for optimal biofouling prevention

• Eco-friendly, chemical-free operation safe for marine life and environmentally compliant
