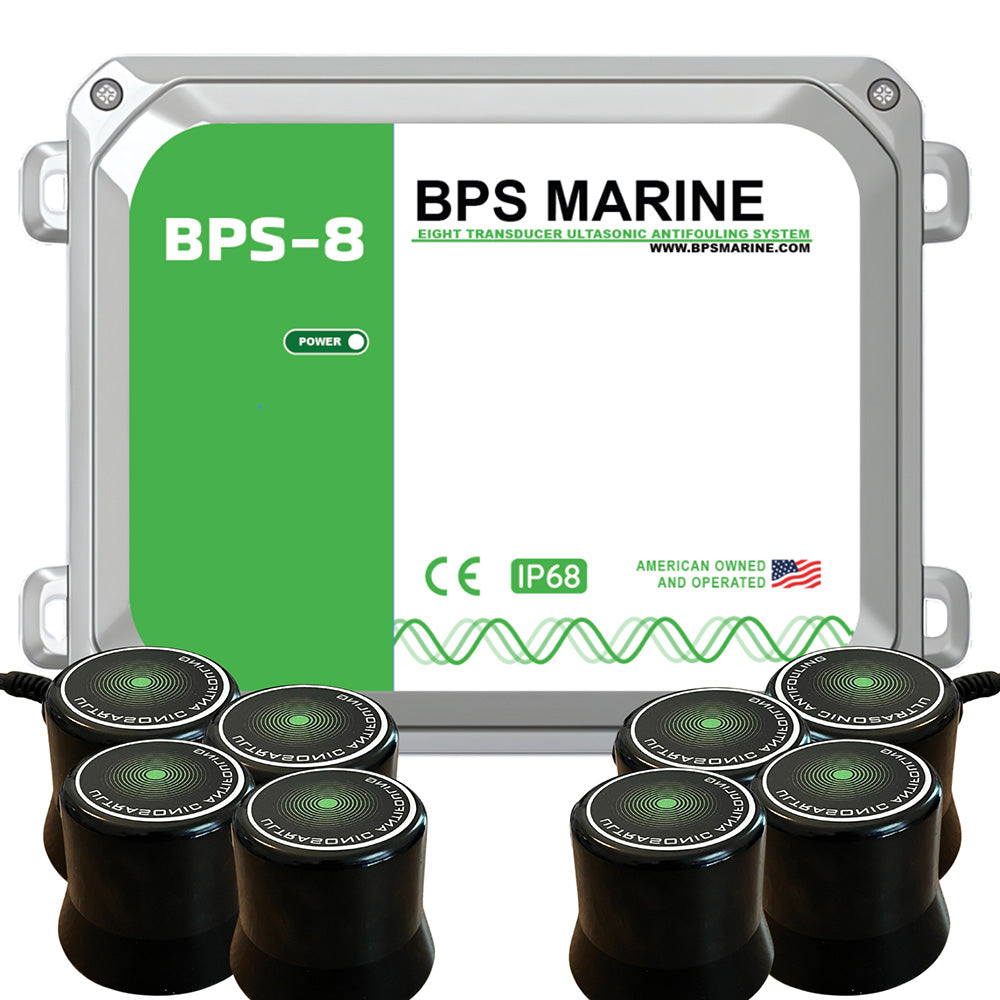

BPS Marine BPS-8 8-Transducer Ultrasonic Antifouling System - 12VDC

BPS-8 8-Transducer Ultrasonic Antifouling System - 12VDC

The BPS-8 is an eight-transducer system that can add antifouling protection to hulls, drives, rudders, stabilizers, and more. This single system can provide ultrasonic antifouling protection for hulls up to 80ft in length or can be combined with additional systems for larger vessels. The BPS-8 is also the perfect solution for vessels under 52 with inboards or sail drives to have one system covering the entire vessel.

The BPS-8 Package Includes:

• 1x BPS-8 Control Module with Integrated Power Cable
• 8x Submersible Ultrasonic Transducers with 15ft of Cable
• 4x Additional 15ft Extension Cables
• 2x Epoxy Kits
• 1x Printed Installation and Operation Manual

Specifications:

• Voltage: 12V or 24V DC
• Average Power Draw: 2Ah
• Transducer Strength: 60W
• Cable Length: 15ft per transducer
• Frequency: Multi-frequency ultrasonic sweep algorithm (20kHz-42kHz)

Installation Overview:

• No Thru-Hulls: The transducers are installed directly on top of your hull surface using the provided epoxy.
• Install Signal Cable: Each transducer has 15ft of connected signal cable. This ensures an easy installation from the transducer to the controller.
• Mounting the Controller: The BPS-1 Controller runs off of your boats existing house battery. It is a simple 2-wire connection the the battery bank or distribution panel.
• Enjoy Worry-Free Boating: Thats it! Your BPS system is done! Let our advanced antifouling protection do its job. Each system is programmed with a multi-frequency sweeping algorithm to ensure that your boat has the best antifouling protection on the market.

How the Technology Works:

• The Mechanism: The system emits high-frequency ultrasonic waves through the hull drives, creating a microscopic barrier of resonance.
• Targeting the Root Cause: These ultrasound waves repel biofouling from attaching to your hull before they ever have the chance to attach.
• Eco-Friendly: 100% chemical-free. It does not leach pollutants into the water, making it safe for marinas with strict environmental regulations.
• Marine Life Safe: The frequencies used are outside the hearing range of marine mammals and humans.

Benefits:

• Fuel Efficiency: A clean hull creates less drag. Maintaining hull smoothness ensures you get the best possible MPG and top speed.
• Reduced Maintenance Costs: Significantly extends the life of your bottom paint and reduces the frequency of expensive haul-outs.
• Diver Savings: Reduces the need for monthly hull cleaning services.
• Hard-to-Reach Protection: Unlike paint, ultrasonic waves resonate through complex parts that are difficult to paint and clean, such as stern drives, sea strainers, and rudders.
• Fit Forget: Once installed, the system runs automatically with zero scheduled maintenance required.

The BPS Marine BPS-8 is a powerful ultrasonic antifouling system designed to protect hulls, drives, rudders, and stabilizers on boats up to 80 feet long. Featuring eight high-performance transducers, this system creates a microscopic resonance barrier that prevents biofouling from attaching to your vessel's surfaces. Perfect for vessels under 52 feet with inboards or sail drives, the BPS-8 can be expanded with additional units to accommodate larger boats, ensuring comprehensive coverage for your entire vessel. Installation is straightforward, with transducers mounted directly onto the hull using provided epoxy, eliminating the need for through-hulls, while the control module connects easily to your boat's existing electrical system. The system's multi-frequency ultrasonic sweep operates between 20kHz and 42kHz, delivering optimal antifouling protection with minimal maintenance. Once installed, the BPS-8 runs automatically, providing worry-free operation that keeps your hull clean and efficient. Its eco-friendly, chemical-free technology is safe for marine life and complies with strict environmental standards, making it suitable for marinas with environmental regulations. The ultrasonic waves penetrate complex parts like stern drives and rudders, which are difficult to paint or clean, offering consistent protection throughout your vessel. Benefits include improved fuel efficiency through reduced drag, decreased maintenance costs by extending bottom paint life, and fewer hull cleaning services. Designed for simplicity, the BPS-8 requires only a basic connection to your boat's battery and minimal ongoing upkeep. Trust the BPS-8 to deliver reliable, eco-friendly antifouling protection that enhances your boating experience while safeguarding the environment.

Features:

• Eight ultrasonic transducers with 15ft cables for comprehensive hull coverage

• Multi-frequency ultrasonic sweep (20kHz-42kHz) for optimal antifouling protection

• Easy installation with no through-hulls required, using provided epoxy mounts

• Control module connects directly to existing boat electrical system, powered by 12V or 24V DC

• Automatic operation with no scheduled maintenance, ensuring worry-free protection

• Eco-friendly, chemical-free technology safe for marine life and environmentally compliant

• Effective on complex boat parts such as rudders, drives, and stabilizers

• Expandable system suitable for vessels up to 80ft, ideal for smaller boats under 52ft

• Includes epoxy kits, extension cables, and comprehensive manual for straightforward setup
