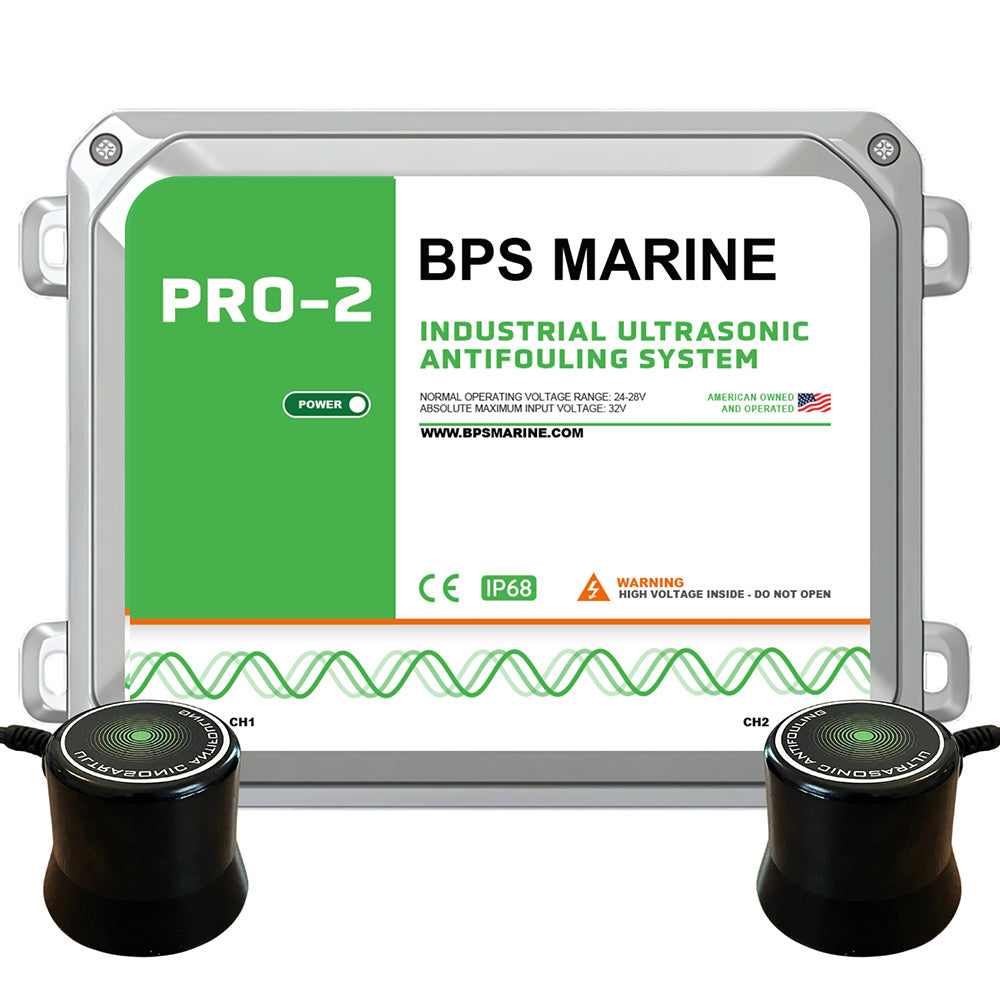

BPS Marine PRO-2 2-Transducer Ultrasonic Antifouling System - 24VDC

PRO-2 2-Transducer Ultrasonic Antifouling System - 24VDC

The PRO-2 is a two-transducer system that can add antifouling protection to hulls, drives, rudders, stabilizers, and more. This single system can provide ultrasonic antifouling protection for hulls up to 40ft in length or can be combined with additional systems for larger vessels. The PRO-2 can also be tasked with protecting drives and rudders.

The PRO-2 Package Includes:

• 1x PRO-2 Control Module with Integrated Power Cable
• 2x Submersible Ultrasonic Transducers with 15ft of Cable
• 1x Epoxy Kit
• 1x Printed Installation and Operation Manual

Specifications:

• Voltage: 24V DC
• Average Power Draw: 0.5Ah
• Transducer Strength: 120W
• Cable Length: 15ft per transducer
• Frequency: Multi-frequency ultrasonic sweep algorithm (20kHz-42kHz)

Installation Overview:

• No Thru-Hulls: The transducers are installed directly on top of your hull surface using the provided epoxy.
• Install Signal Cable: Each transducer has 15ft of connected signal cable. This ensures an easy installation from the transducer to the controller.
• Mounting the Controller: The BPS-1 Controller runs off of your boats existing house battery. It is a simple 2-wire connection the the battery bank or distribution panel.
• Enjoy Worry-Free Boating: Thats it! Your BPS system is done! Let our advanced antifouling protection do its job. Each system is programmed with a multi-frequency sweeping algorithm to ensure that your boat has the best antifouling protection on the market.

How the Technology Works:

• The Mechanism: The system emits high-frequency ultrasonic waves through the hull drives, creating a microscopic barrier of resonance.
• Targeting the Root Cause: These ultrasound waves repel biofouling from attaching to your hull before they ever have the chance to attach.
• Eco-Friendly: 100% chemical-free. It does not leach pollutants into the water, making it safe for marinas with strict environmental regulations.
• Marine Life Safe: The frequencies used are outside the hearing range of marine mammals and humans.

Benefits:

• Fuel Efficiency: A clean hull creates less drag. Maintaining hull smoothness ensures you get the best possible MPG and top speed.
• Reduced Maintenance Costs: Significantly extends the life of your bottom paint and reduces the frequency of expensive haul-outs.
• Diver Savings: Reduces the need for monthly hull cleaning services.
• Hard-to-Reach Protection: Unlike paint, ultrasonic waves resonate through complex parts that are difficult to paint and clean, such as stern drives, sea strainers, and rudders.
• Fit Forget: Once installed, the system runs automatically with zero scheduled maintenance required.

The BPS Marine PRO-2 ultrasonic antifouling system is a reliable and eco-friendly solution designed to protect your boat’s hull, drives, rudders, and stabilizers from biofouling. This advanced system features two submersible transducers with 15-foot cables, making installation on vessels up to 40 feet straightforward without the need for thru-hull fittings. The control module, powered directly from your boat’s existing 24V DC battery, ensures seamless integration with minimal setup effort. Once installed, the system operates automatically, providing continuous ultrasonic protection that prevents marine growth before it attaches, saving you time and maintenance costs.

The PRO-2 employs a multi-frequency ultrasonic sweep algorithm ranging from 20kHz to 42kHz, creating microscopic resonance barriers that repel biofouling organisms. This process is entirely chemical-free, making it an environmentally safe choice that does not leach pollutants into the water, and it is safe for marine life, including dolphins and whales. The system’s ultrasonic waves penetrate complex hull areas such as stern drives, sea strainers, and rudders where traditional antifouling paints may struggle to reach. With no scheduled maintenance required, the PRO-2 provides a hassle-free solution that keeps your boat cleaner, faster, and more fuel-efficient.

By maintaining a smooth hull surface, the PRO-2 system enhances fuel efficiency and top speeds while reducing the need for costly haul-outs and hull cleaning services. It extends the life of your bottom paint and minimizes diver expenses, making it a cost-effective investment for boat owners who value convenience and environmental responsibility. Installation is simple: attach the transducers directly onto your hull surface with epoxy, run the signal cables, and connect the controller to your boat’s power. Once set up, the system works tirelessly in the background, providing peace of mind and optimal performance on every voyage.

Features:

• Dual ultrasonic transducers with 15 ft cables for easy installation

• Multi-frequency ultrasonic sweep (20kHz-42kHz) for optimal biofouling prevention

• Chemical-free, environmentally safe protection

• Compatible with vessels up to 40 ft in length, expandable with additional systems

• Simple integration with existing boat battery power, no complex wiring
