8' Wide Band Antenna with 20' Cable
Utilizing technology designed for military and commercial applications, Digital Antenna delivers our new, highly advanced 8' Wide Band VHF Antennas to the marine industry. These antennas provide tactical maritime users with a high-performance solution for broadband VHF communications.
Featuring a tremendous bandwidth of 134 to 176 MHz, a nominal 6dB gain, and the ability to withstand continuous RF power up to 150 watts, the new antennas facilitate high-quality communications across a normally hard-to-cover band. An exclusive patent-pending electrical design with an internal ground plane allows the antenna to maintain a low radiation pattern, resulting in exceptional communication capability over a wide bandwidth.
Designed to meet the militarys rigorous MIL-STD-810 environmental engineering testing, as well as typical marine standards for high seas applications, the 992-MW and 992-MB antennas, are built to endure environmentally harsh conditions. They are designed for use with a multitude of services including auxiliary civil services, 2-meter amateur radio band, VHF business band, multi-use radio service (MURS), 2-way land mobile, VHF marine radio, narrowband FM, VHF SATCOM, Automatic Identification System (AIS) and NOAA weather stations.
Digital Antennas quality components include a rugged hard-coated anodized finish over an aircraft-grade aluminum ferrule, soldered brass radiating elements, power directing ferrite choke bead, and high-gloss UV stable coating. Manufactured in the USA by skilled craftsmen, our antennas are hand tested and tuned to assure the highest possible performance, quality, and durability. Lifetime limited warranty.
Features:
- Broadband 134-176 MHz
- Withstands continuous RF power up to 150 watts
- Aircraft-grade aluminum ferrule
- Completely sealed
- High performance 6dB gain
- Sleek mono-color design
- Lifetime limited warranty
- Mount: Standard 114 threaded base
- Connector: Gold factory-attached mini-UHF female with mini-UHF male to UHF male (PL259) adapter
- Cable: Includes 20 exclusive low-loss, tinned braid, foil shielded, UV stable DA195 Ultra-Flex marine cable

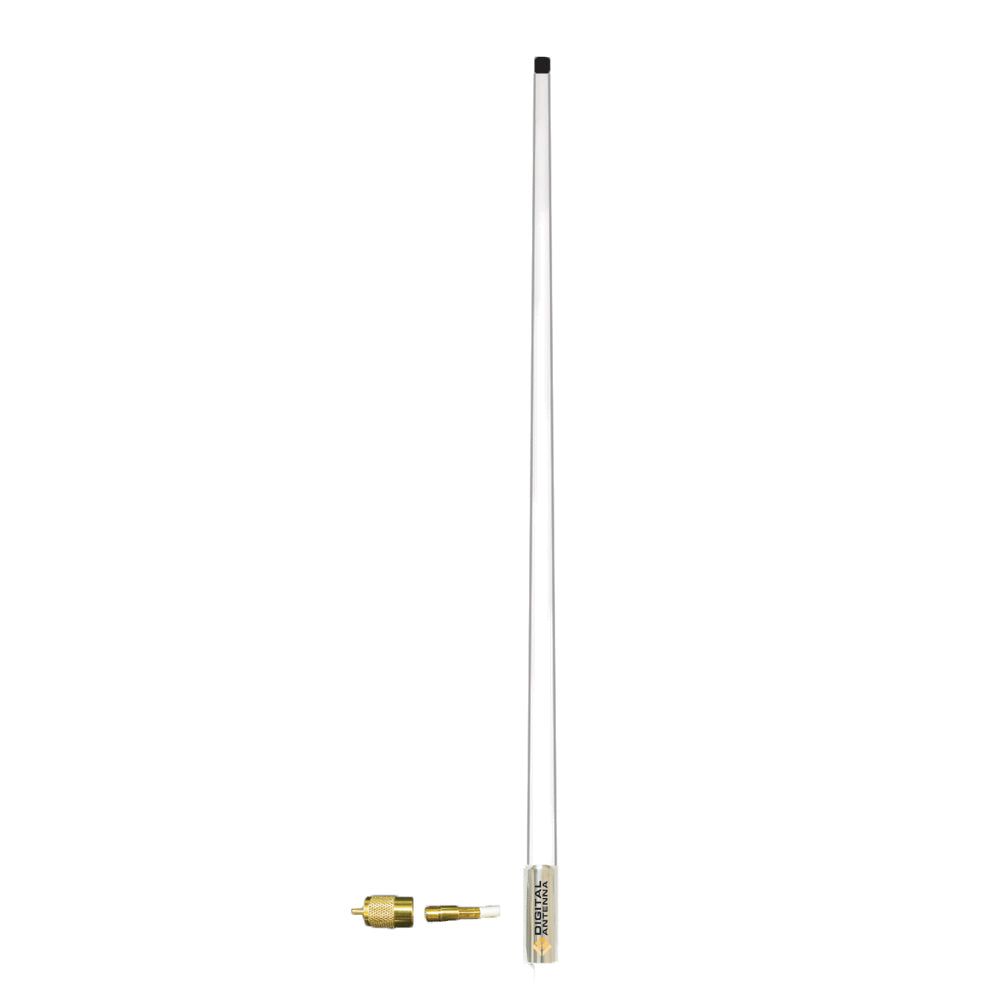

Digital Antenna 992-MW-S 8-Foot Wide Band VHF Marine Antenna with 20-Foot Cable delivers broadband VHF communication performance for marine, commercial, tactical maritime, and other professional radio applications. Designed for demanding environments, this high-performance antenna covers 134 to 176 MHz and supports continuous RF power up to 150 watts, helping users communicate across a wide range of VHF services.
The antenna features an exclusive patent-pending electrical design with an internal ground plane that maintains a low radiation pattern across its broad operating range. With nominal 6dB gain, it is designed to support high-quality communication for VHF marine radio, AIS, NOAA weather stations, auxiliary civil services, 2-meter amateur radio, VHF business band, MURS, two-way land mobile, narrowband FM, and VHF SATCOM applications. Its sealed construction and marine-ready components help it withstand harsh high-seas conditions.
Built in the USA by Digital Antenna craftsmen, the 992-MW-S combines an aircraft-grade aluminum ferrule with a hard-coated anodized finish, soldered brass radiating elements, a power-directing ferrite choke bead, and a high-gloss UV-stable coating. Each antenna is hand tested and tuned. The package includes 20 feet of exclusive low-loss DA195 Ultra-Flex marine cable with a tinned braid, foil shield, and UV-stable jacket, along with the required connector adapter for installation flexibility.
Choose the Digital Antenna 992-MW-S when you need a broadband VHF marine antenna designed for dependable performance across multiple radio services and demanding operating conditions.
Key Features:
-
Broadband VHF coverage: Operates across 134 to 176 MHz for versatile communications.
-
6dB nominal gain: Supports high-performance VHF communication across a wide bandwidth.
-
High power handling: Withstands continuous RF power up to 150 watts.
-
Marine-ready construction: Features a sealed design, UV-stable coating, and aircraft-grade aluminum ferrule.
-
Complete cable package: Includes 20 feet of low-loss DA195 Ultra-Flex marine cable.
-
Broad service compatibility: Designed for VHF marine radio, AIS, NOAA weather, amateur radio, business radio, MURS, land mobile, and other listed VHF services.
Product Details:
-
Brand: Digital Antenna
-
Part number: 992-MW-S
-
Antenna type: 8-foot wide band VHF marine antenna
-
Frequency range: 134–176 MHz
-
Nominal gain: 6dB
-
Continuous RF power: Up to 150 watts
-
Mount: Standard 1-1/4-inch threaded base
-
Connector: Gold factory-attached mini-UHF female connector with mini-UHF male to UHF male (PL-259) adapter
-
Cable: 20-foot DA195 Ultra-Flex marine cable with tinned braid, foil shielding, and UV-stable construction
-
Construction: Completely sealed with aircraft-grade aluminum ferrule, soldered brass radiating elements, and high-gloss UV-stable coating
-
Country of manufacture: USA
-
Warranty: Lifetime limited warranty
|
