Digital Yacht iKonvert NMEA 2000 Gateway with ISO Interface – Bi-Directional NMEA 2000 to NMEA 0183 Converter for Marine Navigation

iKonvert NMEA 2000 Gateway with ISO Interface

The iKonvert NMEA2000-0183 Gateway/Converter is an intelligent and flexible gateway for allowing new NMEA2000 equipment to talk to legacy NMEA0183 equipment. Conversions are bi-directional, so whether you want to get the data from older NMEA0183 sensors on to your NMEA2000 network or you have added a new NMEA2000 only MFD and want it to send GPS and Navigation data to your older NMEA0183 VHF and Autopilot, iKonvert will accurately and intelligently carry out the required data conversions.

There are many, many real life applications for NMEA2000 to NMEA0183, with a plethora of different makes and models of equipment that may need to be connected together. We have designed iKonvert to satisfy as many of these situations as possible by incorporating a simple but effective mode selection method, via a set of DIP switches inside iKonvert. Just remove two screws, open the iKonvert box and using a small screw driver, select the mode you need. The next time iKonvert powers up, it will automatically carry out the conversions you selected.

A number of modes have already been defined including; Heading, Sounder, AIS, GPS, Wind, Instruments and an all data gateway mode, which automatically sets the conversions to be done and the baud rate iKonvert will use. What is more, if you need a mode that we have not defined yet, just let us know and we will consider including it.

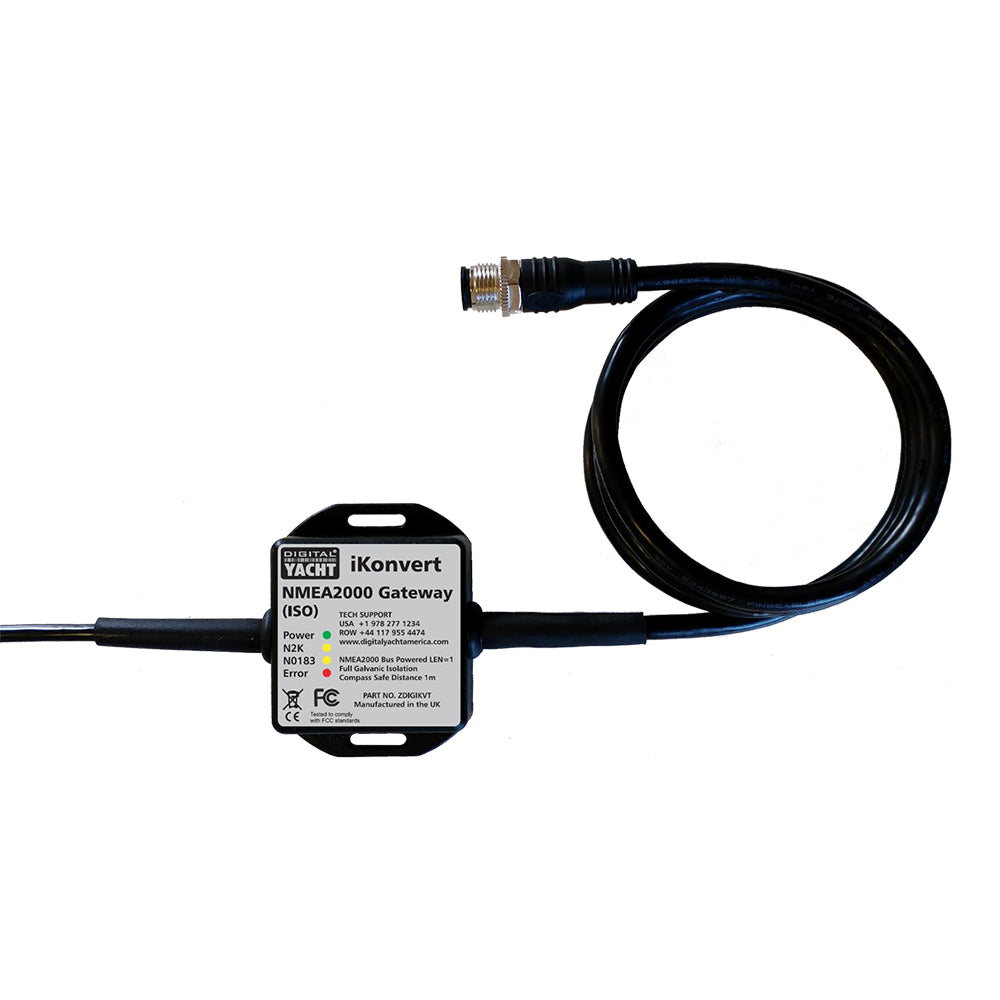

Digital Yachts iKonvert Gateway is housed in a compact and easy to mount housing, with an integral NMEA0183 cable and standard NMEA2000 Micro drop cable (male). Taking its power from the NMEA2000 network, and providing full galvanic isolation between the NMEA0183 and NMEA2000 networks, iKonvert is the perfect solution for all NMEA conversions.

For customers that want to take this converted data in to a computer, please consider theiKonvert USB gateway, that features an integral USB cable that is compatible with all of the popular operating systems (Windows/Mac/LINUX/Android).

Features:

• Small but powerful bi-directional NMEA2000 to NMEA0183 Converter
• Powered from the NMEA2000 network
• Opto Isolated NMEA0183 Interface
• Converts AIS, GPS, Navigation, Instrument and XDR data
• Features Real Life data modes for most common installations
• Simple configuration of data modes using DIP switches
• IntegralNMEA0183 cableand NMEA2000 Micro (Male) cables
• Full galvanic isolation

The Digital Yacht iKonvert NMEA 2000 Gateway with ISO Interface is a versatile and compact solution designed for seamless communication between modern NMEA2000 marine equipment and legacy NMEA0183 devices. Whether you are upgrading your navigation system or integrating older sensors with new displays, the iKonvert provides accurate and reliable data conversions in both directions, ensuring your marine electronics operate harmoniously. Powered directly from the NMEA2000 network, this gateway features galvanic isolation that protects your systems from electrical interference, enhancing safety and performance on your vessel. The device's straightforward configuration via internal DIP switches allows users to select specific modes such as Heading, Sounder, AIS, GPS, Wind, or Instruments, making setup fast and user-friendly. Additionally, the iKonvert automatically recognizes these modes upon power-up, simplifying integration tasks. The included NMEA0183 cable and NMEA2000 Micro (Male) connector facilitate easy installation in various marine environments. For users needing data access on computers or other devices, the optional iKonvert USB gateway offers compatibility across Windows, Mac, Linux, and Android operating systems, with an integrated USB cable for plug-and-play connectivity. This product is an ideal choice for boaters, marine electronics installers, and technicians seeking a reliable, easy-to-configure NMEA conversion solution that ensures interoperability across different generations of marine navigation and instrumentation equipment.

Features:

• Small but powerful bi-directional NMEA2000 to NMEA0183 converter

• Powered directly from the NMEA2000 network for ease of installation

• Opto-isolated NMEA0183 interface enhances electrical safety

• Converts AIS, GPS, navigation, instrument, and XDR data for versatile use

• Pre-configured with real-life data modes for common marine setups

• Simple mode selection via internal DIP switches for quick setup

• Includes integral NMEA0183 cable and NMEA2000 Micro (Male) connector

• Provides full galvanic isolation to protect connected systems
