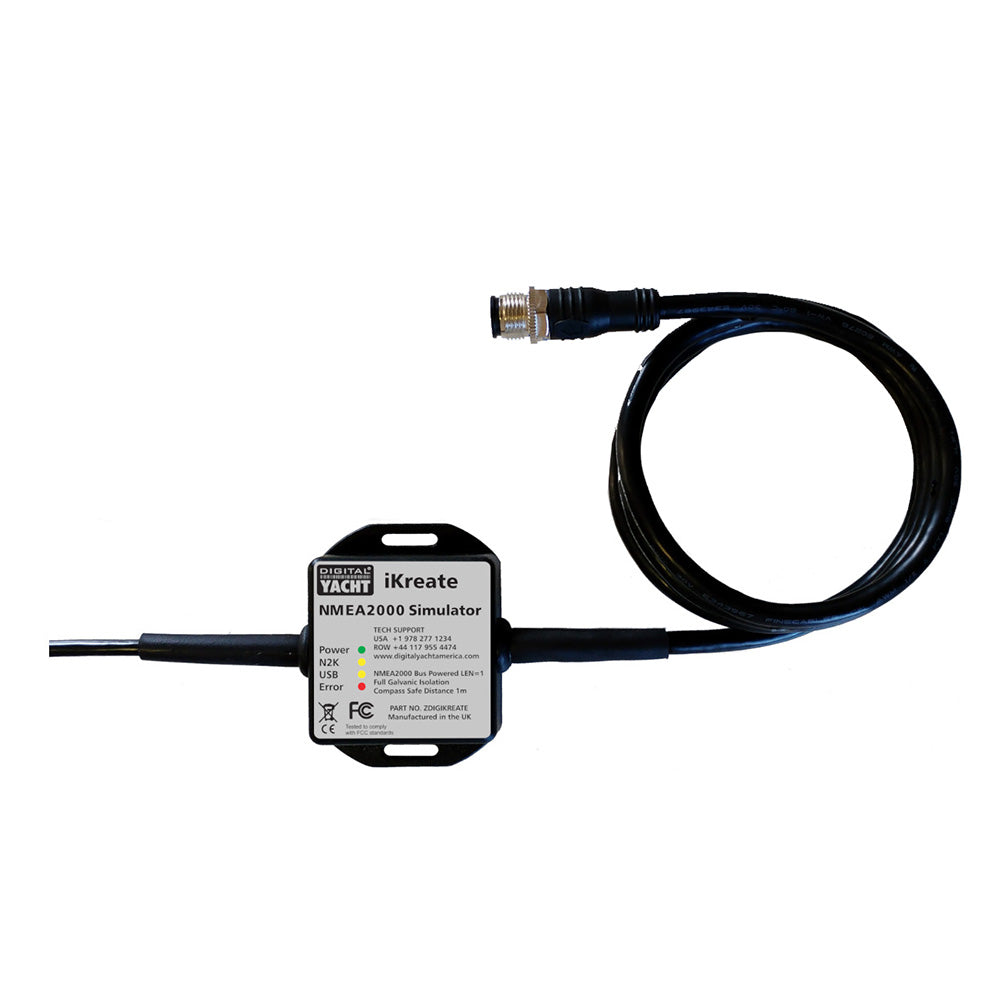

Digital Yacht iKreate NMEA 2000 Simulator with USB – Marine Electronics Data Replay & Simulation Tool

iKreate NMEA 2000 Simulator with USB

For anyone involved in designing, manufacturing, or installing marine electronics, the ability to simulate or replayNMEA2000data is a real advantage and can accelerate software development, demonstrateNMEA2000devices, or help diagnose network issues.

With more and more modern boats having anNMEA2000network at the heart of their navigation system, it is really important that you have the tools to investigate the devices and data on the network should things not work as planned.

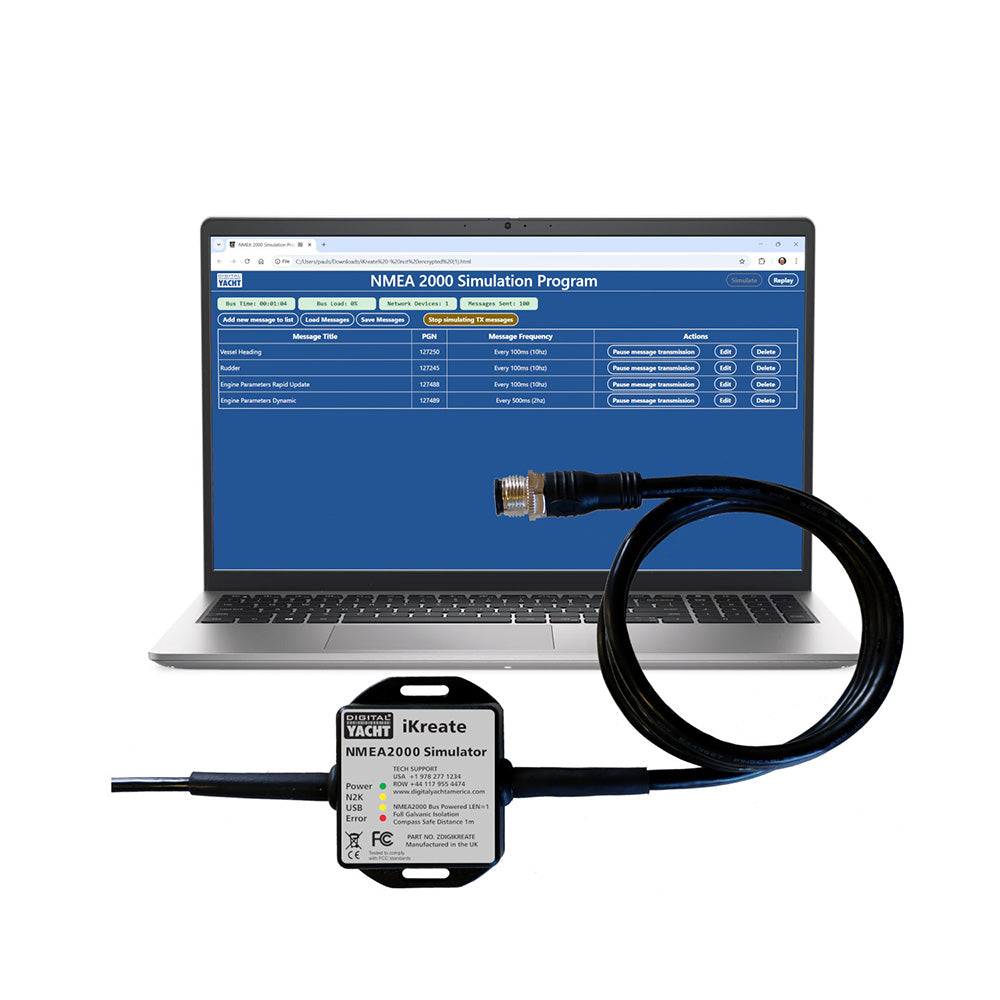

Consisting of an iKreate USB interface and an HTML5-based web app, the iKreate simulator can generate any number of NMEA2000 PGNs or replay saved log files of real-life network data from any NMEA2000 system, regardless of brand.

This package includes iKreate to connect to the NMEA 2000 network and the simulator software to generate any number of NMEA2000 PGNs.

Just like our NMEA2000 Display App, the iKreate Simulator takes a new approach and is the Worlds first multi-platform, browser-based NMEA2000 Simulator App that will run on Windows, LINUX, Mac OS X, and Raspbian. There is no installation, and if you can save a file and find it again, then that is as complex as it gets with just a single HTML5 file to worry about (less than 0.5MB in size).

You need to use the app with a browser that supports the Web Serial API, which currently includes Chrome, Chromium, MS Edge, and Opera. We also plan to support Firefox going forward (with its WebSerial Extension), but this was not possible for the first release of the app.

Features:

• Create individual NMEA 2000 PGNs from a drop-down list populated with the data you enter, or play back a NMEA 2000 log file captured by a Digital Yacht NMEA 2000 product, etc, from an on-board system
• Multiple PGN groups can be created and even saved for future use
• The data variance function can synthesise changing values
• No complicated software to install just a simple file for Chrome, Edge, Opera or Chromium
• Functions on PC, MAC, and Linux platforms simple USB connection
• Set SRC address and instance
• Integrated 0.8m NMEA 2000 and 0.8m USB cable
• Available with USB-C connector (USB-A option)

Whats In The Box

• iKreate USB Interface
• Software to download via link

The Digital Yacht iKreate NMEA 2000 Simulator with USB is an essential tool for marine electronics professionals, boat builders, and software developers working with NMEA 2000 networks. This innovative device allows users to simulate and replay NMEA 2000 PGNs, facilitating software testing, device demonstration, and troubleshooting of complex marine navigation systems. Its seamless integration with a web-based app makes it versatile and easy to use across multiple platforms including Windows, Mac OS X, Linux, and Raspbian, eliminating the need for complicated installations. Simply connect the USB interface to your computer and access the simulator via a supported browser, such as Chrome, Edge, or Opera, that supports the Web Serial API. The compact HTML5-based software file is less than half a megabyte, ensuring quick setup and minimal system impact. The device includes a USB cable with options for USB-C or USB-A connectors, making it compatible with a variety of systems and ensuring reliable connectivity. Users can create multiple PGN groups, generate data with changing values, and replay real-life logs captured from NMEA 2000 networks, regardless of the device manufacturer. The intuitive interface allows for easy configuration of source address and instance, empowering users to simulate complex network scenarios effortlessly. Whether you're diagnosing network issues, validating device performance, or developing custom marine electronics, the iKreate Simulator offers a flexible, portable, and powerful solution. The package includes the iKreate USB interface and access to the software download link, along with an included 0.8-meter NMEA 2000 and USB cable for straightforward setup. With its browser-based design, high compatibility, and robust feature set, the Digital Yacht iKreate NMEA 2000 Simulator is the ultimate tool for anyone involved in the design, testing, or maintenance of modern marine navigation systems.

Features:

• Create individual NMEA 2000 PGNs from user-entered data or replay saved log files from real-world systems

• Multiple PGN groups can be created and saved for future use

• Data variance function can synthesize changing values to simulate real-time data

• No software installation required; runs on Windows, Mac OS X, Linux, and Raspbian via a simple HTML5 file

• Compatible with browsers supporting the Web Serial API, including Chrome, Edge, and Opera

• Configure source address and instance easily through the web interface

• Includes a 0.8-meter NMEA 2000 and USB cable for quick setup

• Available with USB-C or USB-A connectors for versatile connectivity
