Digital Yacht J1939 Doctor Diagnostic Tool ZDIGJDOC for Marine Engine and Electrical Network Monitoring

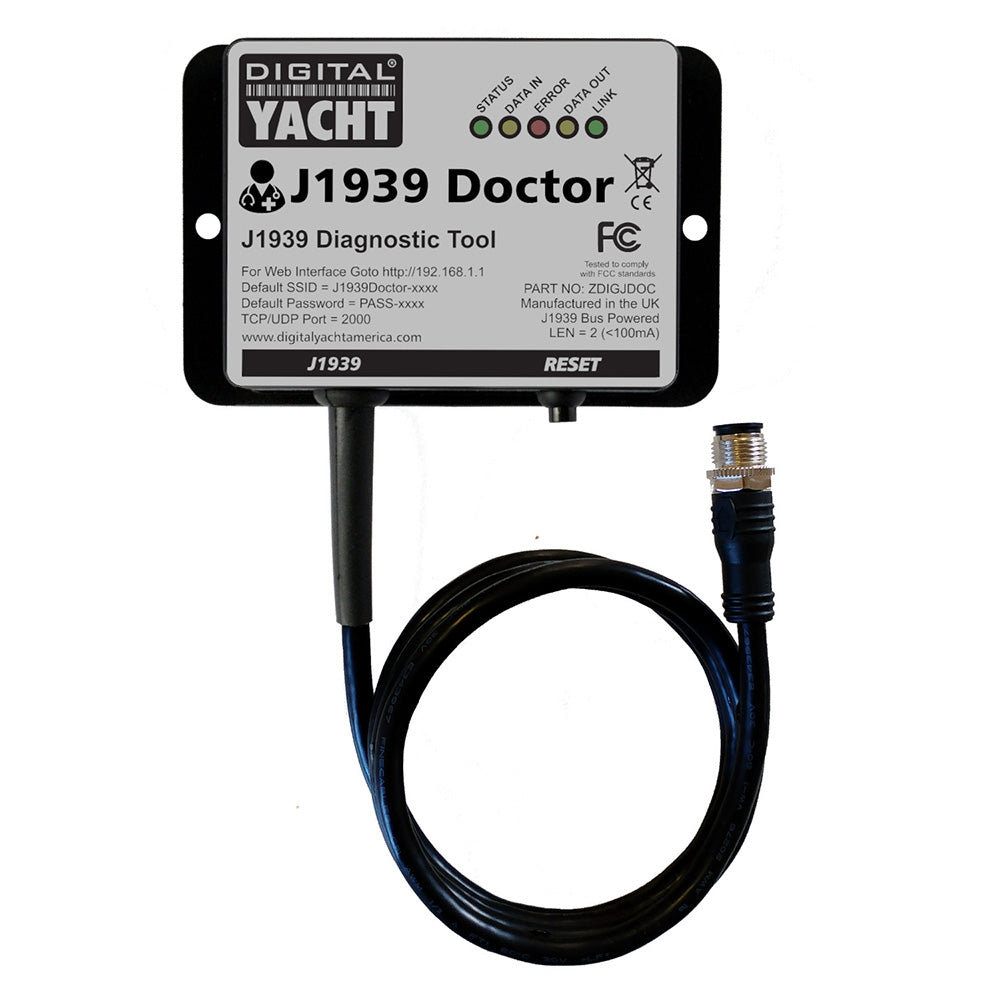

J1939 Doctor Diagnostic Tool

Self-contained J1939 diagnostics tool with physical network and data analysis on your phone, tablet, PC, or MAC.

The J1939 protocol is increasingly being adopted in marine applications, providing monitoring and control for engines, propulsion systems, generators, and electrical networks. To support this trend, a self-contained J1939 diagnostics tool has been developed, featuring a built-in web interface that allows any device with a browser to connect and analyze data seamlessly. With wireless connectivity to mobile devices, users can access critical information from anywhere on the vessel without the need for physical connections.

This diagnostic tool not only monitors the J1939 network but also checks its physical characteristics, including voltages, bus load, and frame errors. Users can view all devices connected to the network and drill down into specific data for detailed analysis. Its flexibility is enhanced by an M12 connector, which supports a wide variety of third-party patch cables and breakouts, making it compatible with diverse setups.

Easily monitor and manage device fault codes with our user-friendly interface. Click the Fault (Red Cross) icon to view active and historical codes in a clear pop-up. The DM1 Table displays the currently active fault codes, while the DM2 Table provides a record of historical faults.

If a fault condition remains active after clearing, the system automatically detects and displays it again during the next PGN transmission, ensuring you always have accurate, up-to-date diagnostic information at your fingertips.

For more in-depth analysis, you can also view detailed information for a specific PGN by clicking the Info icon located at the end of that PGNs row. This will open a pop-up window displaying all relevant data for precise monitoring and troubleshooting.

Powering the tool is equally versatile. It can draw power directly from the J1939 network (12/24V) or operate from a separate DC supply through the breakout connection. To support reporting and documentation, the tool allows users to print detailed network reports directly from the browser, just as they would with any standard document, simplifying record-keeping and diagnostics.

Operation

You can configure the J1939 Doctor through its own simple web interface. Just open your web browser, enter the J1939 Doctors IP address, and you can access the J1939 Doctor web interface. So, no complicated programming software or app required.

Through the web interface, you can analyse all the equipment connected to the network and get additional information about the equipment. You can also display all of the PGNs being received.

The health section gives you an overview of the network (supply voltage, bus capacity, etc.).

Features:

• J1939 is increasingly used on boats for engine, propulsion, generator, and electrical monitoring
• Self-contained J1939 diagnostics tool with built-in web interface, allowing any device with a browser to connect and analyse data
• Wireless connectivity to the mobile device
• Checks physical characteristics of the J1939 network, such as voltages, bus load, and frame errors
• Allows viewing of devices and data on the J1939 network
• Drill down on data for analysis
• Fitted with an M12 connector from which a wide variety of 3rdparty patch cables and breakouts can be connected
• Can operate from J1939 network power (12/24v) or from a separate DC supply via breakout
• Print reports of the network via the browser, just as you would any document

Specifications:

• Dimensions: 105 x 72 x 32mm

Whats In The Box

• 1m drop cable with male M12 Device Net connector
• WiFi antenna built-in

The Digital Yacht J1939 Doctor Diagnostic Tool ZDIGJDOC is a comprehensive, self-contained solution designed for marine applications where monitoring and diagnostics of engine, propulsion, generator, and electrical networks are critical. Featuring an integrated web interface, this device allows seamless data analysis from any browser-enabled device such as smartphones, tablets, PCs, or Macs, offering unparalleled flexibility and convenience. Wireless connectivity ensures you can access vital network information from anywhere on your vessel, eliminating the need for physical connections and enabling real-time troubleshooting and system monitoring.
The J1939 protocol is increasingly popular in maritime environments, and this diagnostic tool supports full network health checks including voltages, bus load, and frame errors. Users can view all connected devices, analyze specific data points, and drill down into detailed information for troubleshooting. Its compatibility with a wide range of third-party patch cables and breakouts via an M12 connector makes it adaptable to various setups, providing a versatile solution for marine electricians and technicians.
Managing faults is straightforward with an intuitive interface that displays active and historical fault codes. The Fault (Red Cross) icon provides quick access to this information, while detailed data for each PGN can be reviewed by clicking the Info icon for precise diagnostics. The system automatically detects persistent faults, ensuring you always have the latest information for effective maintenance. Power options include connection directly to the J1939 network (12 or 24 volts) or from an external DC supply, offering flexibility for different vessel configurations. Additionally, users can generate and print comprehensive network reports directly from their browser, streamlining documentation and record-keeping processes.
Configuring the J1939 Doctor is simple through its dedicated web interface—no complex software or app installation required. By entering the device's IP address into a browser, users can analyze network status, view connected equipment, and monitor PGN traffic in real-time. The health overview provides insights into supply voltage and bus capacity, helping prevent potential issues before they escalate. With its compact dimensions, the device is easy to install and integrate into existing vessel systems, making it an essential tool for marine diagnostics and maintenance.

Features:

• Supports J1939 protocol for engine, propulsion, generator, and electrical monitoring on boats

• Self-contained diagnostics device with built-in web interface for seamless data analysis

• Wireless connectivity enables remote access from mobile devices and computers

• Monitors physical network characteristics such as voltages, bus load, and frame errors

• Provides comprehensive device and data visibility on the J1939 network

• Allows detailed data analysis with drill-down capabilities for troubleshooting

• Equipped with an M12 connector compatible with third-party patch cables and breakouts

• Operates from J1939 network power (12/24V) or external DC supply for flexible installation

• Enables printing of detailed network reports directly via the browser for documentation
