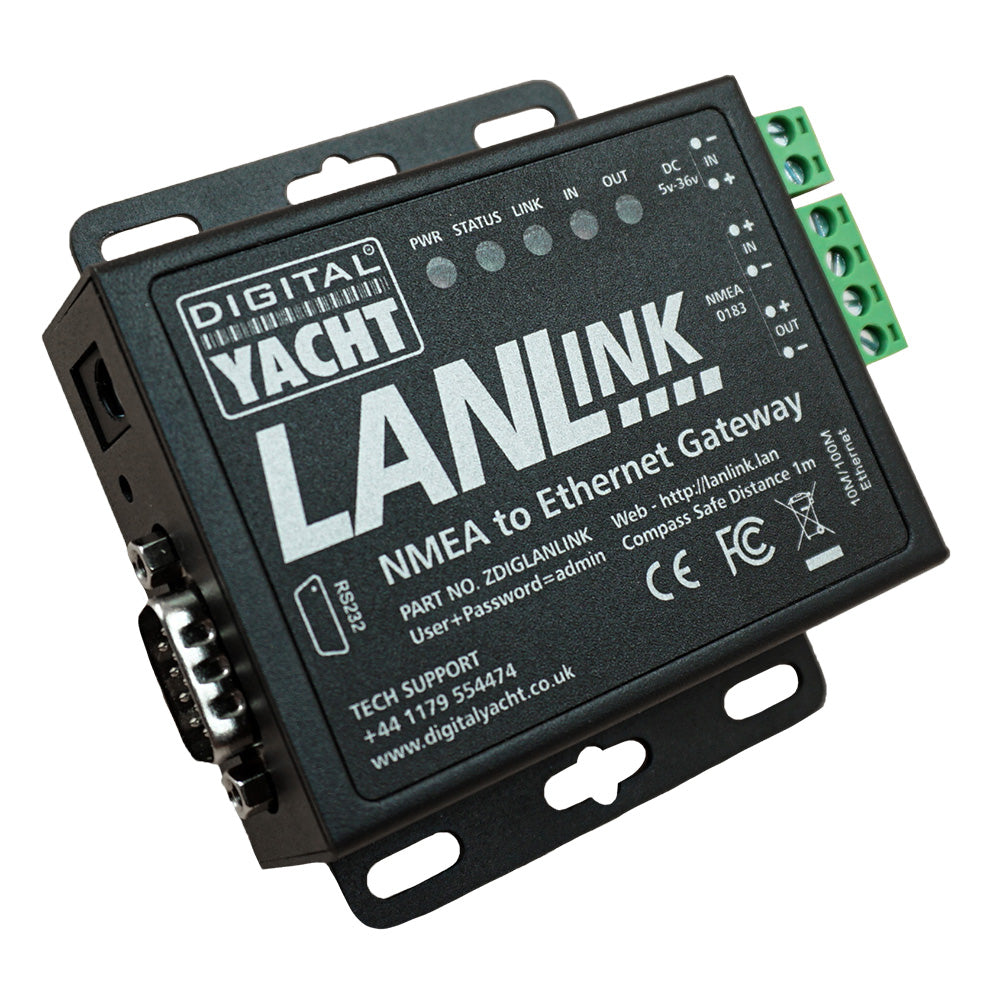

LANLink NMEA 0183 To Ethernet Gateway

More and more boats now have a wireless router fitted or utilize services like Digital Yacht 4G Connect for internet connectivity. LANLink is an NMEA to ethernet gateway that enables the boats NMEA data to integrate into the router network -allowing connected devices and apps to take advantage of the data.

LANLinkis available in two versions suitable for NMEA 0183 and NMEA 2000 respectively. It features an easy-to-use web interface allowing any device with a browser to configure NMEA baud rates and IP/Port information.

It can support multiple TCP/IP connections and is bi-directional. Once connected to the onboard network via a simple CAT 5/6 patch cable, users can set apps like TZ iBoat, iNavX, NavLink, iSailor, Imray, Weather 4D, etc., by simply entering the IP address and port for streaming NMEA data.

Features:

• NMEA 0183 to ethernet gateway version
• 12/24v DC low power operation
• Connects to router or devices via simple RJ45 Cat 5/6 patch cable connection
• The web user interface for easy setup from the connected device via the browser
• TCP/IP or UDP connection modes support for up to 5 connected devices with TCP/IP
• Bi-Directional
• The NMEA 2000 variant can offer raw mode with encapsulated PGNs or conversion mode (for apps) supporting AIS, instruments, and GPS
• RS232 port for PC apps too
• Status indicators for power, data in-out, network link, and server status

Set-Up:

• Easy menu-driven web UI accessible via web browser on a client device with no complicated software to install for setup
• Configure NMEA data for 4800 or 38400 baud and set mode (TCP/IP or UDP) and port
• Set up with fixed or dynamic IP address
• Status page for system diagnostics

Specifications:

• Power: 10-35V DC (Consumption approx. 50mA at 12V DC)
• Network Port: Ethernet RJ45 10/100MB
• IP Mode: Static or DHCP
• Operating Mode *TCP/IP or UDP; Support for up to 5 connected devices in TCP/IP mode; *Recommended mode of operation
• NMEA Input: Configurable 4800 or 38400 baud (NMEA 0183)
• NMEA 2000 option via iKonvertgateway
• Operating temp: -25 to +70 degrees C
• LED Indicators: Power -Status -Link -Data In -Data Out
• Options: RS232 connectivity (non-concurrent with NMEA)
• Dimensions (W x H): 95mm x 86mm

Enhance your marine navigation setup with the Digital Yacht LANLink NMEA 0183 to Ethernet Gateway, part number ZDIGLANLINK. Designed for modern boats with integrated wireless routers or internet services like Digital Yacht 4G Connect, this gateway allows seamless transfer of NMEA data over your onboard network, enabling connected devices and marine apps to access vital navigation and instrumentation data effortlessly. Supporting both NMEA 0183 and NMEA 2000 protocols, the LANLink provides versatile integration options to suit your vessel's specific requirements. Its user-friendly web interface simplifies configuration, allowing you to adjust baud rates, IP addresses, and port settings directly from any device with a web browser, eliminating the need for complex software installations. Once connected via a standard RJ45 Cat 5/6 cable, the device supports multiple TCP/IP connections, making it compatible with popular marine apps like TZ iBoat, iNavX, NavLink, and Weather 4D, among others. The bi-directional design ensures smooth data flow for navigation, AIS, instruments, and GPS data streaming, significantly enhancing your vessel’s connectivity and data sharing capabilities. Constructed to operate efficiently on 12/24V DC power with low consumption, the LANLink features status LEDs for power, network link, and data activity, providing easy diagnostics at a glance. It includes an RS232 port for PC connectivity and supports static or DHCP IP configurations for flexible network setup. Its compact dimensions and robust operating temperature range make it suitable for various marine environments. Whether you're upgrading an existing system or installing a new network, the Digital Yacht LANLink simplifies marine data integration, providing reliable, high-speed connectivity tailored for the modern boat owner. As per Prop 65 compliance, this device is safe for use in marine applications, ensuring peace of mind during installation and operation.

Features:

• NMEA 0183 to Ethernet gateway version for seamless marine data transfer

• Supports 12V or 24V DC power with low power consumption

• Easy Ethernet connection via RJ45 Cat 5/6 patch cable

• Intuitive web interface for straightforward setup and configuration

• Supports multiple TCP/IP or UDP connections for up to 5 devices

• Bi-directional data flow for comprehensive navigation integration

• NMEA 2000 variant offers raw mode with PGN encapsulation or conversion mode for AIS, GPS, and instruments

• Additional RS232 port for PC applications

• LED indicators for power, link, data in/out status

• Flexible network setup with static or DHCP IP options

• Compact design with dimensions suitable for marine environments

• Operating temperature range from -25°C to +70°C for durability
