Digital Yacht LANLink NMEA 2000 to Ethernet Gateway for Marine Data Integration

LANLink NMEA 2000 To Ethernet Gateway

More and more boats now have a wireless router fitted or utilize services like Digital Yacht 4G Connect for internet connectivity. LANLink is an NMEA to ethernet gateway that enables the boats NMEA data to integrate into the router network -allowing connected devices and apps to take advantage of the data.

LANLinkis available in two versions suitable for NMEA 0183 and NMEA 2000 respectively. It features an easy-to-use web interface allowing any device with a browser to configure NMEA baud rates and IP/Port information.

It can support multiple TCP/IP connections and is bi-directional. Once connected to the onboard network via a simple CAT 5/6 patch cable, users can set apps like TZ iBoat, iNavX, NavLink, iSailor, Imray, Weather 4D, etc., by simply entering the IP address and port for streaming NMEA data.

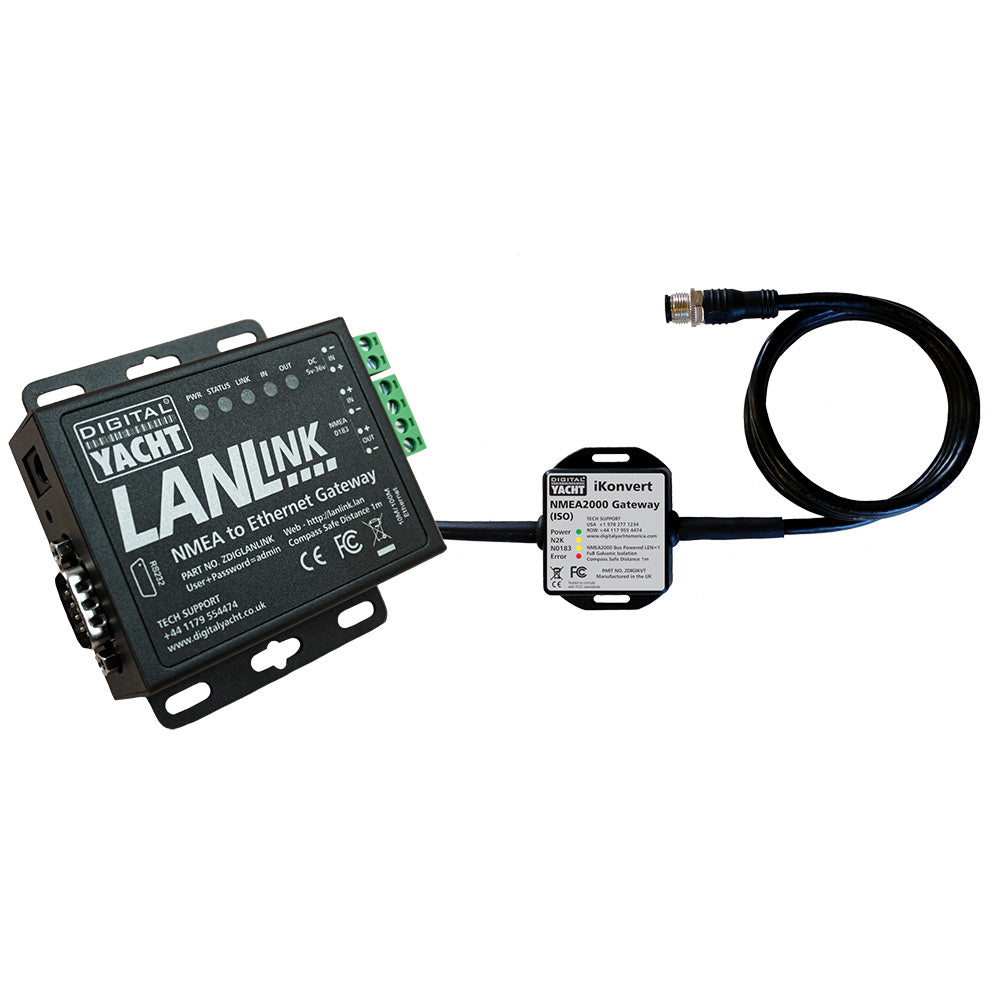

*This version ships with an iKonvertNMEA Certified gateway

Features:

• NMEA 2000 to ethernet gateway version
• The NMEA 2000 version ships with an iKonvertNMEA Certified gateway for easy connection to the NMEA 2000 backbone (easily configurable for multiple installation options)
• 12/24v DC low power operation
• Connects to router or devices via simple RJ45 Cat 5/6 patch cable connection
• Web user interface for easy setup from the connected device via browser
• TCP/IP or UDP connection modes support for up to 5 connected devices with TCP/IP
• Bi-Directional
• The NMEA 2000 variant can offer raw mode with encapsulated PGNs or conversion mode (for apps) supporting AIS, instruments, and GPS
• RS232 port for PC apps too
• Status indicators for power, data in-out, network link, and server status

Set-Up:

• Easy menu-driven web UI accessible via web browser on a client device with no complicated software to install for setup
• Configure NMEA data for 4800 or 38400 baud and set mode (TCP/IP or UDP) and port
• Set up with fixed or dynamic IP address
• Status page for system diagnostics

Specifications:

• Power: 10-35V DC (Consumption approx. 50mA at 12V DC)
• Network Port: Ethernet RJ45 10/100MB
• IP Mode: Static or DHCP
• Operating Mode *TCP/IP or UDP; Support for up to 5 connected devices in TCP/IP mode; *Recommended mode of operation
• NMEA Input: Configurable 4800 or 38400 baud (NMEA 0183)
• NMEA 2000 option via iKonvertgateway
• Operating temp: -25 to +70 degrees C
• LED Indicators: Power -Status -Link -Data In -Data Out
• Options: RS232 connectivity (non-concurrent with NMEA)
• Dimensions (W x H): 95mm x 86mm

The Digital Yacht LANLink NMEA 2000 to Ethernet Gateway is an essential device for modern marine vessels seeking to integrate their NMEA 2000 data into onboard Wi-Fi networks. Designed to connect seamlessly to your boat’s NMEA backbone, this gateway enables real-time streaming of navigation, AIS, and instrument data to various apps and devices over your network, enhancing navigational awareness and data accessibility. Whether you’re using a wireless router or services like Digital Yacht 4G Connect, LANLink ensures your vessel’s vital data is readily available to compatible apps such as TZ iBoat, iNavX, and Weather 4D. The device’s straightforward web interface allows users to configure baud rates, IP addresses, and ports easily from any browser-enabled device, simplifying setup and ongoing management.

This version of the LANLink is equipped with an iKonvertNMEA Certified gateway, facilitating quick and reliable connection to the NMEA 2000 backbone. Its support for multiple TCP/IP connections and bi-directional data flow makes it a versatile and scalable solution for various onboard networking needs. The device operates on a low power draw from 12V or 24V DC sources, making it suitable for a range of vessel electrical systems. Easy-to-identify status indicators keep you informed about power, data flow, network link, and server status, allowing for quick diagnostics and troubleshooting.

Installation involves connecting the device with a simple RJ45 Cat 5/6 patch cable to your router or network switch. The web-based setup process allows configuration of NMEA baud rates (4800 or 38400), network mode (static or DHCP), and port settings without complex software installations. The device supports both TCP/IP and UDP modes, with support for up to five connected devices in TCP/IP mode, making it ideal for expanding marine data networks. Its robust construction and operating temperature range from -25°C to +70°C ensure reliable performance in diverse marine environments. This gateway also features an RS232 port compatible with PC applications, providing additional flexibility for data management and diagnostics. For detailed setup instructions, refer to the official manual linked on the product page.

Features:

• NMEA 2000 to Ethernet gateway version, enabling seamless data integration on marine vessels

• Includes an iKonvertNMEA Certified gateway for quick connection to the NMEA 2000 backbone

• Supports 12/24V DC power operation with low power consumption

• Connects via simple RJ45 Cat 5/6 patch cable to router or network devices

• User-friendly web interface for easy configuration of baud rates, IP, and port settings

• Supports multiple TCP/IP or UDP connections with bi-directional data flow

• Offers raw mode with encapsulated PGNs or conversion mode supporting AIS, instruments, and GPS data

• RS232 port available for PC software integration

• LED indicators for power, status, link, data in/out for system diagnostics

• Easy setup with fixed or dynamic IP configuration and system status monitoring
