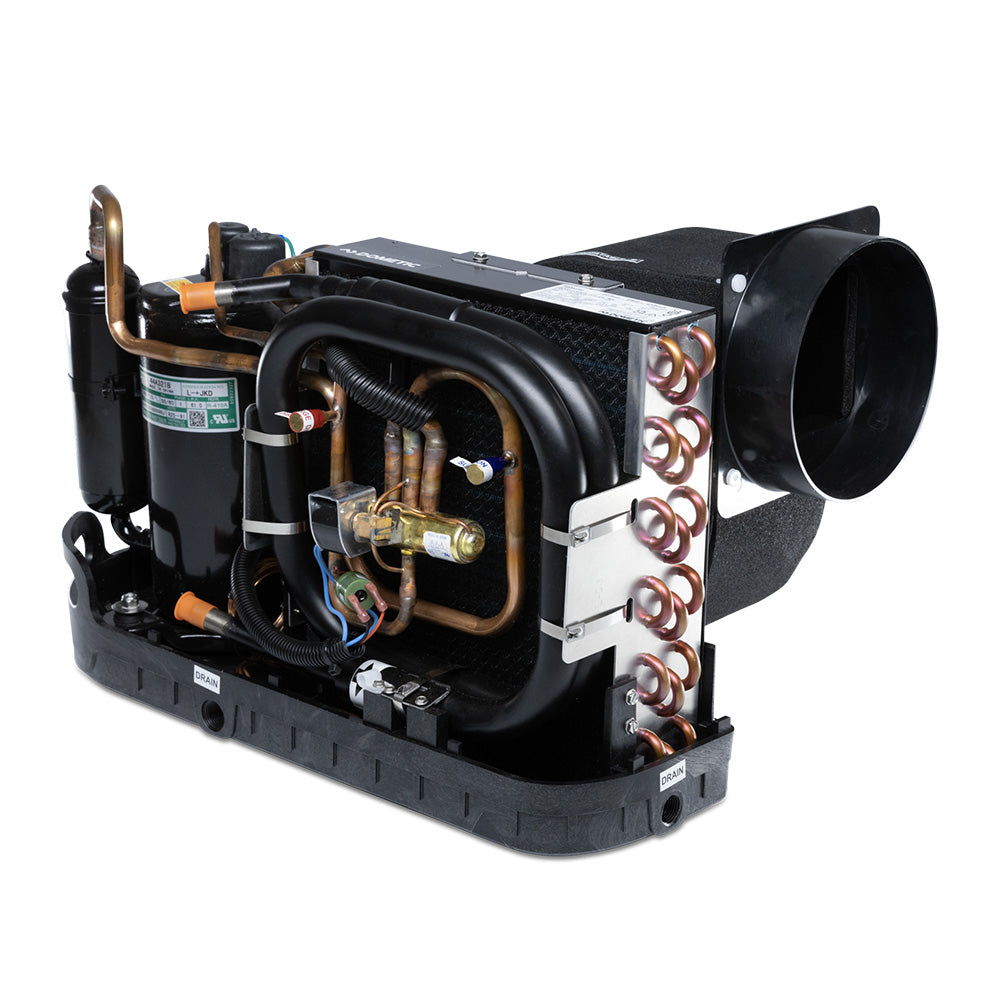

Dometic GT10 10,000 BTU Marine Air Conditioner with Digital Control Display, 115V – 9610007634

GT10 10,000 BTU Marine Air Conditioner with Digital Control Display - 115V

GT combines proven engineering with value-oriented positioning. Every unit includes an integrated digital display for temperature control and system monitoring. Available in 6,000, 10,000, and 16,000 BTU/h capacities with reverse cycle heating, GT delivers reliable climate performance in a complete package.

Designed as a drop-in replacement for older A/C systems, GT features rotatable blower positioning, R454B low GWP refrigerant, and compact dimensions for flexible installation. Multiple voltage configurations (115V/230V, 50/60Hz) provide compatibility across applications.

Features:

• R454B low GWP refrigerant
• Operates at 50 or 60Hz; lower voltage units will run 100-120 volts 50/60Hz and higher voltage units will run 208-240 volts 50/60Hz
• Special coating on the evaporator coil helps shed water more quickly, which minimizes corrosion
• Channels in drain pan guide water directly to multiple drain locations, regardless of boats heeling angle
• Rotate the blower up to 270 to find the perfect ducting angle using a single adjustment screw
• Critical components are easily accessible for simplified servicing
• Added VMD display

Quiet Operation

Multiple cushioned vibration mounts and specially designed mounting clips isolate unit vibration from the mounting surface, minimizing operating noise. Composite molded drain pan construction further reduces sound transmission. Optional compressor sound shield available for ultra-quiet operation.

Rapid Drainage

Rust-free composite drain pan features three drain locations for rapid condensate removal. Integrated channels guide water directly to drain ports regardless of vessel heeling angle, ensuring reliable drainage in all conditions.

Compact Size

GT delivers high BTU output in a compact footprint optimized for space-constrained installations. Low-profile design with no blower-motor overhang and integrated drain pan provides flexibility in mounting locations and clearances.

Technical Specifications:

• Capacity (BTU/h) - 10,000
• Voltage (VAC) - 115
• Cycle (Hz) /Phase (Ph) - 60/1
• Full Load Amps (FLA) Cool (A) - 7.1
• Full Load Amps (FLA) Heat (A) - 9.0
• Full Load Amps (FLA) Blower (A) - 1.1
• Locked Rotor Amps (LRA) - 40
• Max. Circuit Breaker (A) - 25
• Min Circuit Ampacity (A) - 16
• CO2 Equivalent - 0.13
• Refrigerant Type - R454B
• Max Height (in/cm) - 12.2/31.0
• Max Width - 20.4/51.8
• Max Depth - 12.4/31.5
• Min. Duct Size Dia. (in/cm) - 6/15.2
• Min. Supply Air Grille (sq in/cm) - 60/387
• Min Return Air Grille (sq in/cm) - 100/645
• Net Weight (lbs/ kg) - 53.0/24.0
• Gross Weight (lbs/ kg) - 62.0/28.1

Dometic GT10 10,000 BTU Marine Air Conditioner with Digital Control Display delivers marine climate control with reverse cycle heating in a compact, installation-friendly package. Designed for boats and other marine applications, this 115V Dometic GT10 system provides 10,000 BTU/h capacity, integrated digital temperature control and system monitoring, and flexible blower positioning for adapting ductwork to space-constrained installations.

Built as a drop-in replacement for older air conditioning systems, the GT10 uses R454B refrigerant and operates at 50 or 60Hz. Its rotatable blower can adjust up to 270 degrees using a single adjustment screw, helping installers position ducting according to the vessel’s layout. The evaporator coil coating helps shed water more quickly, while the composite drain pan uses integrated channels and three drain locations to support rapid condensate removal, including when the boat is heeling.

Multiple cushioned vibration mounts and mounting clips help isolate vibration from the mounting surface to minimize operating noise. The composite molded drain pan further reduces sound transmission, and critical components remain accessible for simplified servicing. With its low-profile design, integrated drain pan and no blower-motor overhang, the Dometic GT10 offers practical flexibility for marine installations where available space and service access matter.

Key Features:

• 10,000 BTU/h capacity: Provides marine air conditioning and reverse cycle heating for applicable vessel installations.
• Integrated digital display: Supports temperature control and system monitoring through the included display.
• Flexible blower positioning: Rotates up to 270 degrees with one adjustment screw to accommodate ducting requirements.
• Rapid condensate drainage: Composite drain pan channels water to three drain locations, including when the vessel is heeling.
• Marine-focused construction: Evaporator coil coating helps shed water quickly, while cushioned mounts help minimize vibration and operating noise.
• Service-friendly design: Critical components are easily accessible for simplified servicing.

Product Details:

• Brand: Dometic
• Model: GT10
• Part Number: 9610007634
• Voltage: 115 VAC
• Frequency/Phase: 60 Hz, single phase
• Refrigerant: R454B
• Full Load Amps: 7.1 A cooling, 9.0 A heating, 1.1 A blower
• Maximum Circuit Breaker: 25 A
• Minimum Circuit Ampacity: 16 A
• Maximum Height: 12.2 inches
• Maximum Width: 20.4 inches
• Maximum Depth: 12.4 inches
• Minimum Duct Size: 6-inch diameter
• Minimum Supply Air Grille: 60 square inches
• Minimum Return Air Grille: 100 square inches
• Net Weight: 53 pounds
• Gross Weight: 62 pounds

Choose the Dometic GT10 for dependable marine climate control, flexible installation and straightforward service access in a complete 115V package.
