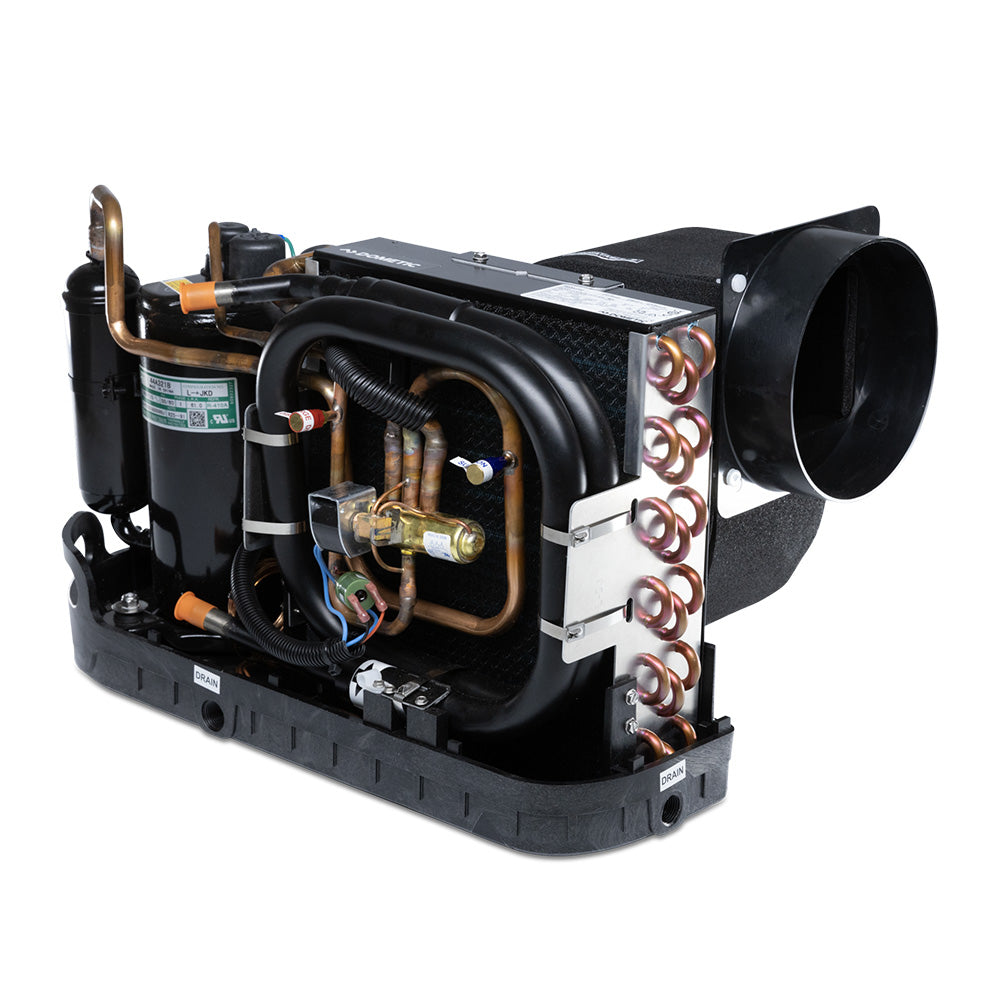

GT16 16,000 BTU Marine Air Conditioner with Digital Control Display - 115V
GT combines proven engineering with value-oriented positioning. Every unit includes an integrated digital display for temperature control and system monitoring. Available in 6,000, 10,000, and 16,000 BTU/h capacities with reverse cycle heating, GT delivers reliable climate performance in a complete package.
Designed as a drop-in replacement for older A/C systems, GT features rotatable blower positioning, R454B low GWP refrigerant, and compact dimensions for flexible installation. Multiple voltage configurations (115V/230V, 50/60Hz) provide compatibility across applications.
Features:
- R454B low GWP refrigerant
- Operates at 50 or 60Hz; lower voltage units will run 100-120 volts 50/60Hz and higher voltage units will run 208-240 volts 50/60Hz
- Special coating on the evaporator coil helps shed water more quickly, which minimizes corrosion
- Channels in drain pan guide water directly to multiple drain locations, regardless of boats heeling angle
- Rotate the blower up to 270 to find the perfect ducting angle using a single adjustment screw
- Critical components are easily accessible for simplified servicing
- Added VMD display
Quiet Operation
Multiple cushioned vibration mounts and specially designed mounting clips isolate unit vibration from the mounting surface, minimizing operating noise. Composite molded drain pan construction further reduces sound transmission. Optional compressor sound shield available for ultra-quiet operation.
Rapid Drainage
Rust-free composite drain pan features three drain locations for rapid condensate removal. Integrated channels guide water directly to drain ports regardless of vessel heeling angle, ensuring reliable drainage in all conditions.
Compact Size
GT delivers high BTU output in a compact footprint optimized for space-constrained installations. Low-profile design with no blower-motor overhang and integrated drain pan provides flexibility in mounting locations and clearances.
Technical Specifications:
- Capacity (BTU/h) - 16,000
- Voltage (VAC) - 115
- Cycle (Hz) /Phase (Ph) - 60/1
- Full Load Amps (FLA) Cool (A) - 10.3
- Full Load Amps (FLA) Heat (A) - 13.4
- Full Load Amps (FLA) Blower (A) - 1.6
- Locked Rotor Amps (LRA) - 61
- Max. Circuit Breaker (A) - 40
- Min Circuit Ampacity (A) - 25
- CO2 Equivalent - 0.15
- Refrigerant Type - R454B
- Max Height (in/cm) - 13.3/33.8
- Max Width - 21.5/54.6
- Max Depth - 13.3/33.8
- Min. Duct Size Dia. (in/cm) - 7/17.8
- Min. Supply Air Grille (sq in/cm) - 80/516
- Min Return Air Grille (sq in/cm) - 160/1032
- Net Weight (lbs/ kg) - 57.0/25.9
- Gross Weight (lbs/ kg) - 66.0/28.1
Dometic GT16 16,000 BTU Marine Air Conditioner with Digital Control Display delivers dependable climate control for boats and marine installations that need cooling and reverse-cycle heating in a compact package. With an integrated digital display for temperature control and system monitoring, this 115V marine air conditioner is designed as a drop-in replacement for older A/C systems while providing flexible installation options.
The GT16 uses R454B low-GWP refrigerant and operates at 50 or 60Hz. Its rotatable blower can adjust up to 270 degrees with a single adjustment screw, helping installers position ducting for the selected mounting arrangement. A coated evaporator coil helps shed water more quickly to minimize corrosion, while the composite drain pan uses guided channels and multiple drain locations to support rapid condensate removal when a vessel is heeling.
Quiet operation is supported by cushioned vibration mounts, specially designed mounting clips, and a composite molded drain pan that helps reduce sound transmission. Critical components are accessible for simplified servicing, and the low-profile design avoids blower-motor overhang for added flexibility in space-constrained installations. The GT16 also includes an added VMD display and is suitable for marine HVAC replacement and new installation applications where 16,000 BTU/h capacity is required.
Key Features:
-
16,000 BTU/h capacity: Provides marine cooling and reverse-cycle heating for compatible vessel applications.
-
Integrated digital control display: Supports temperature control and system monitoring from the unit.
-
Flexible blower positioning: Rotates up to 270 degrees to help accommodate different ducting angles.
-
Rapid condensate drainage: Composite drain pan channels guide water to three drain locations regardless of vessel heeling angle.
-
Service-friendly construction: Critical components are easily accessible for simplified servicing.
-
R454B refrigerant: Uses a low-GWP refrigerant specified for the GT16 marine air conditioner.
Product Details:
-
Brand: Dometic
-
Model: GT16
-
Part Number: 9610007636
-
Product type: Marine air conditioner with reverse-cycle heating
-
Capacity: 16,000 BTU/h
-
Voltage: 115 VAC
-
Cycle/phase: 60Hz, single phase; lower-voltage units operate at 100–120 volts and 50/60Hz
-
Refrigerant: R454B
-
Full-load amps: 10.3A cooling, 13.4A heating, and 1.6A blower
-
Maximum circuit breaker: 40A
-
Minimum circuit ampacity: 25A
-
Maximum dimensions: 18.9 in. high x 18.9 in. wide x 18.9 in. deep
-
Minimum duct diameter: 7 in.
-
Minimum supply air grille: 80 sq. in.
-
Minimum return air grille: 160 sq. in.
-
Net weight: 57 lb.
-
Gross weight: 66 lb.
Choose the Dometic GT16 for compact, serviceable marine climate control with flexible ducting, dependable drainage, and integrated digital operation.
|
