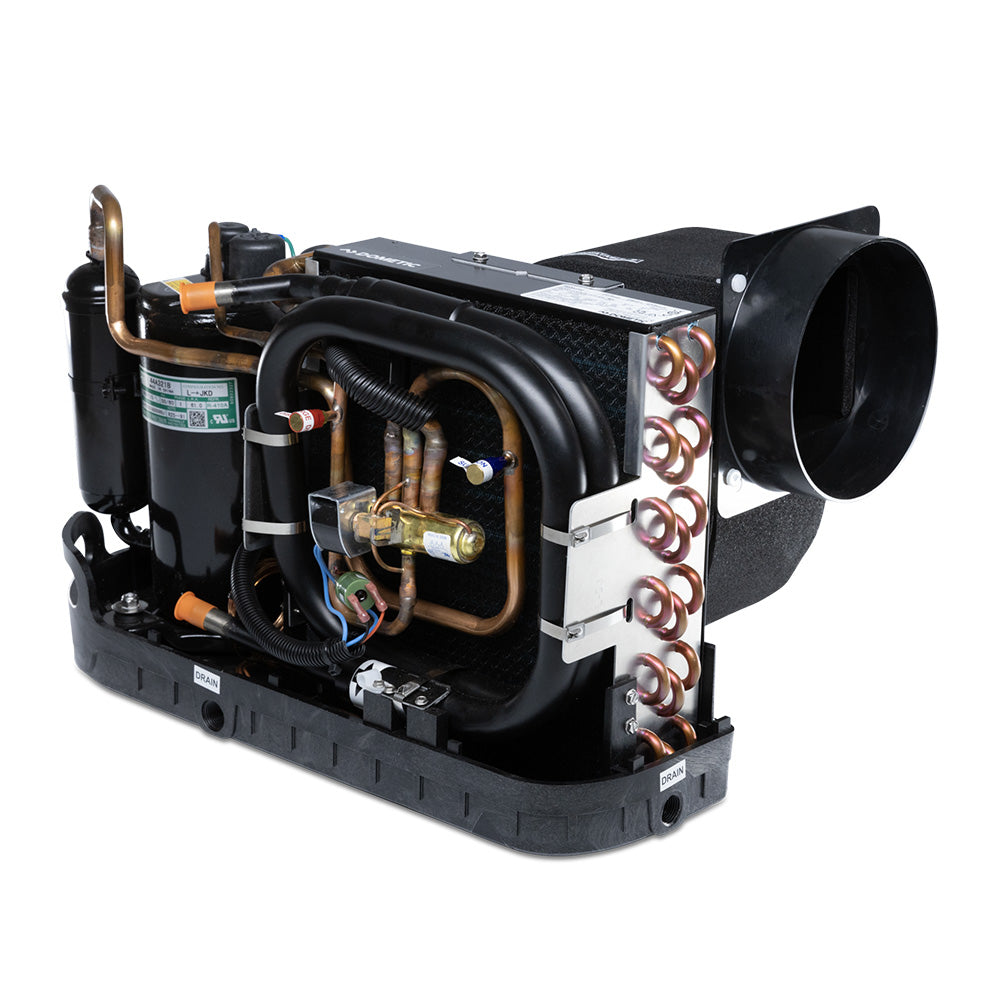

GT6 6,000 BTU Marine Air Conditioner with Digital Control Display - 115V
GT combines proven engineering with value-oriented positioning. Every unit includes an integrated digital display for temperature control and system monitoring. Available in 6,000, 10,000, and 16,000 BTU/h capacities with reverse cycle heating, GT delivers reliable climate performance in a complete package.
Designed as a drop-in replacement for older A/C systems, GT features rotatable blower positioning, R454B low GWP refrigerant, and compact dimensions for flexible installation. Multiple voltage configurations (115V/230V, 50/60Hz) provide compatibility across applications.
Features:
- R454B low GWP refrigerant
- Operates at 50 or 60Hz; lower voltage units will run 100-120 volts 50/60Hz and higher voltage units will run 208-240 volts 50/60Hz
- Special coating on the evaporator coil helps shed water more quickly, which minimizes corrosion
- Channels in drain pan guide water directly to multiple drain locations, regardless of boats heeling angle
- Rotate the blower up to 270 to find the perfect ducting angle using a single adjustment screw
- Critical components are easily accessible for simplified servicing
- Added VMD display
Quiet Operation
Multiple cushioned vibration mounts and specially designed mounting clips isolate unit vibration from the mounting surface, minimizing operating noise. Composite molded drain pan construction further reduces sound transmission. Optional compressor sound shield available for ultra-quiet operation.
Rapid Drainage
Rust-free composite drain pan features three drain locations for rapid condensate removal. Integrated channels guide water directly to drain ports regardless of vessel heeling angle, ensuring reliable drainage in all conditions.
Compact Size
GT delivers high BTU output in a compact footprint optimized for space-constrained installations. Low-profile design with no blower-motor overhang and integrated drain pan provides flexibility in mounting locations and clearances.
Technical Specifications:
- Capacity (BTU/h) - 6,000
- Voltage (VAC) - 115
- Cycle (Hz) /Phase (Ph) - 60/1
- Full Load Amps (FLA) Cool (A) - 4.4
- Full Load Amps (FLA) Heat (A) - 5.8
- Full Load Amps (FLA) Blower (A) - 0.8
- Locked Rotor Amps (LRA) - 25.5
- Max. Circuit Breaker (A) - 15
- Min Circuit Ampacity (A) - 10
- CO2 Equivalent - 0.11
- Refrigerant Type - R454B
- Max Height (in/cm) - 11.4/29.0
- Max Width - 17.8/45.2
- Max Depth - 10.7/27.2
- Min. Duct Size Dia. (in/cm) - 4/10.16
- Min. Supply Air Grille (sq in/cm) - 32/206
- Min Return Air Grille (sq in/cm) - 64/413
- Net Weight (lbs/ kg) - 38.0/17.2
- Gross Weight (lbs/ kg) - 44.0/20.0
Dometic GT6 6,000 BTU Marine Air Conditioner with Digital Control Display, 115V
The Dometic GT6 is a compact marine air conditioner designed for boat owners and marine installations that need dependable cooling and reverse-cycle heating in a space-conscious package. With 6,000 BTU/h capacity, an integrated digital control display, and a 115V electrical configuration, this unit provides convenient temperature control and system monitoring for applicable onboard climate-control systems.
Engineered as a drop-in replacement for older air conditioning systems, the GT6 supports flexible installation with a blower that rotates up to 270 degrees for ducting alignment. Its R454B refrigerant, coated evaporator coil, composite drain pan, and accessible critical components are designed to support practical marine installation and servicing. The drain pan includes multiple drain locations and integrated channels to help direct condensate during vessel heel angles.
Key Features:
-
6,000 BTU/h capacity: Provides marine cooling and reverse-cycle heating for applicable boat climate-control installations.
-
Integrated digital control display: Makes temperature control and system monitoring readily accessible.
-
Flexible blower positioning: Rotates up to 270 degrees to help accommodate different ducting angles.
-
Marine-focused drainage: Composite drain pan channels water toward multiple drain locations for rapid condensate removal.
-
Quieter installation design: Cushioned vibration mounts, mounting clips, and a molded composite drain pan help minimize vibration and sound transmission.
-
Service-friendly construction: Critical components are easily accessible for simplified servicing.
Product Details:
-
Brand: Dometic
-
Model: GT6
-
Part Number: 9610007632
-
Capacity: 6,000 BTU/h
-
Voltage: 115 VAC
-
Cycle/phase: 60 Hz / 1 phase
-
Refrigerant: R454B
-
Maximum height: 11.4 inches
-
Maximum width: 17.8 inches
-
Maximum depth: 10.7 inches
-
Minimum duct size: 4-inch diameter
-
Minimum supply air grille: 32 square inches
-
Minimum return air grille: 64 square inches
-
Net weight: 38 pounds
-
Maximum circuit breaker: 15 amps
-
Minimum circuit ampacity: 10 amps
Choose the Dometic GT6 for a compact, serviceable marine air conditioner with integrated digital controls and flexible installation features.
