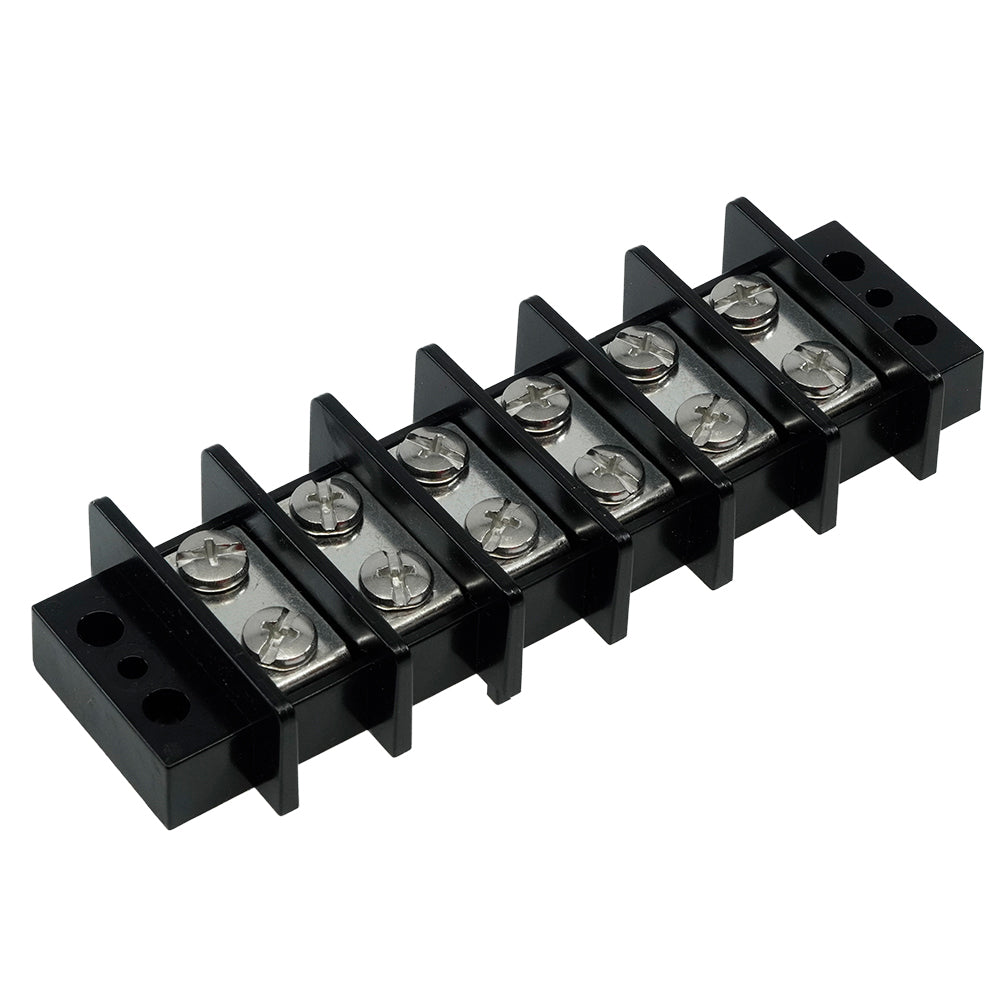

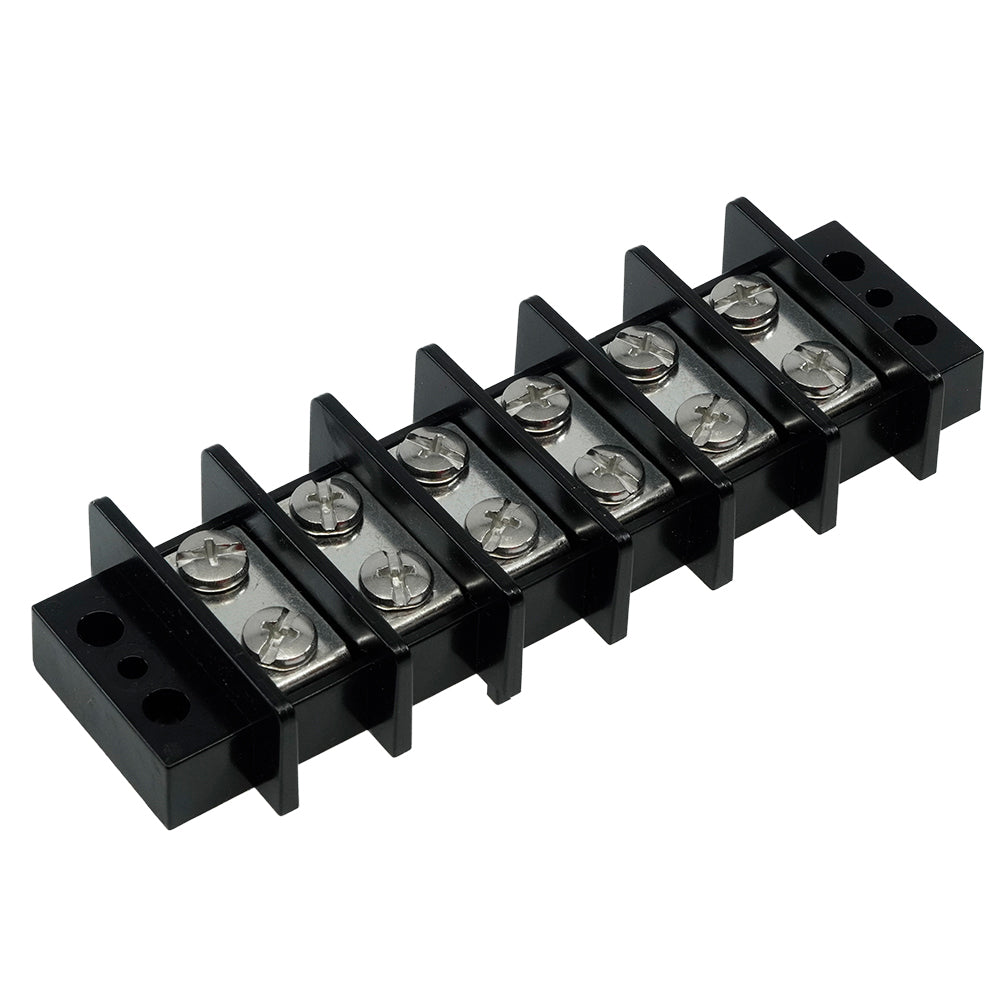

Egis Mobile Electric 30 Amp 6-Circuit Marine-Grade Terminal Block, Copper Alloy, 125V AC/DC

Terminal Block - 30 Amp - 6 Circuit

• Marine-grade materials ensure long-lasting reliability in harsh environment applications
• Screw terminal connection pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair
• 125 Volt AC or DC rated easily supports 12, 24, 36, 48 Vdc systems, as well as 120/240 Vac applications

Features:

• Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminal blocks are available in 2, 4, 6, 8, 10, or 12 matching connection pairs.
• Marine-grade materials ensure long-lasting reliability in harsh environment applications. Tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials deliver a robust solution.
• 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
• Anti-rotation ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
• Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
• Bullet-proof Construction: High-temperature insulation material, tin-plated copper alloy conductors, and stainless steel hardware.
• 4-Year Warranty: We stand behind our products ability to meet your needs.

Specifications:

• Continuous Current (Amps): 65
• Max Voltage (Vac/Vdc): 250
• Dielectric Strength: 2000Vac
• Hardware Material: Stainless Steel
• CE Marked: Yes
• ROHS Compliant: Yes

The Egis Mobile Electric 30 Amp 6-Circuit Terminal Block is designed for reliable electrical connections in demanding marine and harsh environment applications. Crafted with marine-grade materials, this terminal block ensures long-lasting performance and safety in both AC and DC systems, making it ideal for boat wiring, industrial automation, and other challenging settings. Its robust construction features tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation, providing durability and corrosion resistance essential for marine and outdoor use. The terminal block's screw terminal connection pairs are engineered to connect one input and one output screw to separate copper alloy bus bars, simplifying wiring and maintenance while reducing the risk of short circuits or ground faults. With a rated voltage of 125 volts AC or DC and a continuous current capacity of 65 amps, this terminal block supports 12, 24, 36, and 48 Vdc systems as well as standard 120/240 Vac applications, making it versatile for a wide range of electrical setups. Its anti-rotation ribs on conductor strips help prevent wire terminal rotation during installation or strain, ensuring secure, stable connections even in vibration-prone environments. Additionally, high insulation walls protect ring terminal splices from accidental shorting, enhancing safety and reliability. Built with durability and ease of use in mind, the Egis terminal block boasts a bullet-proof construction and comes with a 4-year warranty, reflecting the brand’s confidence in its performance. Whether used for marine wiring, industrial automation, or other high-demand electrical projects, this terminal block delivers dependable, corrosion-resistant, and easy-to-maintain connections that meet rigorous standards.
