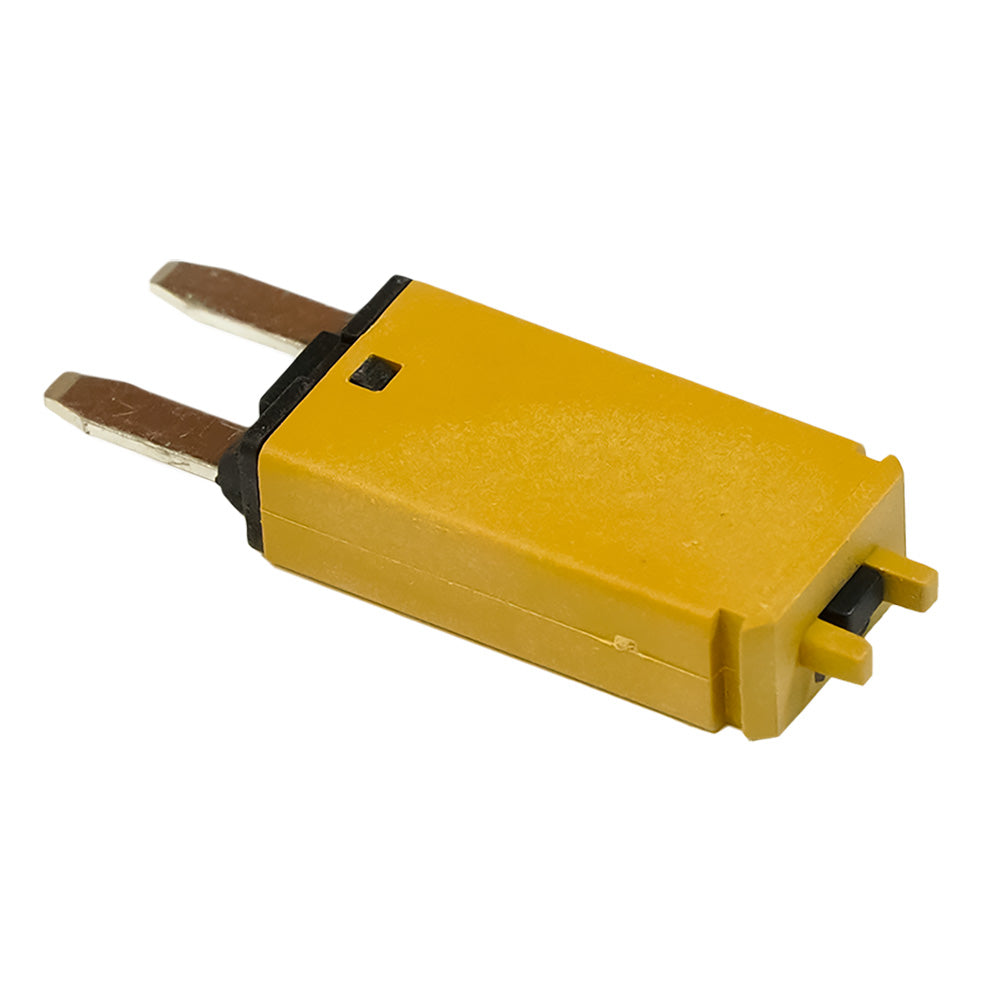

Egis Mobile Electric ATM/MINI 5 Amp Circuit Breaker - Type 3 for Mobile Electrical Systems

ATM/MINI 5 AMP Circuit Breaker - Type 3

Features:

• Extremely Compact Circuit Breakers significantly reduce the space required to implement resettable circuit protection in mobile electrical systems.
• 32 Max VDC Rating easily supports 12- and 24-VDC systems.
• Manual push-to-reset Type 3 operation allows simple re-closing of the circuit breaker after any potential fault situations are investigated and cleared.
• Color-coded enclosure variations, depending on continuous current, help reduce installation errors and ensure correct replacements.
• Harsh Environment design with high temperature materials and tin-plated copper alloy conductors.
• Supports ABYC Compliant Systems when wire sizes are reduced for branch circuit distribution.

The Egis Mobile Electric ATM/MINI 5 Amp Circuit Breaker, Part Number 4720-05, offers reliable and compact circuit protection designed specifically for mobile electrical applications. This Type 3 breaker features a manual push-to-reset operation, allowing for easy re-engagement after fault conditions are investigated and cleared, ensuring minimal downtime and enhanced safety. Its extremely compact design significantly reduces space requirements, making it an ideal choice for systems where space optimization is critical, such as in RVs, boats, or other mobile platforms. The breaker's 32 VDC maximum rating supports both 12- and 24-volt DC systems, providing versatile power management options for various mobile setups. Its durable construction includes high-temperature materials and tin-plated copper alloy conductors, ensuring reliable performance even in harsh environments. Color-coded enclosure variations, based on continuous current ratings, help facilitate correct installation and reduce wiring errors, making maintenance straightforward and efficient. Supporting ABYC compliance when wire sizes are reduced for branch circuit distribution, this circuit breaker delivers both safety and versatility. Whether upgrading existing systems or designing new mobile electrical setups, the Egis ATM/MINI 5 Amp Circuit Breaker provides a dependable, space-saving solution that combines ease of use with high-performance standards, ensuring your electrical system remains protected under demanding conditions.

Features:

• Extremely compact design reduces space needed for circuit protection in mobile systems.

• Supports 32 VDC maximum voltage, suitable for 12- and 24-volt systems.

• Manual push-to-reset operation enables quick re-engagement after fault clearance.

• Color-coded enclosures by current rating aid installation accuracy and correct replacements.

• Constructed with high-temperature resistant materials and tin-plated copper alloy conductors for durability.

• Supports ABYC compliance for safe branch circuit distribution when wire sizes are minimized.
