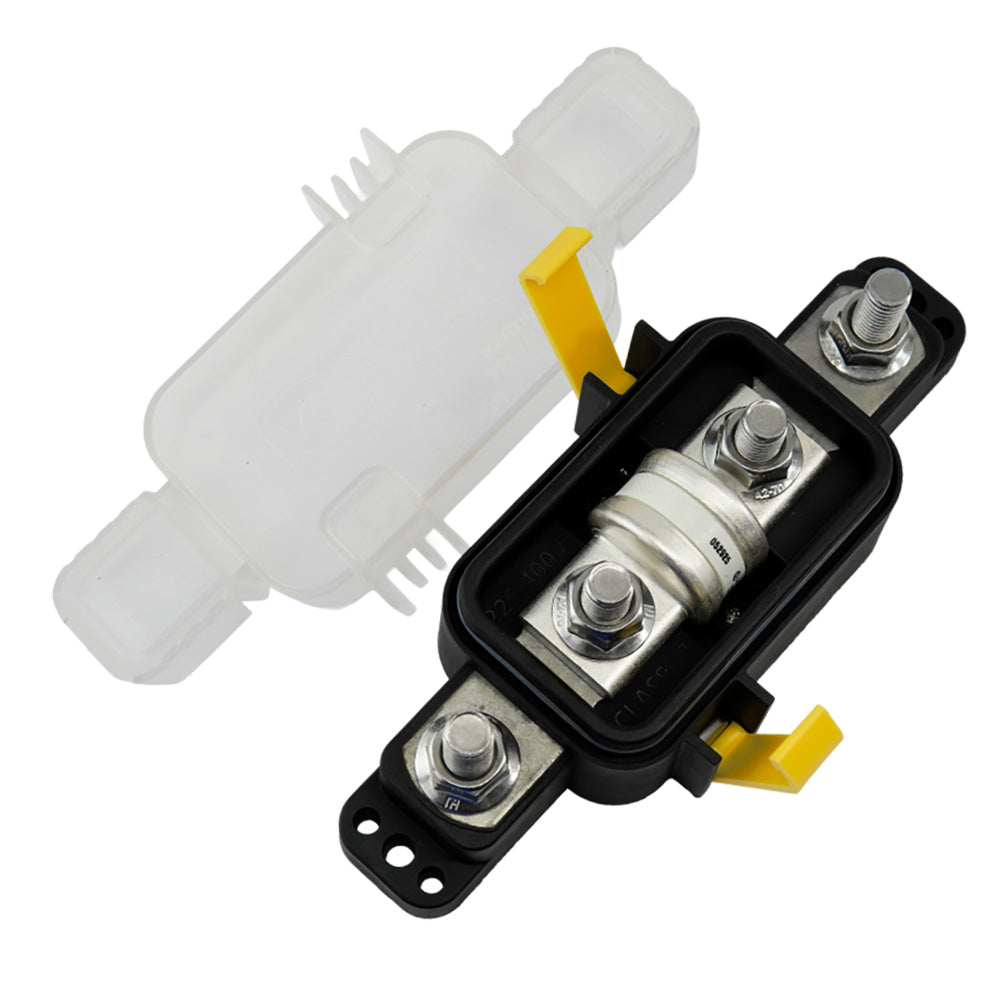

Egis Mobile Electric Class T Fuse Block 225-400A Sealed - Heavy Duty, Ignition Protected, IP66/IP67/IP6K9K Rated

Class T Fuse Block 225-400 A - Sealed

Applications/Problems This Solves:

• Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, which would otherwise land on the fuse tab itself.
• Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats.

Features:

• Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop.
• Stainless Steel Self-Locking Hardware ensures robust connections long-term connection reliability.
• Bulletproof construction from glass-filled nylon delivers the highest longevity in demanding environments.
• 4 Year Warranty

Specifications:

• Maximum Amperage: 225-400A
• Max Voltage: 80 VDC
• Ingress Protection Ratings: IP66, IP67, IP6K9K
• Mounting Holes: 4x #10 (M5) 2x 1/4 (M6)
• Mounting Screw Max Torque: 50 in-lbs (5.5 N-m)
• Busbar Material: Tin-Plated Copper

The Egis Mobile Electric Class T Fuse Block, part number 3912, is engineered for high-current applications requiring reliable and secure fuse protection. Designed to handle amperages from 225 to 400 amps, this sealed fuse block offers exceptional durability and electrical performance in demanding environments. Its robust construction features a glass-filled nylon body and a tin-plated copper busbar that ensures minimal voltage drop and superior conductivity, making it ideal for heavy-duty electrical systems. With its sealed design and high ingress protection ratings (IP66, IP67, IP6K9K), the fuse block is well-suited for harsh conditions, including marine, industrial, and hazardous gaseous environments, supporting safe installation in LPG stations or gas-powered vessels. The fuse block's separate stud connections accommodate heavier gauge cables, facilitating easier wiring and reducing wear on terminals, which enhances long-term reliability. Features such as stainless steel self-locking hardware guarantee secure, vibration-resistant connections, while the overall construction ensures longevity even in corrosive or challenging environments. The fuse block is designed for easy mounting with four #10 (M5) and two 1/4 inch (M6) mounting holes, with a recommended torque of 50 in-lbs to ensure firm attachment. Egis Mobile Electric provides a 4-year warranty on this product, underscoring its quality and durability. Whether used in automotive, marine, or industrial applications, this fuse block ensures safe, dependable protection for high-current circuits, supporting peace of mind in critical systems and demanding conditions. Please note, as per manufacturer specifications, this product complies with PROP 65 regulations, ensuring safety and environmental standards are met.

Features:

• Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop

• Stainless steel self-locking hardware ensures robust, long-term connection reliability

• Bulletproof construction from glass-filled nylon provides high durability in demanding environments

• Sealed design with ingress protection ratings of IP66, IP67, IP6K9K for use in harsh conditions

• Separate stud connections accommodate heavier gauge cables for easier wiring and reduced terminal wear

• Supports installation in potentially hazardous gaseous environments, such as LPG or gas boats

• Mounting hardware includes four #10 (M5) and two 1/4 inch (M6) holes with a maximum torque of 50 in-lbs

• Backed by a 4-year warranty ensuring quality and long-term performance
