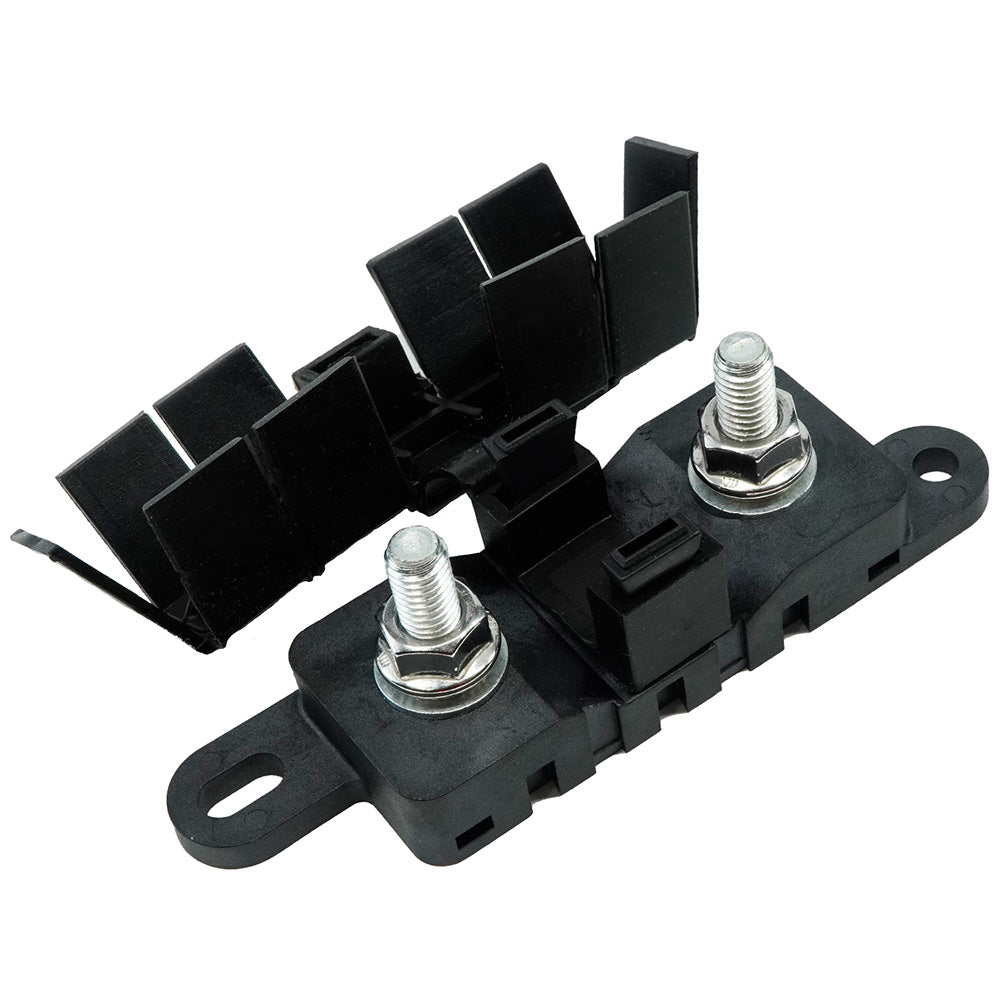

Egis Mobile Electric Mega Fuse Block M8 with Stainless Self-Locking Hardware and Black Cover

Mega Fuse Block M8 Stainless Self-Locking Hardware with Black Cover

Features:

• Designed for Harsh Environments with a high-temperature composite base and stainless-steel stud and nut hardware for maximum protection from corrosion.
• 58 Max Vdc Ratingeasily supports 12, 24, 36, and 48 nominal Vdc systems.
• Flexible Protective Cover ensures full 360-degree access for cables/terminals to attach to fuse studs, while preventing inadvertent short circuits.
• Serrated Flange Lock Nuts improve resistance to cable terminal loosening in high-vibration environments.
• Stackable Side by Side design via interlocking dovetail features in the composite base.
• Supports Common Input Busbars when stacked side-by-side due to longer input stud lengths.
• Wire Tie Slots in Base allow optional secure tie-wrap mounting.

The Egis Mega Fuse Block M8 is engineered for demanding environments where durability and reliability are crucial. Featuring a high-temperature composite base and stainless-steel stud and nut hardware, this fuse block offers exceptional resistance to corrosion and harsh conditions. Its robust construction makes it an ideal solution for industrial, automotive, and heavy-duty applications that require secure electrical connections and long-lasting performance. The fuse block supports nominal Vdc systems up to 58 volts, making it versatile for various voltage configurations. The flexible protective cover allows full 360-degree access to cables and terminals, simplifying installation and maintenance while preventing accidental short circuits. Serrated flange lock nuts enhance resistance to loosening in high-vibration environments, ensuring a secure connection even in rugged conditions. The stackable design with interlocking dovetail features enables side-by-side mounting, maximizing space efficiency and supporting common input busbars through longer input studs. Wire tie slots integrated into the base provide optional secure mounting for additional cable management. Overall, the Egis Mega Fuse Block M8 with stainless self-locking hardware and black cover delivers a combination of durability, ease of use, and safety for demanding electrical systems, making it a reliable choice for professional installers and maintenance teams alike.

Features:

• Designed for harsh environments with a high-temperature composite base and stainless-steel hardware for maximum corrosion resistance.

• Supports up to 58 volts DC, suitable for 12V, 24V, 36V, and 48V systems.

• Flexible protective cover provides full access for cables and terminals while preventing short circuits.

• Serrated flange lock nuts improve resistance to loosening in high-vibration settings.

• Stackable side-by-side design with interlocking dovetail features for efficient space utilization.

• Supports common input busbars with longer input stud lengths when stacked.

• Wire tie slots in the base allow for optional cable management and secure mounting.
