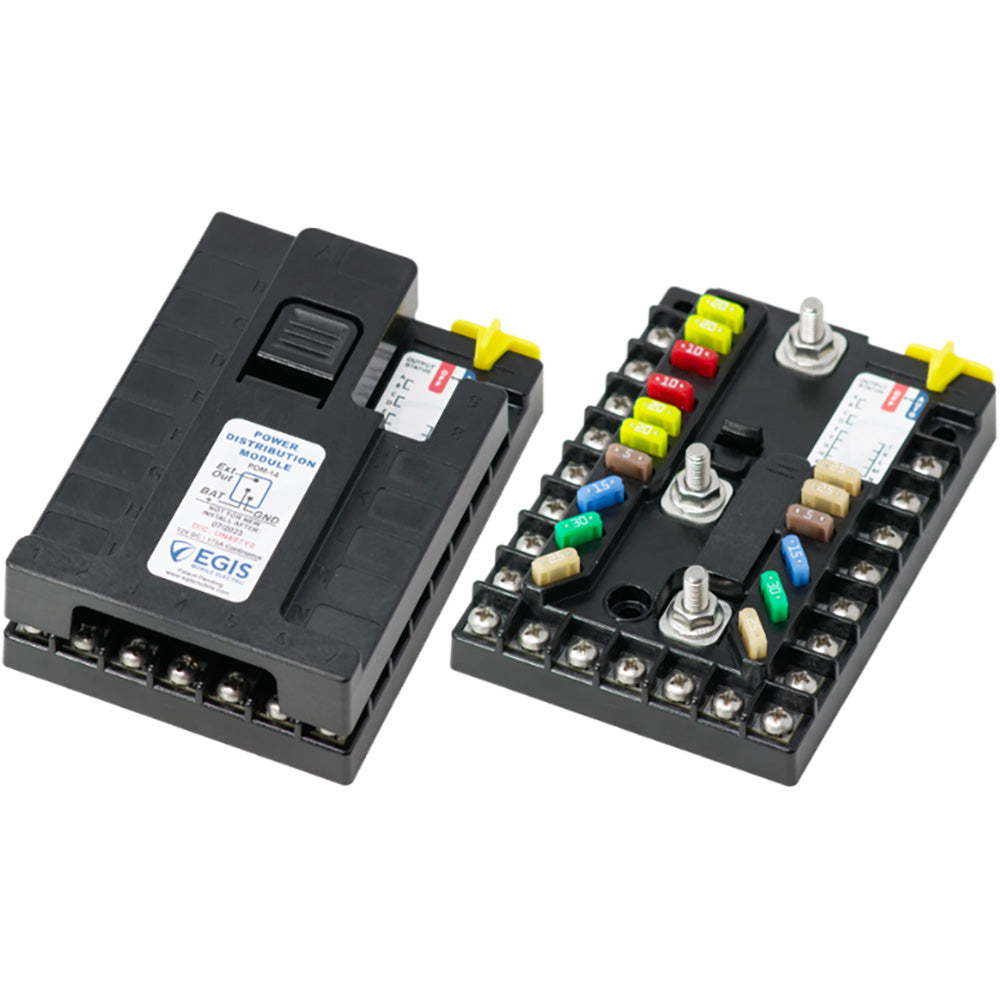

Egis Mobile Electric PDM 14 Circuit + Ground 175A 12V with Kill Switch

PDM 14 Circuit + Ground 175A 12V with Kill Switch

Designed for professional installers, this is a compact solution that combines battery protection, power switching, circuit protection, a ground bus, and an optional manual override switch. This includes three 45-amp high-power circuits and three output groups, which can be independently set to 24/7, ignition switched, or time delay. Expandable up to 31 fused outputs with RT or CT fuse blocks.

Features:

• For 12-volt systems, the allowed voltage range is 8-18 VDC
• Total continuous output limit: 175 amps
• Three load groups with a continuous output of 75-115 amps
• Optional time delay 0-10 hrs
• Optional low voltage protection 11-12.2 volts
• Offload current draw 1.3 mA

The Egis Mobile Electric PDM 14 Circuit + Ground offers a comprehensive power management solution designed for professional installers working with 12-volt systems. This compact device combines essential functions including battery protection, power switching, circuit protection, a ground bus, and an optional manual override kill switch. Its robust design features three 45-amp high-power circuits and three output groups, which can be independently configured for 24/7 operation, ignition switching, or time delay, providing versatile control tailored to your specific application. The system is expandable up to 31 fused outputs using RT or CT fuse blocks, making it ideal for complex vehicle or equipment setups.

Features:

• Voltage range: 8-18 VDC suitable for 12-volt systems

• Total continuous output limit of 175 amps for reliable power distribution

• Three load groups with a combined continuous output of 75-115 amps

• Optional time delay feature adjustable from 0 to 10 hours for flexible operation timing

• Low voltage protection at 11-12.2 volts to safeguard your system

• Minimal offload current draw of 1.3 mA for energy efficiency
