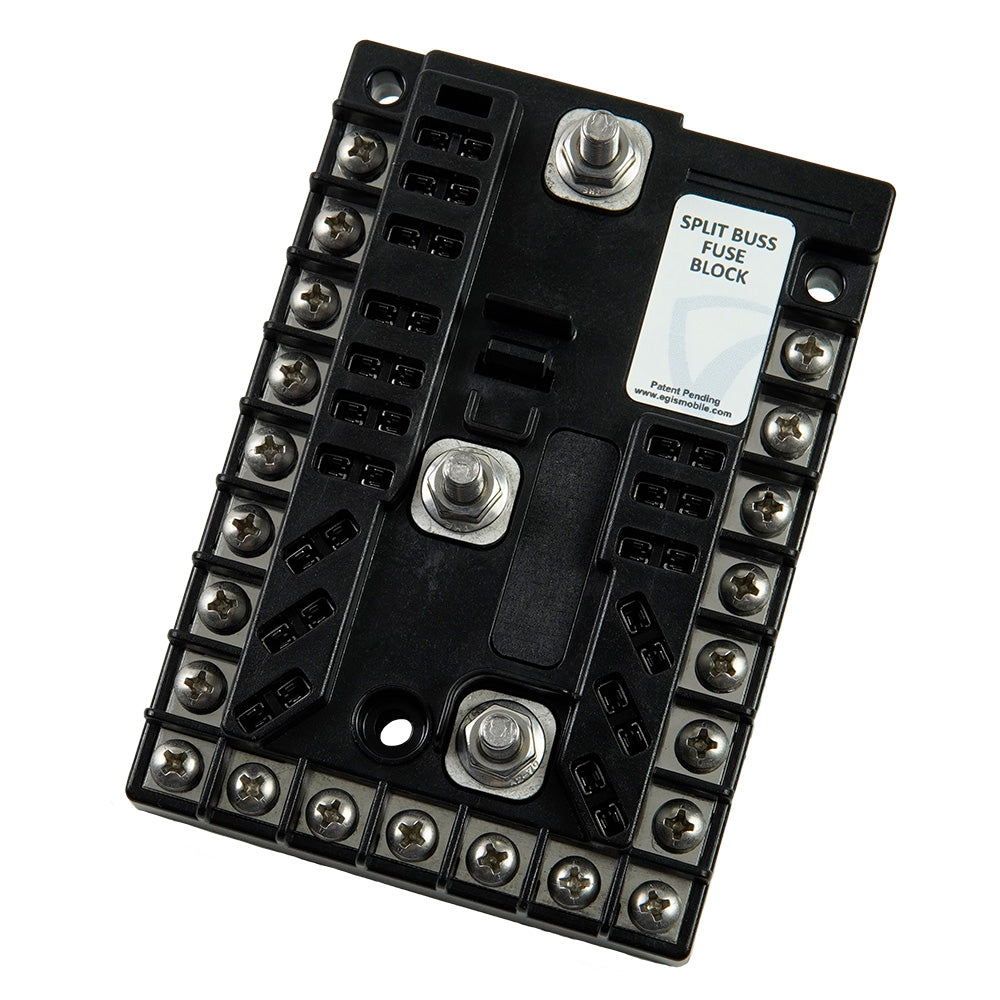

Egis Mobile Electric Split Buss Fuse Block 13 Circuit + Ground 200A

Split Buss Fuse Block 13 Circuit + Ground 200A

Features:

• Compact Solution Combines Circuit Protection And Ground Return Buss Into One Installer-Friendly Device.
• 200A Continuous Current, 100A Maximum Per Input
• Three (3) Fused High-Amp (1-50A) Outputs
• Allow Protection Of All Circuits with One Solution.
• Two (2) Fused Output Groups
• Stainless Steel Self-Locking Hardware
• Expandable Up to 31 Fused Outputs with RT or CT series Fuse Blocks

The Egis Mobile Electric Split Buss Fuse Block with 13 circuits and ground provides a reliable and space-saving solution for distributing electrical power in your vehicle or equipment. Designed for ease of installation, this fuse block consolidates circuit protection and ground return functions into a single, compact device, streamlining your wiring setup and reducing clutter. With a continuous current rating of 200 amps and a maximum of 100 amps per input, it is suitable for high-demand applications requiring robust power management.

The fuse block features three high-amp fused outputs ranging from 1 to 50 amps, allowing you to protect multiple circuits with dedicated fuse ratings. It also includes two fused output groups, enabling organized and efficient circuit segregation. Constructed with stainless steel self-locking hardware, this fuse block offers durability and secure connections in demanding environments. Its expandable design allows you to add up to 31 fused outputs using compatible RT or CT series fuse blocks, providing scalability for growing electrical systems.

Ideal for trucks, RVs, and off-road vehicles, the Egis Split Buss Fuse Block ensures comprehensive circuit protection with a simple, installer-friendly design. Whether you're upgrading an existing system or designing a new electrical layout, this fuse block offers superior performance, durability, and flexibility to meet your power distribution needs. Trust in the Egis Mobile Electric brand for quality electrical components built to last in challenging conditions.

Features:

• Compact solution combining circuit protection and ground return bus into one device

• 200A continuous current, 100A maximum per input

• Three fused high-amp outputs (1-50A)

• Allows protection of all circuits with a single device

• Two fused output groups for organized wiring

• Stainless steel self-locking hardware for durability

• Expandable up to 31 fused outputs with RT or CT series fuse blocks
