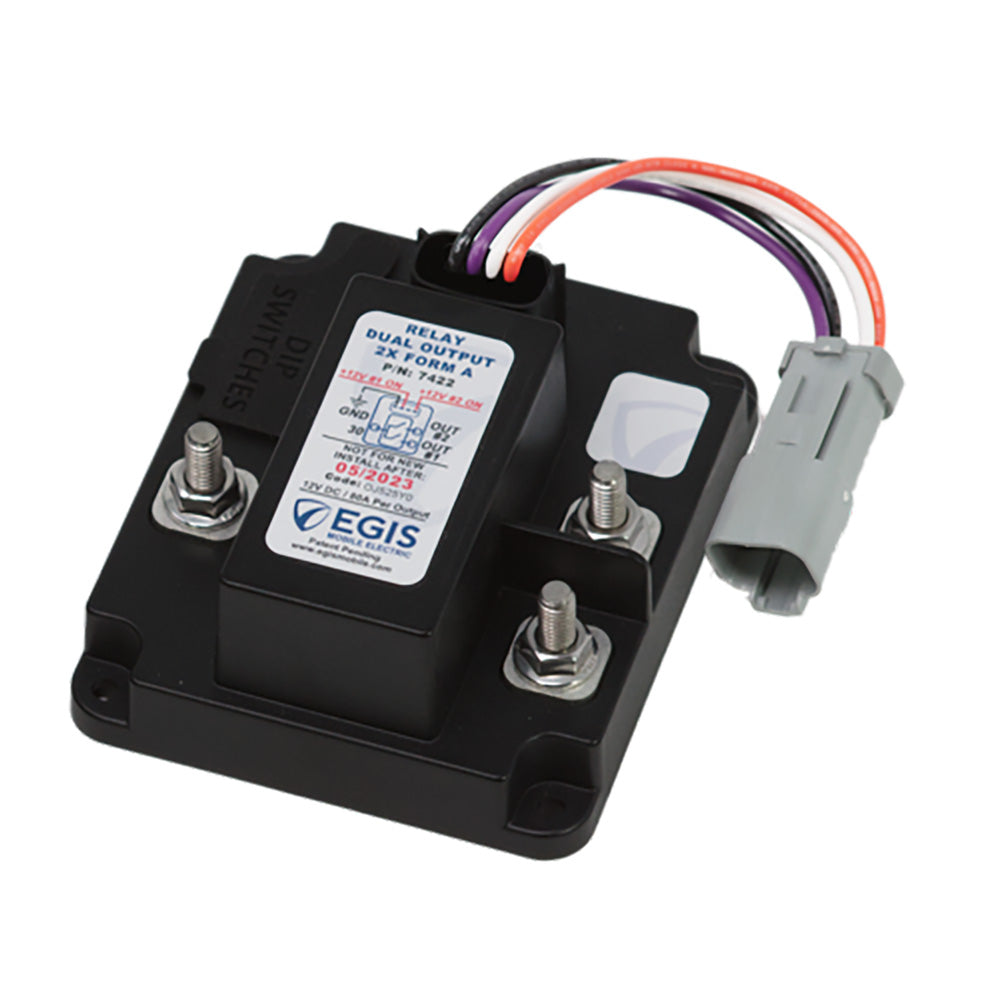

Egis Mobile Electric TH3 Dual 80A Relay Kit for 12V Systems

TH3 Dual Relay 2 x 80A - 12V

Features:

• Replaces Manual Battery Switches: Reduces battery cable run lengths and resulting voltage drop
• Connect to the Ignition Signal for simple battery charge management between two batteries or for simple auxiliary load disconnection.
• Connect to TH Series Automatic Charging Relays or Time Delay Relays to provide an additional isolated/switched output or to extend current-carrying capability
• Simple Robust Installation:Sealed MX-150 plug/harness with 2ft control wires included. Reduces install time/costs. The optional output bus bar provides a simple, compact connection to the RT or CT fuse block product families.
• Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Stainless steel self-locking hardware
• Single or Dual Split Output Optionsprovide flexibility for different electrical system requirements
• Integral Diode Suppression reduces voltage spikes on control lines during switching

The Egis Mobile Electric TH3 Dual Relay (Part Number 7422) offers a reliable solution for managing high-current electrical loads in automotive and truck applications. Designed with durability in mind, this sealed relay features two 80-amp switching channels, making it suitable for a variety of electrical control tasks. Its robust construction with high-temperature materials allows for installation in demanding environments, and stainless steel self-locking hardware ensures long-lasting performance.

Ideal for replacing manual battery switches, the TH3 relay reduces cable run lengths and minimizes voltage drop, enhancing overall electrical efficiency. It can be connected to the ignition signal to facilitate simple battery charge management between two batteries or to disconnect auxiliary loads seamlessly. The relay integrates easily with TH Series Automatic Charging Relays or Time Delay Relays, providing additional isolated or switched outputs for expanded functionality.

Installation is straightforward thanks to the sealed MX-150 plug and harness, along with 2-foot control wires included in the package. An optional output bus bar simplifies connections to fuse blocks, reducing setup time and costs. The dual output configuration offers flexibility to meet various electrical system requirements, while integral diode suppression helps mitigate voltage spikes during switching events, protecting sensitive electronics.

Whether you need to isolate batteries, manage auxiliary loads, or extend current-carrying capacity, the Egis TH3 Dual Relay delivers dependable performance and easy integration for your vehicle’s electrical system.

Features:

• Replaces manual battery switches, reducing cable run lengths and voltage drop

• Connects to ignition signal for simplified battery charge management

• Compatible with TH Series Automatic Charging Relays or Time Delay Relays for additional outputs

• Sealed MX-150 plug and harness with 2-foot control wires for quick and easy installation

• Constructed with high-temperature materials and stainless steel hardware for durability

• Offers single or dual split output options to suit various electrical needs

• Integral diode suppression reduces voltage spikes during switching
