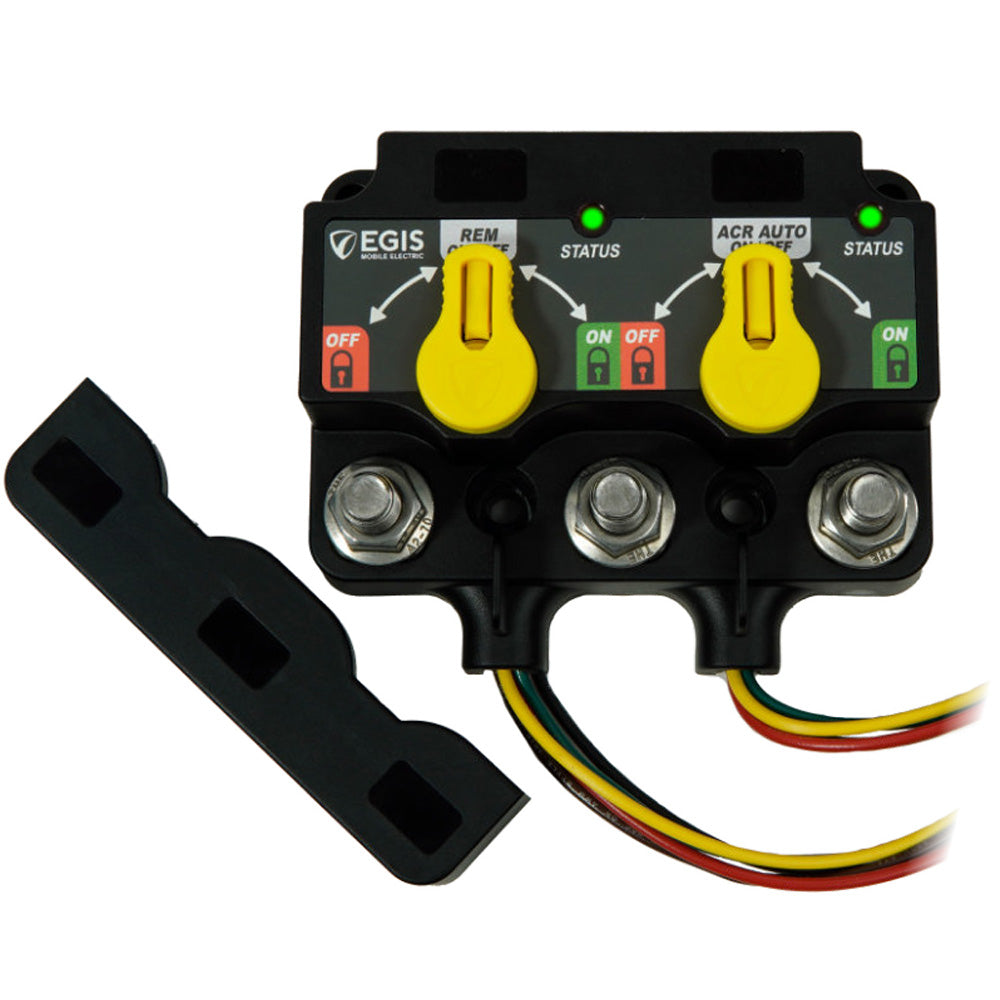

Egis Mobile Electric XD Dual Flex L ACR Relay with Knobs - Tinned Wires

XD Dual Flex L (ACR) -(Relay) with Knobs - Tinned Wires

Designed for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems Where Required Charge / Discharge Voltage Settings Require Higher Available Settings

500 Amp Continuous Capability Per Relay / Extremely Compact Footprint

Available With or Without Intuitive Front Facing Manual Override Knobs with Ability to Lock Relays ON or OFF for Servicing

Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect

Remote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or to Allow Automatic Operation Based on Voltage Sensing

Local and Remote LED Indicators Per Relay

Mechanical-Only Battery Switch Option for One or Multiple Relay Positions

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control option simplifies operation and awareness of state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.
• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Plug Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
• 4 Year Industry-Leading Warranty

The Egis Mobile Electric XD Dual Flex L ACR Relay offers advanced control and reliability for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate battery systems where precise charge and discharge voltage settings are essential. Designed with high-current capabilities, each relay supports up to 500 amps continuously, making it suitable for demanding electrical applications in automotive, RV, or marine environments. Its compact footprint allows for easy installation in tight spaces, while the option for manual override knobs provides immediate control and safety during servicing. These knobs can be locked in ON or OFF positions, ensuring secure operation when needed, and facilitate quick manual intervention without disrupting system operation.
Flexibility is a key feature of this relay system, with configurable functions such as battery disconnect, voltage sensing, or low voltage disconnect achieved via simple dip switches. Remote inputs enable automated control, allowing the relay to be forced ON, OFF, or operate automatically based on voltage sensing, enhancing system automation and management. Local and remote LED indicators provide real-time status updates, ensuring that operators can easily monitor relay states at a glance. An optional mechanical-only battery switch offers an additional layer of manual control for one or multiple relay positions, adding robustness and versatility to the system.
Constructed with rugged materials, the Egis XD Dual Flex L is sealed to IP67/IP6K9K standards, ensuring protection against dust, water, and high-temperature environments. Stainless steel cable lug studs and large mounting holes compatible with standard hardware make installation straightforward. Its intuitive manual control simplifies operations, reducing setup time and minimizing errors, a feature that sets it apart from competitive solutions. The relay's programmable nature via dip switches allows OEMs and installers to tailor its function precisely to their system requirements, whether as a relay, battery disconnect, or voltage sensing device.
This relay system is designed for seamless compatibility with legacy products, featuring plug-and-play connectivity with existing relay systems. Its bi-stable solenoid design reduces off-state current by up to 95%, significantly improving overall system efficiency. Lightweight yet durable, it offers a four-year industry-leading warranty, giving confidence in long-term performance and durability. Whether upgrading an existing system or designing a new one, the Egis XD Dual Flex L ACR Relay provides reliable, flexible, and efficient power management for advanced battery systems.

Features:

• Sealed to IP67/IP6K9K standards with high-temperature electronics and stainless steel cable lugs for rugged durability

• Manual override knobs with locking capability for safe servicing and immediate manual control

• Simple dip switch programming for versatile relay functions tailored to specific system needs

• Compact design reduces mounting space by up to 75% thanks to advanced bi-stable solenoid technology

• Plug-and-play compatibility with legacy relay products including ML Series Bi-stable Relays

• Significantly lower off-state current, reducing system power consumption by up to 95%

• Local and remote LED indicators for real-time relay status monitoring

• Mechanical-only battery switch option for added manual control and system redundancy

• High-current capacity of 500 amps continuous per relay for demanding applications

• Four-year industry-leading warranty ensures long-term reliability and performance
