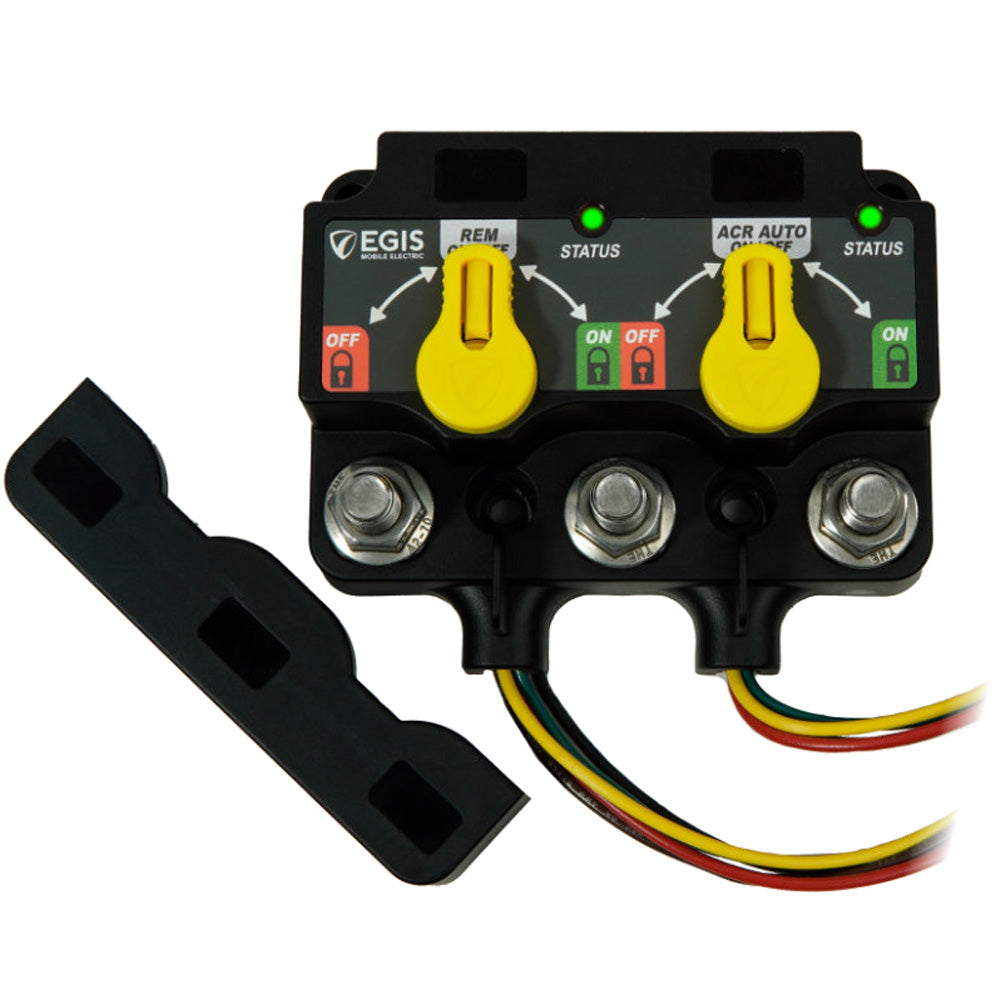

Egis Mobile Electric XD Dual Flex L VSR/Relay with Knob – 6-Pin DT Connector for High-Voltage Battery Systems

XD Dual Flex L VSR/Relay with Knob - 6-Pin DT Connector

Designed for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems Where Required Charge / Discharge Voltage Settings Require Higher Available Settings

500 Amp Continuous Capability Per Relay / Extremely Compact Footprint

Available With or Without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for Servicing

Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect

Remote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or to Allow Automatic Operation Based on Voltage Sensing

Local and Remote LED Indicators Per Relay

Mechanical-Only Battery Switch Option for One or Multiple Relay Positions

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.
• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Plug Play Compatible with Legacy Competitor Products: Single, dual, and triple relay options are available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
• 4 Year Industry-Leading Warranty

The Egis Mobile Electric XD Dual Flex L VSR/Relay with Knob is engineered to meet the demanding needs of lithium-based battery systems, including Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate configurations. This relay offers exceptional flexibility with its multiple functions, making it ideal for managing high-voltage battery systems where precise charge and discharge voltage settings are critical. Its design provides a continuous 500 Amp capacity per relay, ensuring reliable operation under heavy load conditions. The compact footprint allows for easy integration into tight spaces, and the relay’s robust construction is sealed to IP67/IP69K standards, ensuring durability in harsh environments.
Featuring intuitive manual override knobs, the Egis XD Relay enables quick manual control with lockout functionality for safe servicing. The relays can be configured via dip switches for various functions such as battery disconnect, voltage sensing, or low-voltage protection, offering OEMs and installers a versatile solution tailored to specific system requirements. Remote inputs enable automatic operation, allowing the relay to switch ON/OFF based on voltage sensing or manual commands. Local and remote LED indicators provide clear status visibility, enhancing operational awareness. For applications requiring mechanical control, a battery switch option is available, supporting both single and multiple relay configurations.
Constructed with high-temperature electronics, stainless steel cable lug studs, and large mounting holes compatible with common hardware, the Egis XD Relay ensures a secure and reliable installation. Its advanced bi-stable solenoid design reduces mounting space by 35-75%, saving valuable space in complex electrical setups. Compatibility with legacy relay products is seamless, with plug-and-play options that include DTM/ATM connectors, making upgrades straightforward. The relay's low off-state current, which is up to 95% less than competing products, minimizes power consumption and heat generation. With a four-year industry-leading warranty, the Egis XD Dual Flex L VSR/Relay offers peace of mind and dependable performance for demanding battery management systems.

Features:

• Sealed to IP67/IP69K standards with high-temperature electronics and stainless steel cable lug studs for durability in harsh environments.

• Intuitive manual control with lockout capability for safe servicing, available on models with front-facing knobs.

• Simple dip switch programmability for versatile relay functions, including battery disconnect, voltage sensing, and low-voltage protection.

• Reduces mounting space by 35-75% through advanced bi-stable solenoid technology, optimizing space in complex systems.

• Plug-and-play compatibility with legacy products featuring DTM/ATM connectors, ensuring easy upgrades and integration.

• Significantly lower off-state current—up to 95% less than similar systems—reducing power consumption and heat generation.

• Remote and local LED indicators for reliable status monitoring and operational awareness.

• Supports mechanical battery switch options for manual control in multiple relay configurations.

• 500 Amp continuous relay capacity with high-current handling for demanding battery applications.

• Four-year industry-leading warranty for added confidence in performance and durability.
