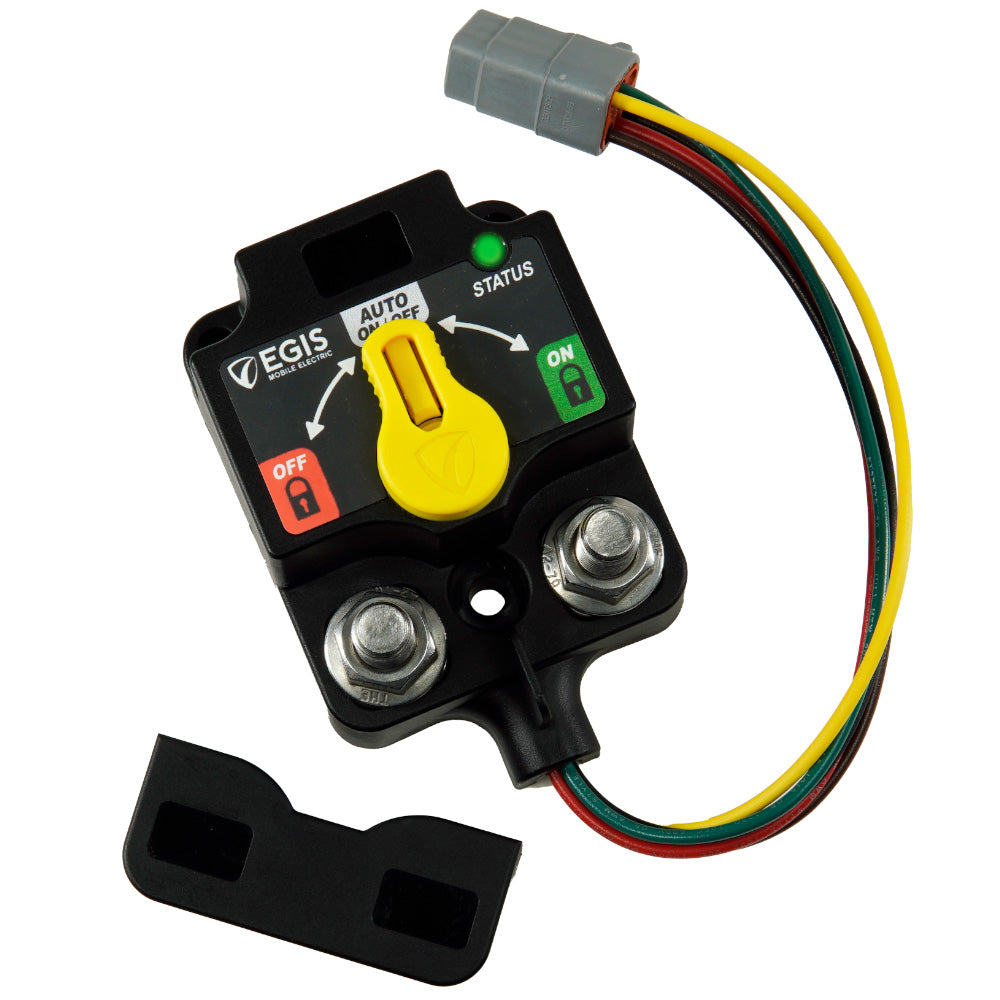

Egis Mobile Electric XD Flex 1 Single Relay/Automatic Circuit Releaser with Knob – 6-Pin DTM Connector

XD Flex 1 Single Relay/ACR with Knob - 6-Pin DTM Connector

Features:

• 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint
• Available with or Without Intuitive Front Facing Manual Override Knob with the ability to Lock Relays ON or OFF for Servicing
• Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Automatic Charging Relay, or Low Voltage Disconnect
• Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs
• Remote ON/OFF/Auto Inputs allow forced close or open, or allow automatic operation based on Voltage Sensing
• Local and Remote LED Indicators for Each Relay

The Egis Mobile Electric XD Flex 1 Single Relay/ACR with Knob offers reliable performance for demanding electrical systems. Designed with a 500 Amp continuous capability per relay, this unit provides robust power handling in a compact footprint, making it ideal for space-constrained installations. Its versatile design supports multiple configurations, enabling use as a relay, battery disconnect, automatic charging relay, or low voltage disconnect, thanks to adjustable dip switches that tailor functionality to specific needs.
Equipped with a front-facing manual override knob, users can easily lock relays in ON or OFF positions for maintenance or emergency situations, enhancing safety and control. The relay also supports dual start and engine isolation inputs, making it suitable for single or multiple engine setups. Remote operation capabilities include remote ON/OFF/Auto inputs, allowing for automated control based on voltage sensing or forced manual operation, providing seamless integration into advanced electrical systems.
Additional features include local and remote LED indicators for each relay, offering real-time status updates and simplified troubleshooting. Whether used in RVs, marine vessels, or industrial applications, the Egis XD Flex 1 ensures dependable operation with flexible, user-friendly controls. Its durable construction and comprehensive feature set make it a valuable addition for any sophisticated electrical system requiring high current capacity and versatile control options.

Features:

• 500 Amp continuous capacity per relay for reliable high-current switching

• Available with or without manual override knob, with lock feature for safety during servicing

• Flexible functionality via dip switches: relay, battery disconnect, automatic charging, or low voltage disconnect

• Supports single or multiple engine installations with dual start and engine isolation inputs

• Remote control inputs for ON/OFF/Auto operation, enabling automation based on voltage sensing

• Local and remote LED indicators for real-time relay status monitoring
