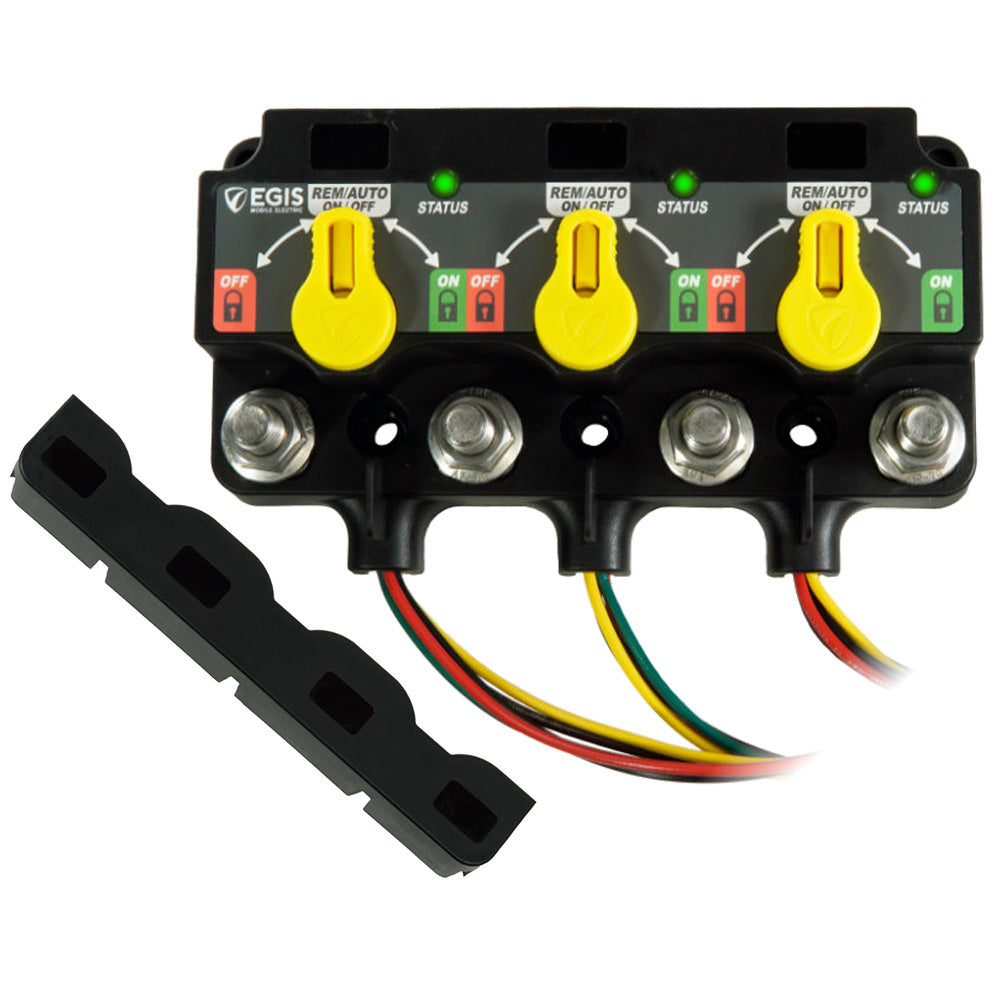

Egis Mobile Electric XD Flex L Triple Relay with Knobs - DTM for High-Voltage Lithium Systems

XD Flex L Triple (Relay/ACR/Relay) with Knobs - DTM

Designed for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems Where Required Charge / Discharge Voltage Settings Require Higher Available Settings

500 Amp Continuous Capability Per Relay / Extremely Compact Footprint

Available with or without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for Servicing

Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect

Remote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or to Allow Automatic Operation Based on Voltage Sensing

Local and Remote LED Indicators Per Relay

Mechanical-Only Battery Switch Option for One or Multiple Relay Positions

Features:

• Ultra-Low Power Draw: Lowest off-state current draw in the industry (1.3mA) combined.
• Simple Robust Installation:Sealed Deutsch/Amphenol DTM/ATM or DT/AT connectors available. Flying wire harnesses also available.
• Flexible Application Options: Install as a Remote Battery Disconnect Switch, Voltage Sensing Relay, or Low Voltage Disconnect. On/Off trigger via external signal and/or alternator voltage sense.
• Diagnostic Feedback:Via optional external LEDs control lines and on-board LEDs for each relay
• Bulletproof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Integrated thermal overload protection.
• Optional Manual Override provides power loss backup operation and the ability to lock OFF switched loads in order to service downstream circuits.
• Meets Stringent OEM Standards for electrical transient self-protection
• 4 Year Industry-Leading Warranty

The Egis Mobile Electric XD Flex L Triple (Part Number 8630-1535) is a versatile and robust relay system designed specifically for high-voltage lithium-ion, lithium polymer, and lithium iron phosphate battery systems. Its advanced features allow for precise charge and discharge voltage control, making it ideal for complex power management applications in automotive and industrial environments. The relay's high continuous current capacity of 500 amps per relay ensures reliable performance under demanding conditions. Its compact footprint allows for easy installation in confined spaces, providing flexibility for retrofit or new system designs.

Equipped with optional intuitive front-facing manual override knobs, operators can lock relays ON or OFF during servicing, ensuring safety and convenience. The relays can be configured via dip switches for multiple functions, including as a battery disconnect, voltage sensing relay, or low voltage disconnect. Remote control inputs enable automatic or manual operation, allowing the relays to be triggered ON, OFF, or to operate automatically based on real-time voltage sensing. Local and remote LED indicators provide clear status updates, enhancing system diagnostics and troubleshooting.

The Egis XD Flex L Triple features a sealed construction with high-temperature materials, allowing it to be mounted anywhere on a vehicle or equipment without concern for environmental exposure. Its minimal power draw at off-state (just 1.3mA) contributes to overall system efficiency. Optional external LEDs and control lines facilitate diagnostic feedback, ensuring quick identification of operational status. The relay's design incorporates thermal overload protection and meets stringent OEM standards for electrical transient self-protection, ensuring long-term reliability. A mechanical-only battery switch option is available for straightforward manual control in multiple relay configurations. Backed by a four-year industry-leading warranty, the Egis XD Flex L Triple relay system offers unmatched durability and performance for demanding lithium battery applications.

Features:

• Ultra-low power draw: Off-state current as low as 1.3mA, ensuring minimal energy consumption

• Simple, robust installation: Sealed Deutsch/Amphenol connectors and optional flying wire harnesses for easy setup

• Flexible application options: Functions as a remote battery disconnect, voltage sensing relay, or low voltage disconnect

• Diagnostic feedback: On-board LEDs and optional external LEDs for real-time status monitoring

• Bulletproof construction: Sealed unit with high-temperature materials suitable for any mounting location

• Integrated thermal overload protection: Ensures safety and durability during operation

• Manual override with lockable ON/OFF controls: Facilitates servicing and backup power operation

• Meets OEM standards: Designed for electrical transient self-protection to ensure system integrity

• Industry-leading 4-year warranty: Provides peace of mind with long-term reliability
