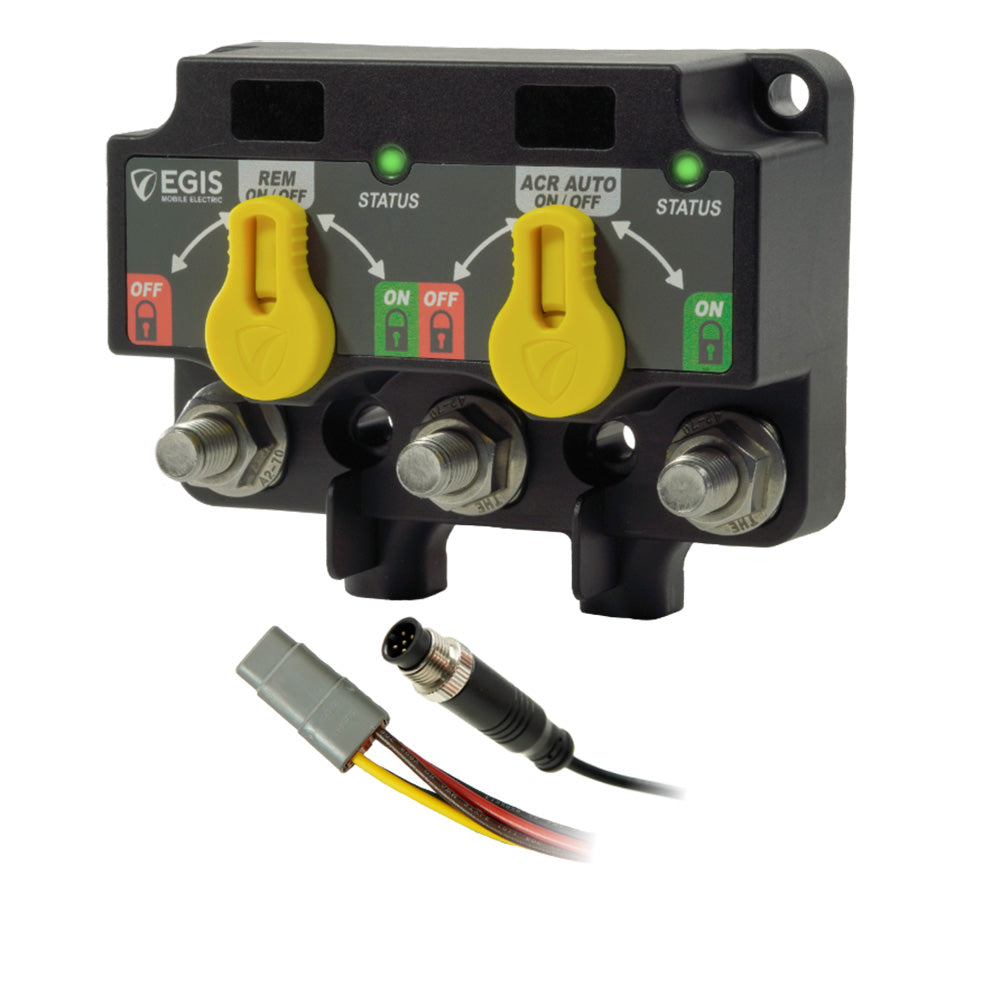

Egis Mobile Electric XD NMEA 2000 Dual Relay and VSR with Knobs - 8-Pin DT Connector

XD NMEA 2000 Dual Relay/VSR with Knobs 8-Pin DT Connector

XD NMEA 2000 Dual Relay/VSR with Knobs is a high-power, dual-circuit marine and vehicle electrical management device. It combines a remote battery switch and an Automatic Charging Relay (ACR) / Voltage Sensing Relay (VSR) into a single compact, programmable module.

Features:

• NMEA 2000 Integration: Allows seamless remote control and real-time monitoring of battery voltage and switch status directly from compatible Multi-Function Displays (MFDs).
• High Capacity: Supports continuous loads up to 500A and cranking loads up to 1600A per switch, making it suitable for heavy-duty marine or work truck systems.
• Manual Override Knobs: Includes intuitive 3-position local knobs that allow you to manually force relays Open or Closed and lock them in place.
• Smart Charge Management: Eliminates dead start batteries by automatically sharing charging sources (e.g., an alternator) and isolating batteries when no charging is present.
• Programmability: Easily configurable via built-in dip switches to customize voltage offsets and delay settings.
• Bulletproof Construction: Sealed to IP67/IP6K9K standards, featuring high-temperature electronics and corrosion-resistant stainless-steel hardware.

The Egis Mobile Electric XD NMEA 2000 Dual Relay/VSR with Knobs offers a robust solution for managing heavy-duty marine and vehicle electrical systems. Designed for seamless integration with NMEA 2000 networks, this compact module enables remote control and real-time monitoring of battery voltage and switch status directly from compatible Multi-Function Displays (MFDs). Its high-capacity design supports continuous loads up to 500 amps and cranking loads up to 1600 amps per switch, making it ideal for demanding marine applications and work trucks that require reliable power management. The intuitive manual override knobs provide local control, allowing users to manually open or close relays and lock them in position, ensuring quick response during critical situations. Smart charge management features automatically share charging sources like alternators to prevent dead batteries and isolate batteries when charging isn’t active, promoting optimal battery health and system reliability. The device’s programmability via built-in dip switches allows customization of voltage offsets and delay settings to match specific electrical system requirements. Constructed to withstand harsh conditions, it meets IP67/IP6K9K standards, with sealed electronics, high-temperature components, and corrosion-resistant stainless-steel hardware, ensuring durability in marine and industrial environments. Whether you're upgrading a marine battery system or managing multiple power sources in a vehicle, the Egis XD NMEA 2000 Dual Relay/VSR delivers advanced control, safety, and reliability in a compact, easy-to-install package.

Features:

• NMEA 2000 integration for seamless remote control and real-time system monitoring

• Supports continuous loads up to 500 amps and cranking loads up to 1600 amps per switch

• Manual override knobs with 3-position control for local operation and locking

• Smart charge management to prevent dead batteries and isolate batteries without charging

• Configurable via built-in dip switches to customize voltage offsets and delay timings

• Sealed to IP67/IP6K9K standards, featuring corrosion-resistant stainless-steel hardware

• High-temperature electronics for reliable operation in demanding environments
