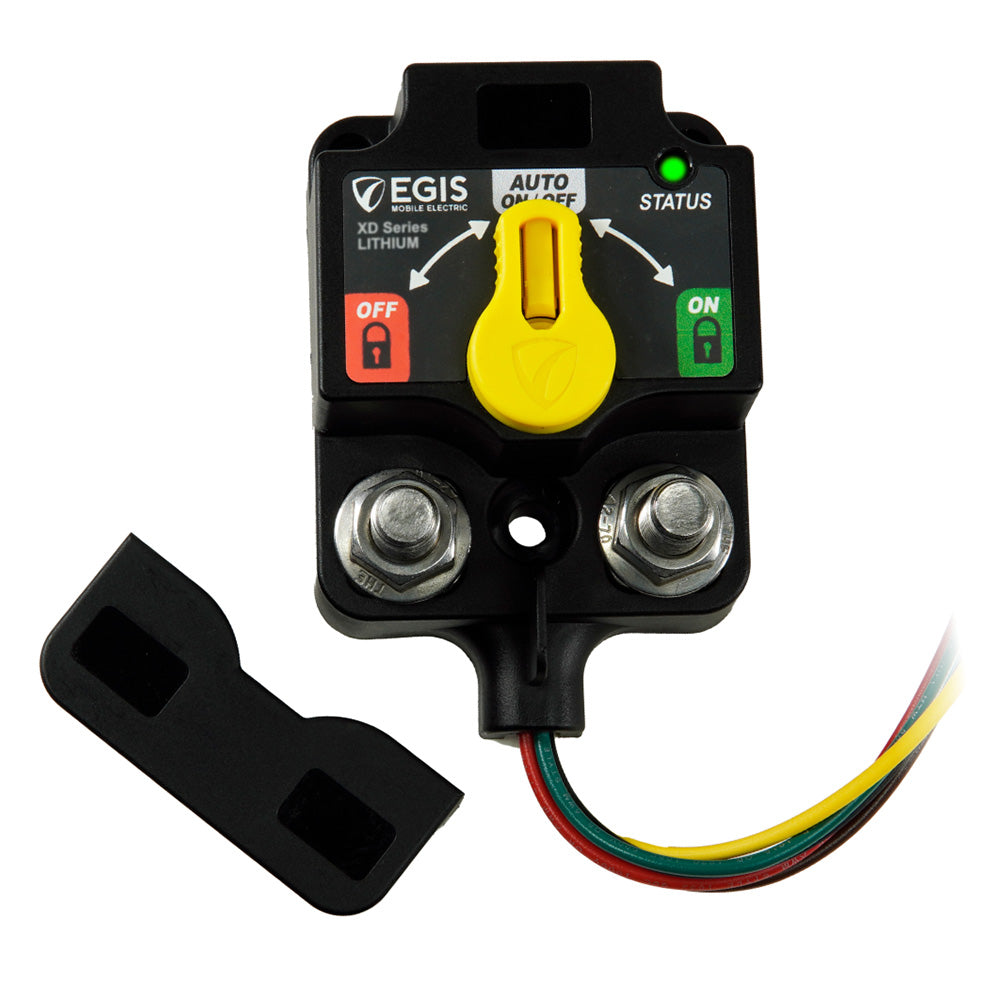

Egis Mobile Electric XD Single Flex L (ACR) with Knobs - 6-Pin DTM Connector

XD Single Flex L (ACR) with Knobs - 6-Pin DTM Connector

Designed for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems, Where Required Charge / Discharge Voltage Settings Require Higher Available Settings

500 Amp Continuous Capability Per Relay / Extremely Compact Footprint

Available with or without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for Servicing

Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect

Remote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or Allow Automatic Operation Based on Voltage Sensing

Local and Remote LED Indicators Per Relay

Mechanical-Only Battery Switch Option for One or Multiple Relay Positions

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.
• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Plug Play Compatible with Legacy Competitor Products: Single, dual, and triple relay options available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
• 4 Year Industry-Leading Warranty

The Egis Mobile Electric XD Single Flex L (ACR) with Knobs is a versatile and high-performance relay designed specifically for lithium-ion, lithium polymer, and lithium iron phosphate battery systems. It provides higher available charge and discharge voltage settings, making it ideal for demanding energy storage applications. With a continuous capability of 500 amps per relay, this compact device offers robust power handling while maintaining a small footprint, perfect for installations where space is at a premium.
Equipped with optional manual override knobs, the relay allows for simple on-site operation with lockable ON or OFF positions, ensuring safety during servicing. The intuitive design includes remote control inputs for ON/OFF/Auto modes, enabling seamless integration with your existing system for automatic or manual operation based on voltage sensing or manual commands. Local and remote LED indicators offer real-time status monitoring, providing clarity and confidence during operation.
The relay's flexible functionality is achieved through configurable dip switches, allowing it to serve as a relay/battery disconnect, voltage sensing relay, or low-voltage disconnect. Additionally, the mechanical-only battery switch option supports single or multiple relay configurations, delivering reliable control in various system architectures. The rugged construction features IP67/IP6K9K sealing, high-temperature electronics, stainless steel cable lug studs, and large mounting holes compatible with standard hardware, ensuring durability in harsh environments.
Designed for ease of installation and maintenance, the Egis XD Single Flex L (ACR) is plug-and-play compatible with legacy products, including single, dual, and triple relay configurations with DTM/ATM connectors. Its advanced bi-stable solenoid design reduces size, weight, and power consumption by up to 95%, while maintaining industry-leading reliability with a 4-year warranty. Whether used in automotive, marine, or industrial applications, this relay offers a comprehensive solution for managing high-current battery systems efficiently and safely.

Features:

• Sealed to IP67/IP6K9K for rugged durability and high-temperature operation, with stainless steel cable lug studs and large mounting holes compatible with standard hardware

• Intuitive manual control with lockable ON/OFF positions for safe servicing and operation, available exclusively on this model

• Simple dip switch programmability allows customizable relay functions to suit specific OEM or installer needs

• Advanced bi-stable solenoid design reduces mounting space and weight by 35-75%, optimizing system layout and efficiency

• Plug-and-play compatibility with legacy products, including single, dual, and triple relay options with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays

• Significantly lower off-state current—up to 95% less than comparable systems—reducing power draw and improving overall system efficiency

• Local and remote LED indicators provide real-time status updates for each relay, enhancing operational awareness

• Versatile functionality with remote ON/OFF/Auto inputs, enabling automatic operation based on voltage sensing or manual control
