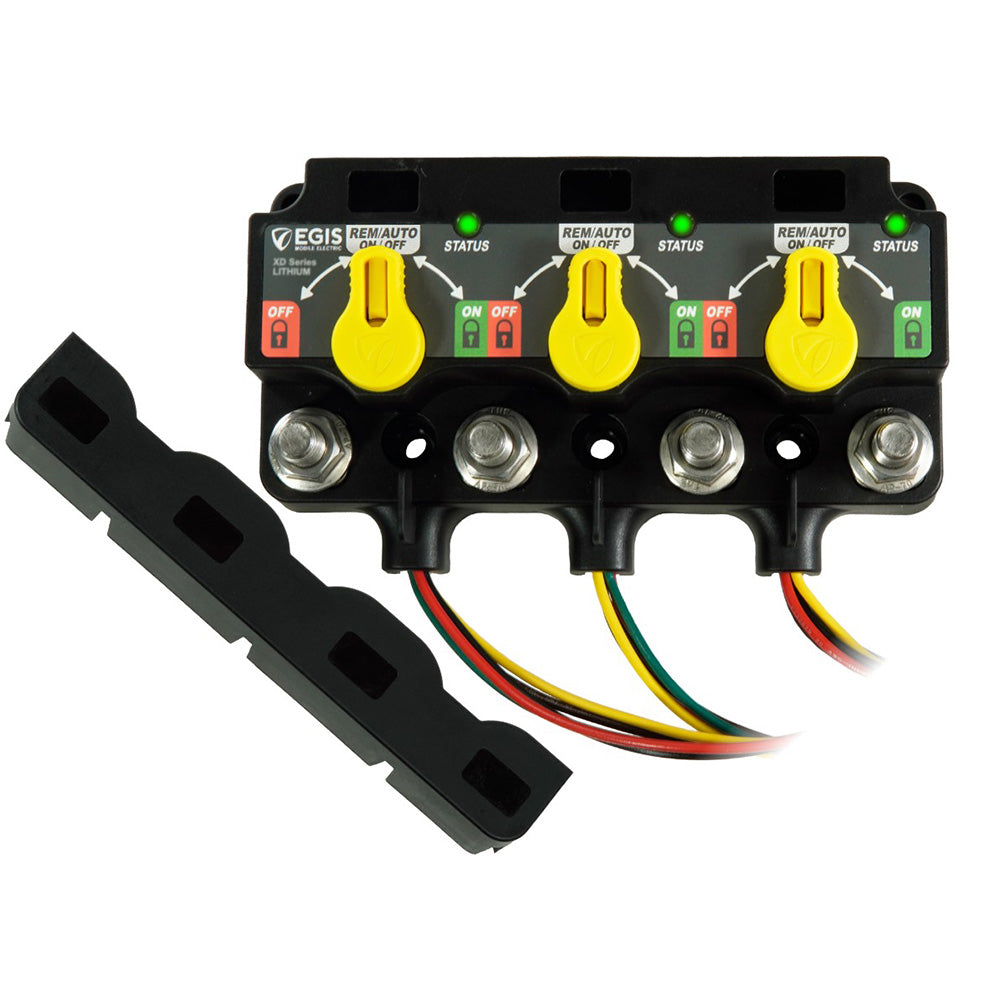

Egis Mobile Electric XD Triple Flex L Relay with Knobs and Tinned Wires

XD Triple Flex L (Relay) - (ACR) - (Relay) with Knobs - Tinned Wires

Designed for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems, Where Required Charge / Discharge Voltage Settings Require Higher Available Settings

500 Amp Continuous Capability Per Relay / Extremely Compact Footprint

Available with or without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for Servicing

Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage Disconnect

Remote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or Allow Automatic Operation Based on Voltage Sensing

Local and Remote LED Indicators Per Relay

Mechanical-Only Battery Switch Option for One or Multiple Relay Positions

Features:

• Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
• Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions)
• Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.
• 35-75% Reduction in Mounting Space Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts.
• Plug Play Compatible with Legacy Competitor Products: Single, dual, and triple relay options available with DTM/ATM connectors, pin for pin compatible with ML Series Bi-stable Relays.
• 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
• 4 Year Industry-Leading Warranty

The Egis Mobile Electric XD Triple Flex L Relay (Part Number: 8530-1535) is a high-performance, compact relay designed specifically for lithium-ion, lithium polymer, and lithium iron phosphate battery systems. Its robust construction and advanced features make it ideal for applications requiring higher charge/discharge voltage settings, providing reliable operation in demanding environments. With a continuous 500 Ampere capacity per relay, this device ensures ample power handling for your critical systems while maintaining a small footprint to optimize space in your installation. The relay is available with or without intuitive front-facing manual override knobs, allowing operators to lock the relay ON or OFF for maintenance or safety purposes, enhancing operational control and safety.

Featuring flexible functionality, the Egis XD Triple Flex L relay can be configured as a relay, battery disconnect, voltage sensing relay, or low voltage disconnect via simple dip switch settings. It supports remote control inputs for ON/OFF/Auto modes, enabling automatic operation based on voltage sensing or manual activation. Local and remote LED indicators provide clear status updates, ensuring quick diagnostics and system monitoring. Additionally, a mechanical-only battery switch option is available for one or multiple relay positions, offering straightforward manual control when needed. Its sealed IP67/IP6K9K rated enclosure, stainless steel cable lug studs, and large mounting holes make it suitable for harsh environments and easy installation.

Designed for OEMs and installers, this relay features simple dip switch programmability, significantly reducing installation time and complexity. The advanced bi-stable solenoid design reduces mounting space by 35-75% and lowers off-state current by up to 95% compared to similar products, leading to energy savings and efficient system operation. Compatibility with legacy relay systems is ensured through plug-and-play DTM/ATM connectors, making upgrades seamless. Backed by a four-year industry-leading warranty, the Egis XD Triple Flex L relay offers durability, flexibility, and peace of mind for your battery management needs.

Features:

• Sealed to IP67/IP6K9K, allowing mounting in harsh environments with high-temperature electronics and stainless steel cable lug studs

• Intuitive manual control with lockable ON/OFF states for safe servicing and operation (not available on all models)

• Simple dip switch programmability for flexible relay functions tailored to specific applications

• Significantly reduces mounting space and weight through advanced bi-stable solenoid design and multiple assemblies

• Plug-and-play compatibility with legacy products, including single, dual, and triple relay configurations with DTM/ATM connectors

• High efficiency with 90-95% less off-state current compared to conventional solutions

• Industry-leading four-year warranty supporting long-term reliability and support
