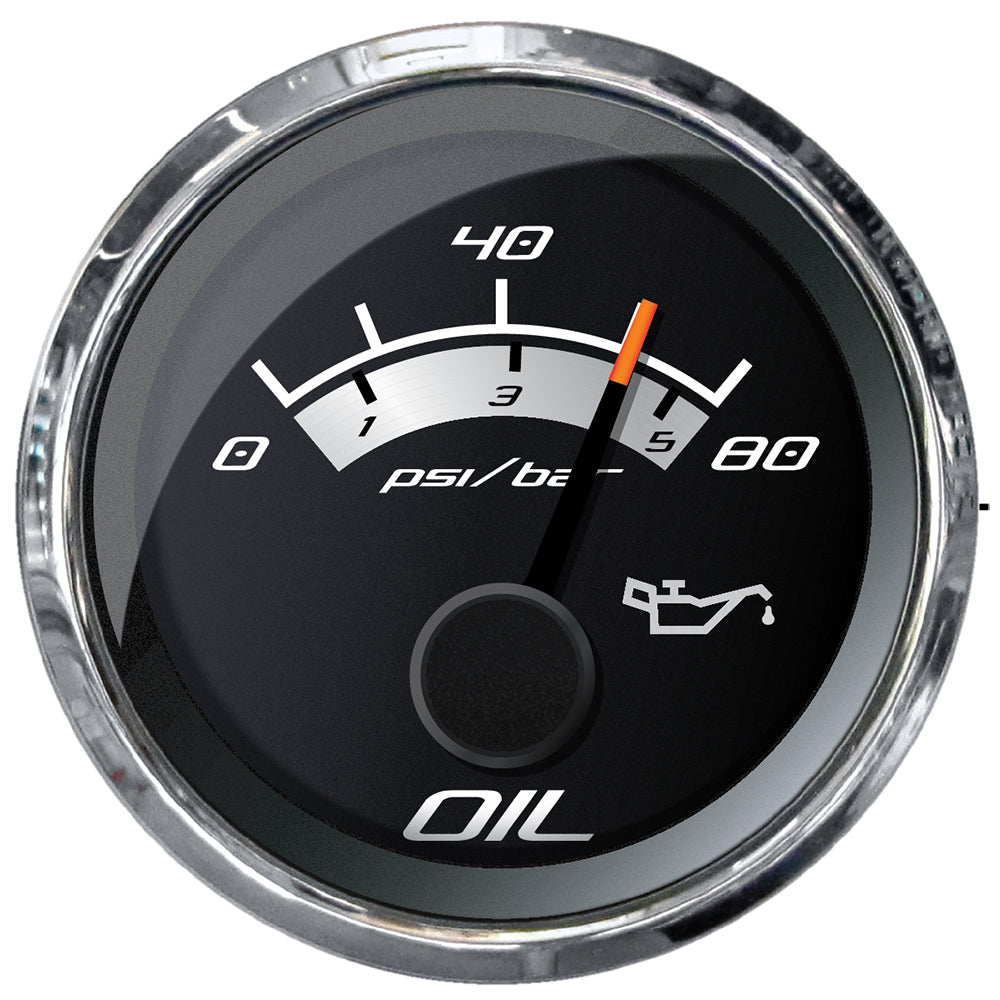

Faria Beede Instruments Platinum Series 2-Inch Oil Pressure Gauge - 80 PSI with Blue LED Illumination and Anti-Fog Lens

2" Oil Pressure Gauge - 80 PSI

Faria Beedes Platinum Series Instruments feature spun aluminum gauge dials with custom graphics and a polished stainless steel bezel providing a rugged, elegant look.

All Platinum Series gauges feature Faria's revolutionary domed glass Fog-Resistant lens. These lenses shed condensation and resists scratching and other types of fouling common in the marine environment.

A pressure gauge operates by sending a low amperage current through the gauge's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...

As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the change in pressure.

2" - Hole size: 2.0625" (53mm)

Specifications:

• Domed Glass Anti-fog, Scratch Resistant Lens
• Stainless Steel Bezel
• Blue LED Illuminating around the Perimeter of the Dial
• Illuminated Backlit Fire-Orange Tip Pointer

Factory P/N GP5089

*Sold as an Individual

*Gauge Cover not Included

Enhance your marine or automotive dashboard with the Faria Beede Instruments Platinum Series 2-inch Oil Pressure Gauge. Crafted with a spun aluminum dial and a polished stainless steel bezel, this gauge offers a durable and sophisticated appearance that complements any instrumentation setup. Its 80 PSI measurement range provides precise monitoring of your engine's oil pressure, ensuring optimal performance and early detection of potential issues. The gauge features a domed glass fog-resistant lens that resists scratching and fouling, maintaining clear visibility even in harsh marine environments.

The integrated blue LED perimeter illumination and backlit fire-orange tip pointer allow easy reading in low-light conditions, adding both functionality and style. Operating on a low amperage current, the gauge receives input from a resistance-variable sending unit, translating pressure changes into accurate readings. Designed for 2.0625-inch mounting holes, the gauge
