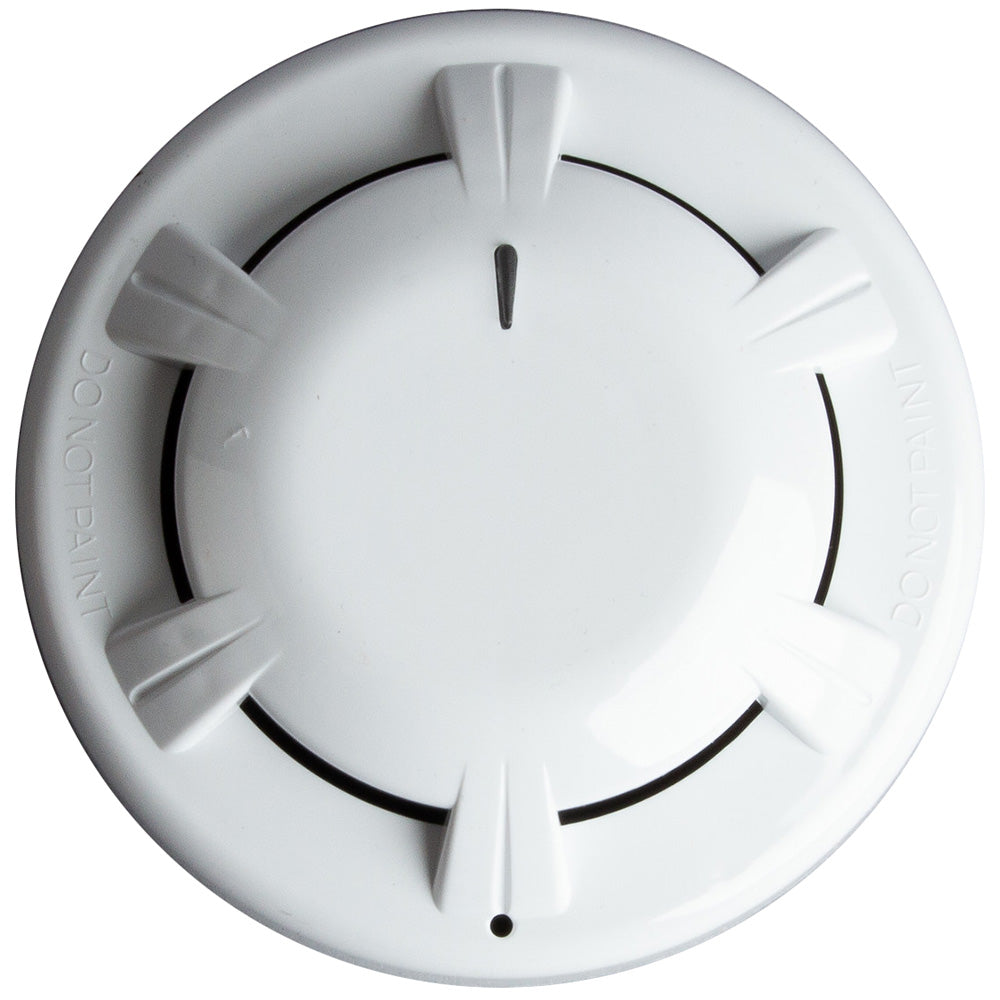

Fireboy-Xintex OMSD-01-DB-R Optical Smoke Detector with Base

Optical Smoke Detector with Base

Optical smoke detectors have consistently been recognized as suitable detectors for general use. They are regarded as particularly suitable for smoldering fires and escape routes. This smoke detector is also designed to significantly reduce the incidence of false alarms through over-sensitivity to transient phenomena.

Features:

• Recommended for use as general-purpose smoke detectors for early warning of fires in most areas
• Works well in black as well as in white smoke
• Compensation for slow changes in sensitivity
• Extra confirmation of smoke before an alarm signal is given

Specifications:

• Sampling Frequency: Once every four seconds
• Operating Voltage: 8.5 V dc to 33 V dc
• Supply Wiring: Two wire supply, polarity sensitive
• Power-up Time: < 20 seconds
• Minimum Detector Active Voltage: 6 V
• Minimum Holding Current: 8 mA
• Minimum Voltage to Light Alarm LED: 5 V
• Alarm Reset Time: One second
• Alarm Indicator: Integral indicator with 360 visibility
• Operating Storage Temperature: -40C to +70C
• Humidity (no condensation or icing): 0% to 98% RH

Operation:

• Optical Smoke Detectors work on the well-established light scatter principle
• The remarkable optical design of this Smoke Detector enables it to respond to a wide spectrum of fires
• The sensing chamber contains an optical sensor that measures back-scattered light as well as the more usual forward-scattered light
• The detector is calibrated so that it is highly reliable in detecting fires but is much less likely to generate false alarms
• The stability of the detector-high reliability, low false alarm rate is further increased by the use of algorithms to decide when the detector should change to the alarm state
• Removes the likelihood of a detector producing an alarm as a result of smoke from smoking materials or another non-fire source

Fireboy-Xintex OMSD-01-DB-R Optical Smoke Detector with Base is designed for general-purpose fire detection in most areas, including locations where early warning and dependable smoke sensing are important. Its optical sensing technology is particularly suitable for detecting smoldering fires and can respond effectively to both black and white smoke.

Using an established light-scatter principle, the optical sensing chamber measures back-scattered and forward-scattered light across a broad spectrum of fire conditions. The detector also uses sensitivity compensation and confirmation algorithms to help reduce false alarms caused by transient phenomena, smoking materials, or other non-fire sources. These features make it suitable for general fire detection applications and escape routes where consistent operation is important.

Key Features:

• Feature: General-purpose optical smoke detection for early fire warning in most areas
• Feature: Designed to respond effectively to both black and white smoke
• Feature: Sensitivity compensation helps account for slow changes over time
• Feature: Additional smoke confirmation helps reduce false alarm conditions
• Feature: Integral alarm indicator provides 360-degree visibility
• Feature: Two-wire, polarity-sensitive supply connection supports compatible installations

Product Details:

• Brand: Fireboy-Xintex
• Model: OMSD-01-DB-R
• Product type: Optical smoke detector with base
• Sampling frequency: Once every four seconds
• Operating voltage: 8.5 V DC to 33 V DC
• Power-up time: Less than 20 seconds
• Minimum detector active voltage: 6 V
• Minimum holding current: 8 mA
• Minimum voltage to light alarm LED: 5 V
• Alarm reset time: One second
• Operating and storage temperature: -40°F to 158°F
• Humidity range: 0% to 98% relative humidity, with no condensation or icing
• Alarm indicator: Integral indicator with 360-degree visibility

Choose the Fireboy-Xintex OMSD-01-DB-R when you need an optical smoke detector with base that combines broad fire response with features designed to limit unnecessary alarm signals.

SEO META DESCRIPTION:
Fireboy-Xintex OMSD-01-DB-R optical smoke detector with base provides general-purpose fire detection, broad smoke response, and false alarm reduction.

Features:

• General-purpose optical smoke detection for early fire warning in most areas

• Responds effectively to both black and white smoke

• Sensitivity compensation helps account for slow changes over time

• Additional smoke confirmation helps reduce false alarm conditions

• Integral alarm indicator provides 360-degree visibility

• Two-wire, polarity-sensitive supply connection
