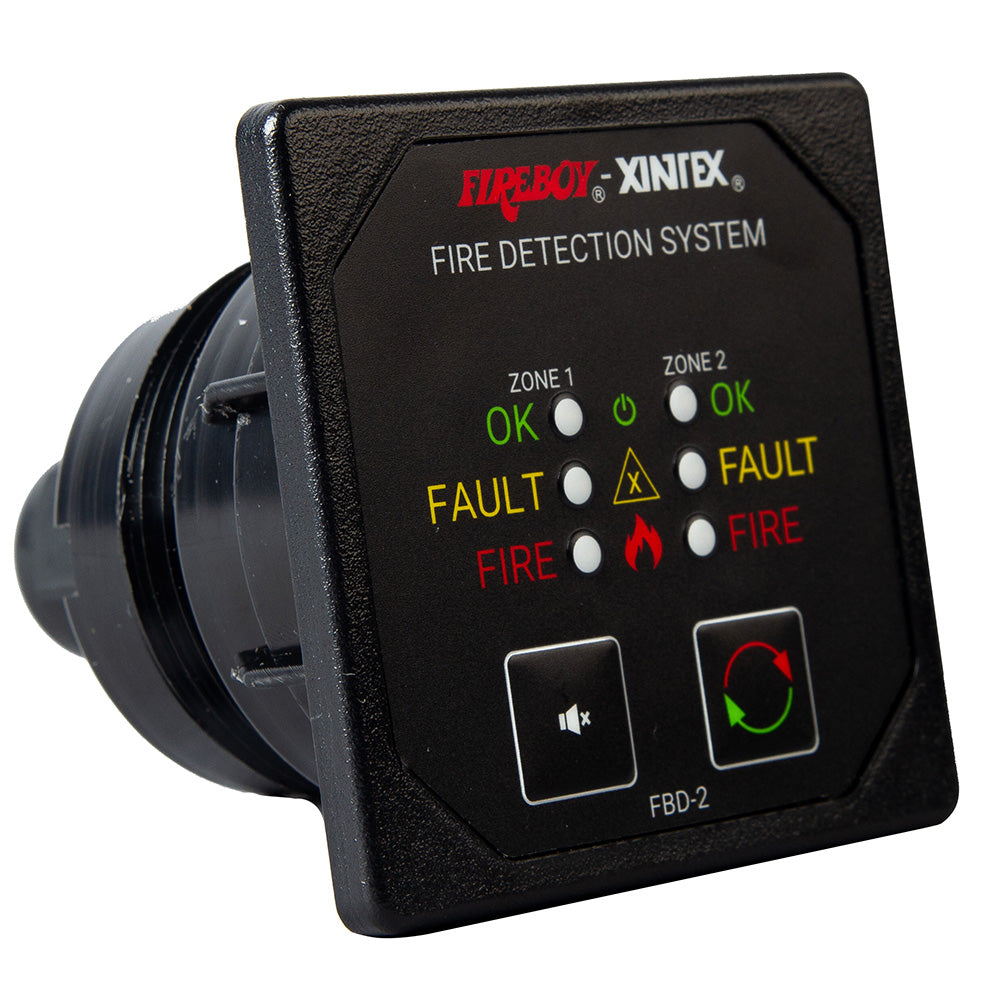

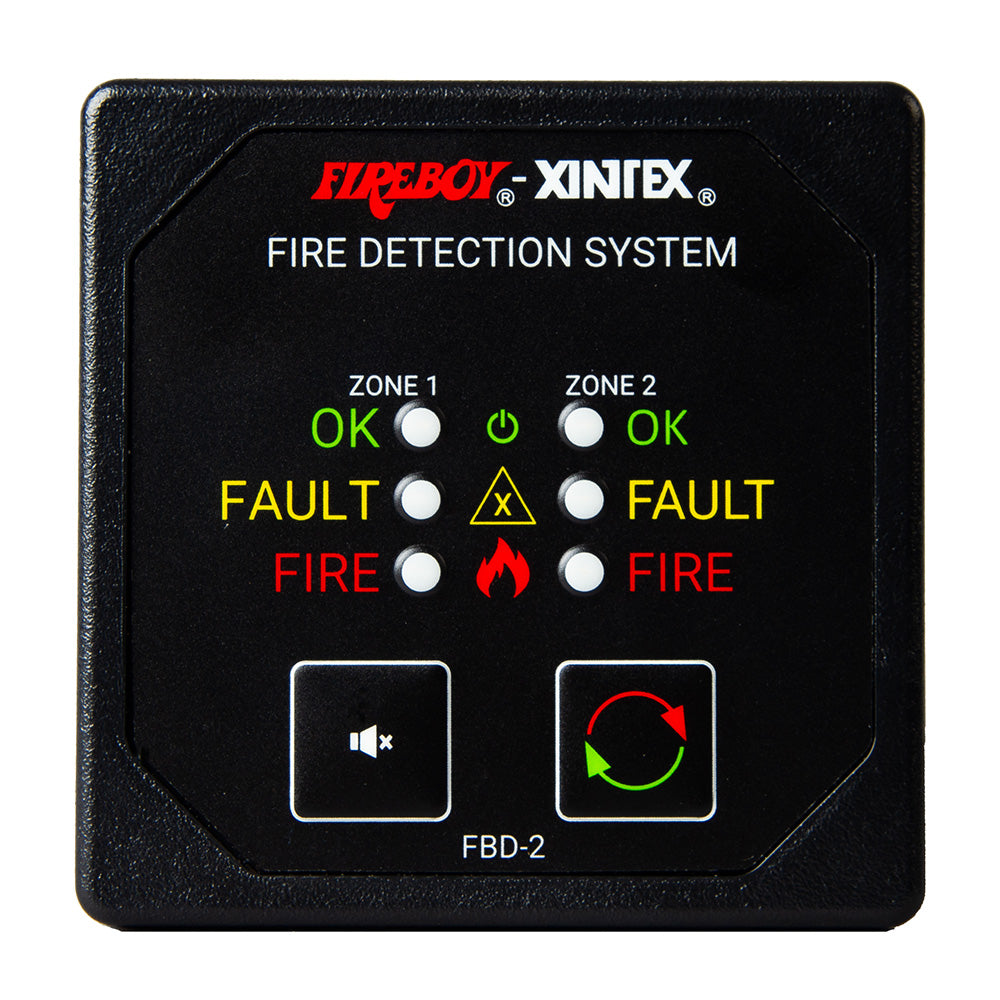

Fireboy-Xintex Two Zone Detection & Alarm Panel with 2-5/8-Inch Display – 12/24V DC

Two Zone Detection Alarm Panel - 2-5/8" Display - 12/24V DC

Each system consists of a monitor panel and up to 14 smoke or heat detectors and/or rate of rise heat detectors connected to each zone (sold separately.)

Features:

• Visual and audible indications of a fire or fault
• Water resistant display
• Voltage and EMI protected
• Reverse polarity protected

Specifications:

• Supply Voltage: 9-32V DC
• Zone Loop Voltage: 24V DC (regardless of input voltage)
• Minimum Alarm Current: 15mA
• Maximum Current Per Zone: 400mA
• Maximum Sensors Per Zone: 8
• EOL Resistor: 5.6k
• Potential Free Transistor Output (Fault, Alarm): 50V max
• Relay Output (Buzzer): 2A

The Fireboy-Xintex FBD-2-R Two Zone Detection & Alarm Panel offers reliable fire detection with advanced features designed for safety and ease of use. Featuring a compact 2-5/8-inch display, this panel provides clear visual and audible alerts for fire or fault conditions, ensuring prompt response in emergency situations. Its water-resistant design makes it suitable for diverse environments, while built-in protection against voltage fluctuations and EMI enhances system reliability. The panel supports up to 14 detectors per zone, including smoke, heat, and rate of rise heat detectors (sold separately), allowing flexible configuration for various safety requirements. Its robust construction includes reverse polarity protection and a potential free transistor output capable of handling alarms and faults, making it a dependable choice for critical fire detection applications. The system operates on a supply voltage of 9-32V DC, with a steady 24V DC zone loop voltage, ensuring consistent performance regardless of input fluctuations. With minimal alarm current draw of 15mA and a maximum of 8 sensors per zone, this alarm panel is designed for efficiency and scalability. The integrated relay output can activate external alarms or buzzer systems up to 2A, providing seamless integration into existing safety systems. Compliant with industry standards, the Fireboy-Xintex FBD-2-R is a versatile, durable, and essential component for fire safety in commercial or industrial settings. For detailed installation and operation instructions, refer to the owner’s manual available online.

Features:

• Visual and audible indications for fire or fault detection

• Water-resistant display for harsh environments

• Voltage and EMI protection ensures reliable operation

• Reverse polarity protection safeguards against wiring errors

• Supports up to 14 detectors per zone, including smoke and heat detectors

• Operates on 9-32V DC power supply with stable 24V zone loop voltage

• Low alarm current of 15mA for energy efficiency

• Relay output suitable for controlling external alarms or buzzers up to 2A

• Easily scalable with multiple detectors and zones for comprehensive coverage

• Compliant with safety standards, PROP 65 warning included
