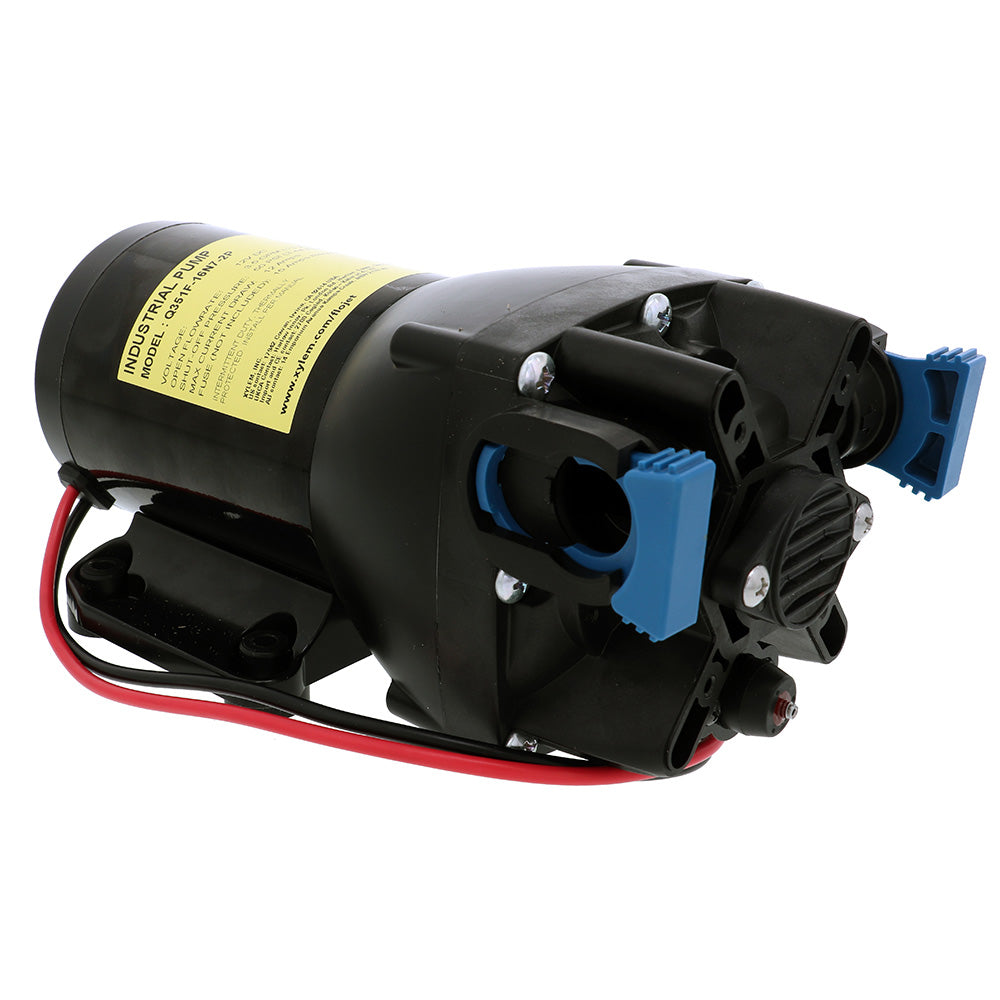

Flojet VersiJet 4 Chamber Diaphragm Pump - 24V, 3.5 GPM, 50 PSI

VersiJet 4 Chamber Diaphragm Pump - 24V, 3.5 GPM, 50 PSI

Flojet VersiJet Series industrial diaphragm pump. It is engineered for durability and longevity. This Flojet pump is perfect for applications such as liquid transfer, spraying, cooling, circulation, filtration, dispensing, and more! Glass-filled polypropylene hose is resistant to corrosion. Viton seals and a Santoprene diaphragm provide resistance to chemicals and corrosion. It has quick-connect ports and includes two 1/2 straight hose barbs.

Features:

• Heavy-duty, coated motor
• Long-life co-molded diaphragm
• Efficient, quiet operation
• Self-priming
• Runs dry without damage
• 4-chamber diaphragm
• Quick-connect ports
• TENV permanent magnet motor
• Noise-dampening baseplate
• Thermal motor protection (TCO)

Applications:

• Liquid Transfer
• Spraying
• Cooling
• Circulation
• Filtration
• Dispensing

Specifications:

• Product Number: Q352F-16N7-2P
• Port Fittings: 2 x 1/2 (13mm) straight hose barb
• Open Flow Rate: 3.5 GPM open flow (13.2 LPM)
• Pressure Switch Cut-Off: No switch
• Max Operating Pressure: 50 PSI (3.4 BAR)
• Max Inlet Pressure: 30 PSI (2.2 BAR)
• Internal Bypass: Yes
• Fluid Temperature Range: 32 F - 140 F (0 C - 60 C)
• Self-Priming Capability: Up to 8ft (2.4m) dry prime
• Run-Dry Capable: Yes
• Nominal Voltage: 24 VAC
• Max Current Draw: 5.3 Amps @ 50 PSI (3.4 BAR)
• Fuse Size: 7 Amps (not included)
• Duty Cycle: Intermittent
• Leads: 12 (305mm), 14 AWG (2.5mm^2)
• Wire Connection: Stripped wire
• Weight (pump only): 5.1 lbs.

Materials:

• Upper Housing: Glass-filled polypropylene
• Lower Housing: Cast aluminum
• Check Valve Retainer: Polypropylene
• Diaphragm: Santoprene
• Check Valves: Viton
• Switch diaphragm: Viton
• Bypass Diaphragm: Viton
• PH Seals: Viton
• PH Fasteners: Stainless steel
• Baseplate: Nylon with Rubber Feet
• Motor Casing: Cast aluminum; coated steel

The Flojet VersiJet Series 4 Chamber Diaphragm Pump, model Q352F-16N7-2P, is designed for demanding industrial applications requiring reliable liquid transfer, spraying, cooling, circulation, filtration, and dispensing. Engineered with durability in mind, this pump features a robust 24-volt motor with thermal protection and a noise-dampening baseplate for quiet operation. Its high-quality construction incorporates a glass-filled polypropylene upper housing, cast aluminum lower housing, and stainless steel fasteners, ensuring long-lasting performance in challenging environments. The pump's Viton check valves and Santoprene diaphragm provide excellent chemical resistance and corrosion protection, making it suitable for a wide range of fluids and conditions.

The pump is equipped with quick-connect ports and includes two 1/2 inch straight hose barbs for easy installation and maintenance. It boasts a self-priming capability up to 8 feet and can run dry without damage, offering versatile operation in various settings. With an open flow rate of 3.5 gallons per minute at a maximum pressure of 50 PSI, this pump efficiently handles fluid transfer needs while maintaining quiet and efficient performance. Its internal bypass and open flow design help optimize flow and reduce wear, ensuring reliable service over time.

Ideal for both intermittent duty cycles, the Flojet VersiJet 4 Chamber Diaphragm Pump combines performance with durability, making it a trusted choice for industrial, agricultural, and mobile fluid handling. Its compact design and rugged materials enable seamless integration into existing systems, providing consistent, dependable operation across a variety of applications. Whether used for spraying, cooling, or circulation, this pump delivers the power and resilience needed for professional-grade fluid management.

Features:

• Heavy-duty, coated motor: Ensures durability and long-lasting performance

• Long-life co-molded diaphragm: Provides reliable, consistent operation

• Efficient, quiet operation: Minimizes noise while maximizing performance

• Self-priming: Capable of priming up to 8 feet dry, reducing startup time

• Runs dry without damage: Suitable for applications where dry running may occur

• 4-chamber diaphragm: Enhances flow stability and durability

• Quick-connect ports: Facilitates easy installation and maintenance

• TENV permanent magnet motor: Ensures reliable and efficient motor operation

• Noise-dampening baseplate: Reduces operational noise for quieter use

• Thermal motor protection (TCO): Prevents overheating and extends motor life
