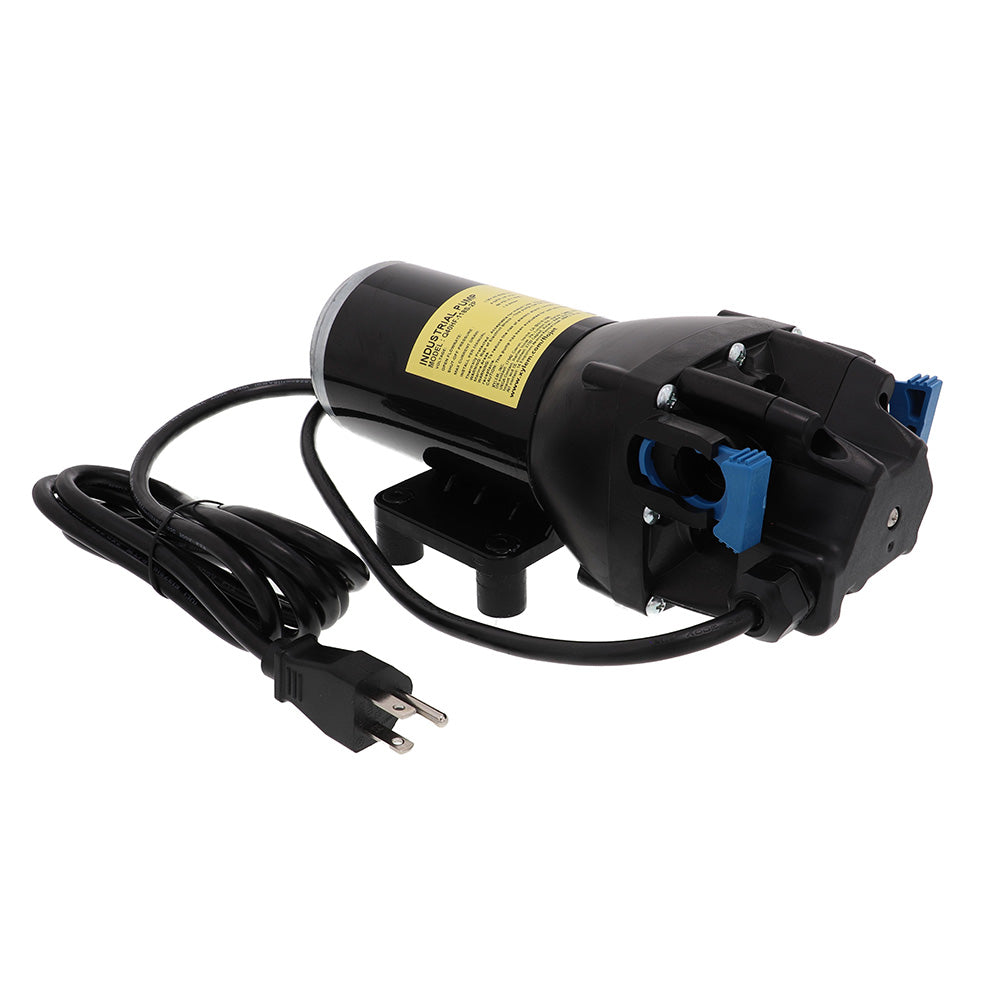

Flojet VersiJet Industrial Diaphragm Pump - 115V, 4 GPM, 60 PSI for Liquid Transfer & Spray Applications

VersiJet Industrial Diaphragm Pump - 115V, 4 GPM, 60 PSI

VersiJet Series pump is engineered for applications such as liquid transfer, spraying, cooling, circulation, filtration, and dispensing. Each pump is constructed with a glass-filled polypropylene upper housing, coated motor, co-molded Santoprene diaphragm, and EPDM check valves and seals to maximize durability and service life. The integrated pressure switch ensures automatic operation, while the self-priming design allows for up to 8 feet of dry lift. VersiJet pumps can run dry without damage, and their quiet, smooth performance minimizes disruptions in busy work areas. Quick-connect ports streamline installation and maintenance, so operators can attach or remove hoses and fittings quickly without tools for fast pump swaps or service. It delivers up to 4 GPM and handles a maximum pressure of 60 PSI. This pump is self-priming up to 8 feet, and it includes a built-in pressure switch that automatically shuts off the pump when system pressure reaches 60 PSI. Upgrade your pumping system today and keep your operation flowing without interruptions!

Benefits:

• Self-Priming: Draws liquid efficiently with up to 8 feet (2.4 meters) of dry prime, allowing the pump to pull fluid from the source without manual priming.
• Runs Dry Without Damage: Designed to operate safely even when the fluid supply is interrupted, meaning the pump will not suffer internal damage if left running without liquid, giving operators added protection from accidental dry runs and helping prevent costly downtime.
• Integrated Excessive Pressure Protection: A pressure switch shuts off the pump automatically when system pressure reaches 60 PSI. This feature helps prevent over-pressurization, protecting downstream equipment and extending pump life by minimizing unnecessary wear.
• Quiet, Efficient Operation: Reduces noise and energy usage through a four-chamber diaphragm design and noise-dampening baseplate.
• Reliable Performance: Designed for industrial fluid transfer and spraying in harsh environments.
• Long-Lasting Chemical-Resistant Construction:Features glass-filled polypropylene housing and EPDM seals for enhanced chemical resistance and durability.
• Easy Installation: Quick-connect fittings speed up maintenance and replacement.

Applications:

• Liquid Transfer
• Spraying
• Cooling,
• Circulation
• Filtration
• Dispensing

Specifications:

• Model: Q40FF-118S-2P
• Open Flow Rate: 4 GPM (15 LPM)
• Pressure Switch Cut Off: 60 PSI (4.1 BAR)
• Max Operating Pressure: 60 PSI (4.1 BAR)
• Max Inlet Pressure: 30 PSI (2.2 BAR)
• Self-Priming Capability: Up to 8 ft (2.4 m)
• Run-Dry Capable: Yes
• Nominal Voltage: 115 VAC
• Voltage Range: 104126 VAC
• Max Current Draw: 1.3 Amps @ 60 PSI
• Leads: 14 (355mm) 18 AWG
• Wire Connection: Stripped Wire
• Duty Cycle: Intermittent
• Port Fittings: 2 x 3/4 (19 mm) straight hosebarb
• Fluid Temperature Range: 32F 140F (0C 60C)
• Internal Bypass: Yes
• Self-Priming Capability: Up to 8ft (2.4m) Dry Prime
• Run-Dry Capable: Yes
• Upper Housing: Glass-Filled Polypropylene
• Lower Housing: Cast Aluminum
• Diaphragm: Santoprene
• Check Valve Retainer: Polypropylene
• Pump Head: Seals: EPDM, Fasteners: Stainless Steel
• Baseplate: Nylon Rubber Feet
• Dimensions: 11.25 x 5.47 x 5.07 in (286 x 139 x 129 mm)
• Weight: 5.2 lbs (2.4 kg)
• Mounting: Horizontal (preferred) or vertical with the pump head down
• Certifications: UR listed; IPX6 rated
• Replaces Flojet Models; 04300042A, 04300043A

The Flojet VersiJet Series industrial diaphragm pump is engineered to deliver reliable performance in demanding applications such as liquid transfer, spraying, cooling, circulation, filtration, and dispensing. Crafted with a durable glass-filled polypropylene upper housing, it features a coated motor, a co-molded Santoprene diaphragm, and EPDM check valves and seals to withstand harsh chemical environments and extend service life. The integrated pressure switch ensures automatic shutoff at 60 PSI, providing safe operation and protecting downstream equipment. Its self-priming design allows the pump to draw liquids from sources up to 8 feet dry, facilitating quick setup without manual priming. The pump's ability to operate dry without damage reduces downtime and maintenance costs, making it ideal for continuous industrial processes. Quiet operation is achieved through a four-chamber diaphragm design and noise-dampening baseplate, minimizing disruptions during operation and promoting a safer, more comfortable work environment. Easy installation is further enhanced with quick-connect ports, enabling operators to attach or detach hoses swiftly and without tools, streamlining maintenance and replacement procedures. With a flow rate of 4 gallons per minute and maximum pressure of 60 PSI, this pump handles high-demand tasks efficiently, ensuring your operation remains uninterrupted. Built for longevity, the pump's chemical-resistant construction, featuring EPDM seals and a cast aluminum lower housing, ensures durability in tough environments. Its versatile mounting options, either horizontal or vertical (with the pump head down), combined with a compact footprint, make installation flexible and space-efficient. Certified and rated IPX6 for water resistance, the Flojet VersiJet pump is a trusted choice for industrial fluid handling. Whether used for spraying, cooling, or chemical transfer, this pump provides consistent, dependable performance to keep your operations flowing smoothly.

Features:

• Self-Priming: Up to 8 feet dry prime for easy setup and operation

• Dry Run Capability: Designed to operate safely without damage when running dry

• Pressure Switch: Automatically shuts off at 60 PSI to prevent over-pressurization

• Quiet Operation: Four-chamber diaphragm and noise-dampening baseplate reduce noise levels

• Chemical-Resistant Construction: Glass-filled polypropylene and EPDM seals ensure durability

• Quick-Connect Ports: Facilitate fast installation and maintenance without tools

• Versatile Mounting: Suitable for horizontal or vertical installation with pump head down

• Compact Design: Measures approximately 11.25 x 5.47 x 5.07 inches for flexible placement

• Water-Resistant Rating: IPX6 rated for reliable operation in harsh environments

• Efficient Flow Rate: Delivers up to 4 GPM at 60 PSI for demanding applications
