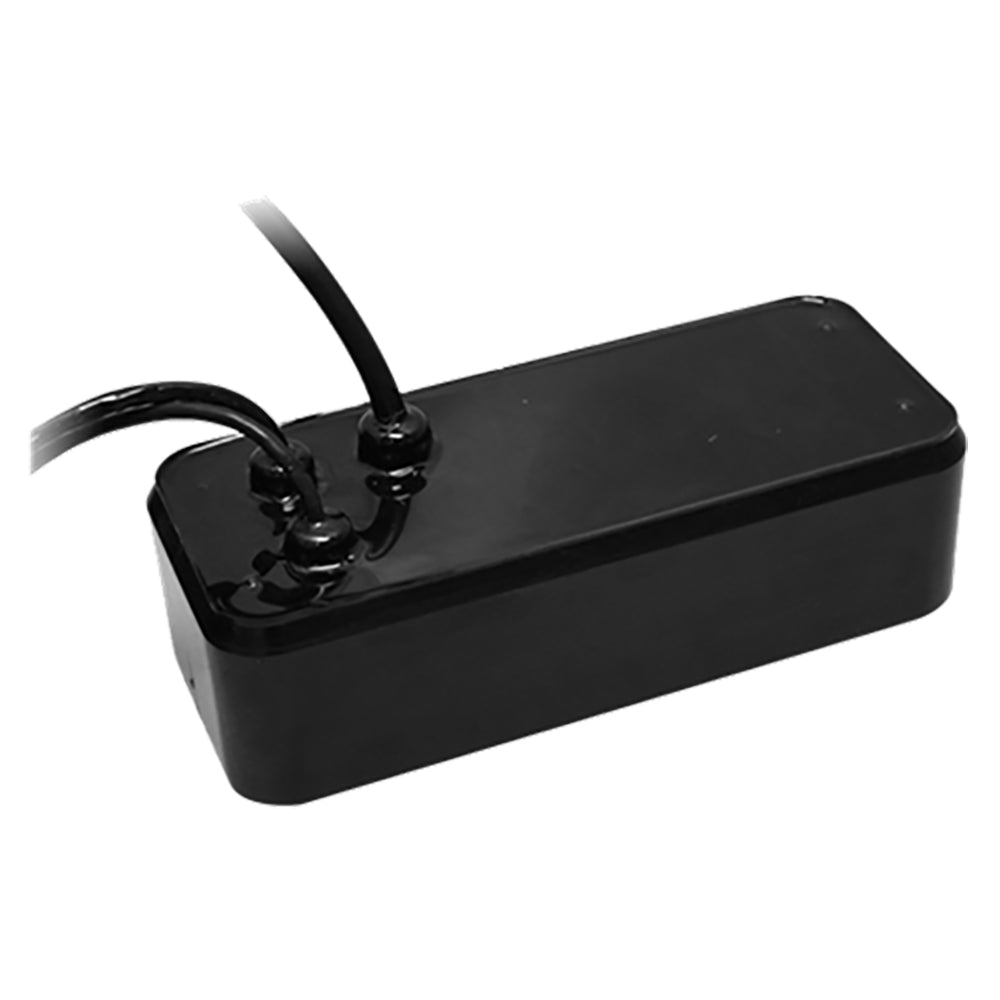

Furuno 165T/275LHW-12P Pocket Mount Combo Transducer for DFF3D & TZT3 Displays

165T/275LHW-12P Pocket Mount Combo Transducer for DFF3D TZT3 Displays

Pocket Mount Combination Transducer

This is a new size housing (12 LX 5 W X 3.5 H) that contains DFF3D elements along with CHIRP elements.

Standard Features

• DFF3D operating frequency 165 kHz
• LowCHIRPS from 42 kHz to 65 kHz, Beamwidth 25 to 16
• HighCHIRPS from 150 kHz to 250 kHz, Beamwidth 25
• 12M Cables
• Recommended for a TZT3 and DFF3D installation
• Built-in motion sensor
• Built in temp sensor

Enhance your marine sonar system with the Furuno 165T/275LHW-12P Pocket Mount Combo Transducer, expertly designed for DFF3D and TZT3 displays. This compact yet versatile transducer features a durable housing measuring approximately 12 inches in length, 5 inches in width, and 3.5 inches in height, providing reliable performance in demanding marine environments. Its integrated DFF3D elements combined with CHIRP technology enable precise underwater imaging and target detection, delivering clear, detailed sonar visuals for navigation, fishing, and underwater exploration. The transducer operates at a frequency of 165 kHz with LowCHIRPS from 42 kHz to 65 kHz, offering a beamwidth of 25 to 16 degrees, and HighCHIRPS from 150 kHz to 250 kHz with a consistent beamwidth of 25 degrees, ensuring versatile coverage and high-resolution imaging. Equipped with a 12-meter cable, this device is recommended for seamless installation with Furuno's TZT3 and DFF3D systems, providing an integrated solution for advanced marine sonar needs. Additional features include a built-in motion sensor and temperature sensor, which contribute to accurate data collection and system stability. Please note that this product may not be returned to the original point of purchase; contact Furuno directly for support or concerns. Designed for professional and serious recreational mariners, the Furuno 165T/275LHW-12P offers robust performance, durability, and ease of integration, making it an essential component for comprehensive underwater mapping and fishfinding systems.

Features:

• DFF3D operating frequency: 165 kHz for detailed 3D imaging

• LowCHIRPS: 42 kHz to 65 kHz with beamwidth 25° to 16° for wide coverage

• HighCHIRPS: 150 kHz to 250 kHz with beamwidth 25° for high-resolution imaging

• 12-meter cable length for flexible installation options

• Designed for compatibility with Furuno TZT3 and DFF3D display systems

• Built-in motion sensor enhances image stability and tracking accuracy

• Integrated temperature sensor for environmental monitoring

• Rugged housing with compact dimensions for marine durability
