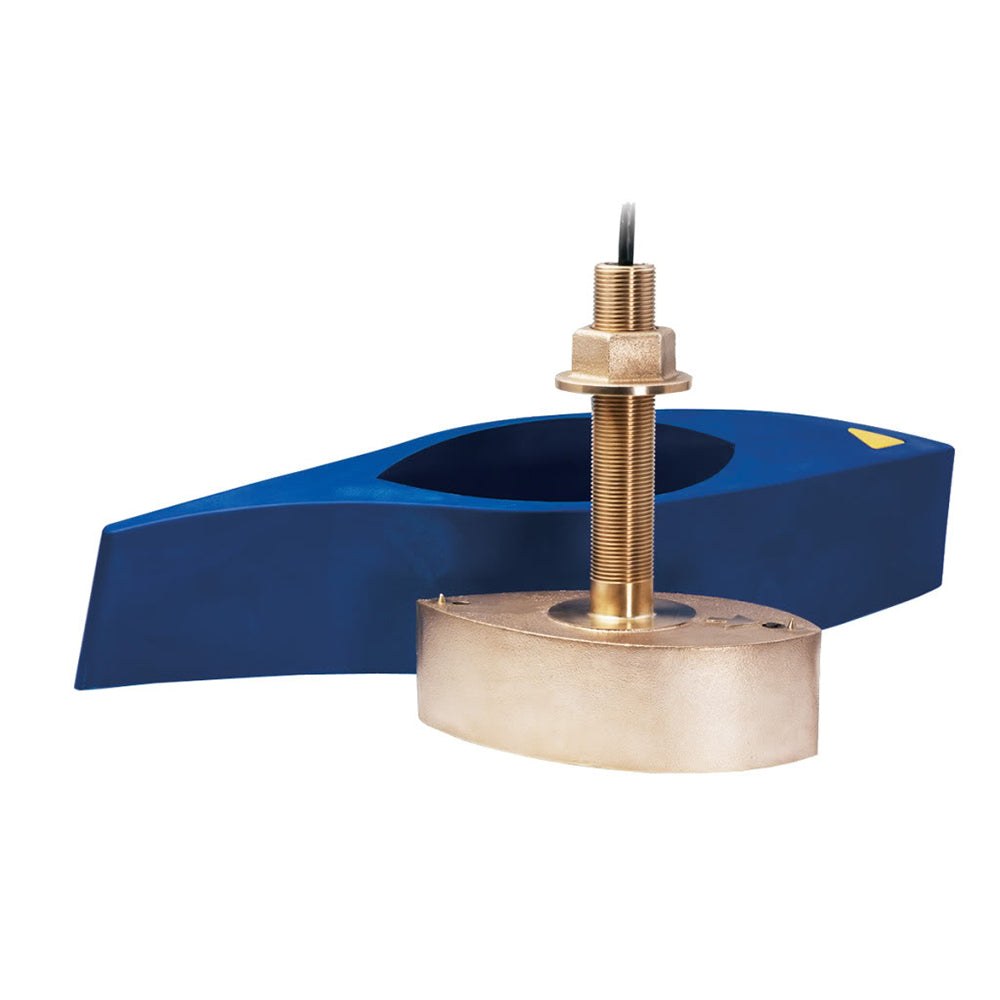

Garmin B275LH-W Bronze Thru-Hull Transducer 12-Pin for Deep Water and High-Speed Marine Navigation

B275LH-W Bronze Thru-Hull Transducer - 12-Pin

Get more coverage under your boat with Airmars unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25 beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.

The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH).

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.

The low frequency band and 1 kW of power also provides great deeper water performance. Get the best of both worlds with Airmars dual frequency Chirp-ready transducers with wide beam coverage.

Features:

• Depth and fast-response water-temperature sensor
• 1 kW for great deep water performance from the low frequency
• Low Frequency: 42 kHz to 65 kHz with maximum depth of 914 m (3000')
• 25 to 16 beamwidth
• High Frequency: 150 kHz to 250 kHz with maximum depth of 152 m (500')
  • 25 constant beamwidth
• 123 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• High frequency provides superior shallow water performance, bottom detail and fish target separation
• High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column
• Bronze transducer housing with high-performance fairing for optimal performance at higher speeds
• Recommended boat size: 8 m (25') and above
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID technology

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Garmin B275LH-W Bronze Thru-Hull Transducer is engineered for superior performance in both shallow and deep water environments, making it an essential component for serious anglers and marine navigation enthusiasts. Featuring Garmin’s innovative wide beam, high-frequency Chirp technology, this transducer delivers exceptional resolution and extensive coverage underneath your boat. The high-frequency band ranges from 150 to 250 kHz with a fixed 25-degree beam, providing crystal-clear images of fish arches, bottom detail, and target separation. This makes it ideal for inshore, offshore, and pelagic fishing where precision and maximum coverage are critical. The transducer’s included high-performance fairing enhances broadband performance at speeds exceeding 30 knots (34 MPH), ensuring reliable operation even at high speeds. Built with durable bronze housing, it’s designed for longevity and performance in demanding marine conditions, compatible with fiberglass and wooden hulls on boats 8 meters (25 feet) and larger. The Garmin B275LH-W also features a low-frequency band from 42 to 65 kHz, delivering deep-water performance with a maximum depth of 3,000 feet, powered by 1 kW of transmit power. This dual-frequency capability allows anglers to switch seamlessly between high-resolution shallow water and deep-sea applications, ensuring versatility in various fishing scenarios. The transducer also incorporates Garmin’s exclusive Xducer ID technology for easy identification and setup, along with a depth and water-temperature sensor for real-time environmental data. Whether you are targeting pelagic species in open water or seeking detailed bottom structure in shallow zones, this transducer offers the coverage, clarity, and speed needed for successful navigation and fishing. Please note that this product complies with Prop 65 warnings, indicating it contains chemicals known to the State of California to cause cancer or reproductive harm. For more information, visit P65Warnings.ca.gov.

Features:

• Depth and water-temperature sensor for real-time environment monitoring

• 1 kW power output for excellent deep water performance

• Low Frequency: 42 kHz to 65 kHz with a maximum depth of 3,000 feet

• High Frequency: 150 kHz to 250 kHz with a maximum depth of 500 feet

• Fixed 25-degree beamwidth at high frequencies for detailed imaging

• Total bandwidth of 123 kHz from a single transducer covering 50 and 200 kHz frequencies

• Superior shallow water resolution, bottom detail, and fish target separation

• Wide beamwidth provides increased coverage under the boat for better fish detection

• Corrosion-resistant bronze housing with high-performance fairing for high-speed operation

• Designed for boats 8 meters (25 feet) and larger with fiberglass or wooden hulls

• Garmin’s exclusive Xducer ID technology for quick setup and identification
