With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fish-finding capability at the anglers fingertips. This display has built-in Garmin Navionics+ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.
Features:

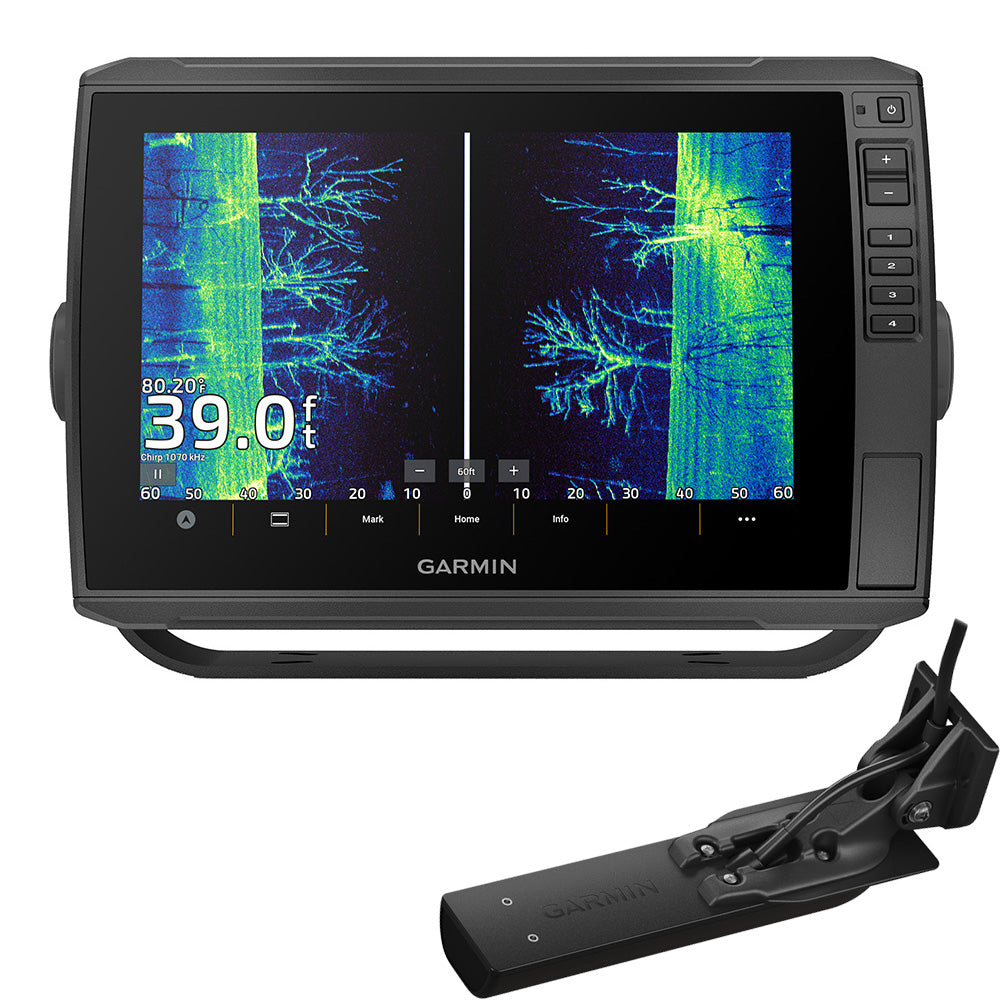

ECHOMAP Ultra 2 106sv with Garmin Navionics+ Inland Coastal Mapping
GT56UHD-TM transducer
10 touchscreen
Supports livescope sonar and more
Wireless network; share sonar, waypoints, and routes.
Capture screen recordings to share fish catches
Multi-band GPS for improved position accuracy
Livescope Sonar Support
The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).
Built-in UHD Sonar
Select models are bundled with a GT56 transducer, which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearV and SideV scanning sonars for photo-like images of whats beneath the surface.
Vivid Color Palettes
High-contrast, vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Preloaded Charts
Experience unparalleled coverage and detail. With built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading, and more.
Premium Map Upgrades
Bring a fresh new look and feel to the chartplotter with optional Garmin Navionics Vision+ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery, and more.
Wireless Networking
If users have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on the boat, users can wirelessly share information such as sonar, waypoints and routes with them.
Stay Connected -Multi-Band GPS
Get improved position accuracy with multi-band GPS
NMEA 2000 Network Compatibility
Connect to heading sensors, autopilots, Fusion-Link audio systems, and more.
ActiveCaptain App
Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw Community data, and more.
Force Trolling Motor
Wirelessly connect to a Force trolling motor to navigate to waypoints, draw and follow routes, and more.
Take It With You
The quick-disconnect bail mount lets users quickly install and remove the unit.
In the Box:
ECHOMAP Ultra 106sv with optional Garmin Navionics+
GT56UHD-TM transducer
Power/data cable
Bail mount with quick-release cradle
Protective sun cover
Hardware
Documentation
Specifications
General:
Dimension: 11.6 x 7.7 x 3.9 (29.5 x 19.5 x 9.8 cm)
Weight: 4.0 lbs (1.8 kg)
Waterproof: IPX7
Touchscreen: Yes
Display Type: WXGA, IPS
Display Size: 8.5 x 5.4; 10 diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)
Display Resolution: 1280 x 800 pixels
Mounting Options: Bail or flush
Input: Touchscreen with Keyed Assist
Maps Memory:
Accepts Data Cards: 2 microSD cards
Waypoints: 5000
Track Points: 50,000
Tracks: 50 saved tracks
Navigation Routes: 100
Sensors:
GPS: Yes
GLONASS: Yes
Galileo: Yes
BeiDou: Yes
Has Built-In Receiver: Yes
Receiver: 10 Hz
NMEA 2000 Compatible: Yes
NMEA 0183 Compatible: Yes
Supports WAAS: Yes
Supports Multi-Band, Multi-Constellation GPS: Yes
Built-In Maps:
Built-In Auto Guidance+: Yes
Garmin Navionics+ Inland Coastal: Yes (see Additional)
Tide Tables: Yes (see Additional)
Optional Map Support:
Garmin Navionics+: Yes
Garmin Navionics+ Vision+: Yes
TOPO 100k: Yes
Standard Mapping: Yes
Garmin Quickdraw Contours: Yes
Chartplotter Features:
AIS: Yes
DSC: Yes
Supports Fusion-Link Compatible Radios: Yes
ActiveCaptain Compatible: Yes
Sailing Features: Yes
Electrical Features:
Power Input: 9 to 18 VDC
Typical Current Draw at 12 VDC: 2.5 A
Maximum Current Draw at 12 VDC: 5.0 A
Maximum Power Usage at 10 VDC: 36 W
Sonar Features:
Displays Sonar: Yes
Power Output: 600 W
Traditional Sonar (Dual Frequency/Beam): Built-in (Single Channel Chirp, 70/83/200 kHz, L, M, H Chirp)
