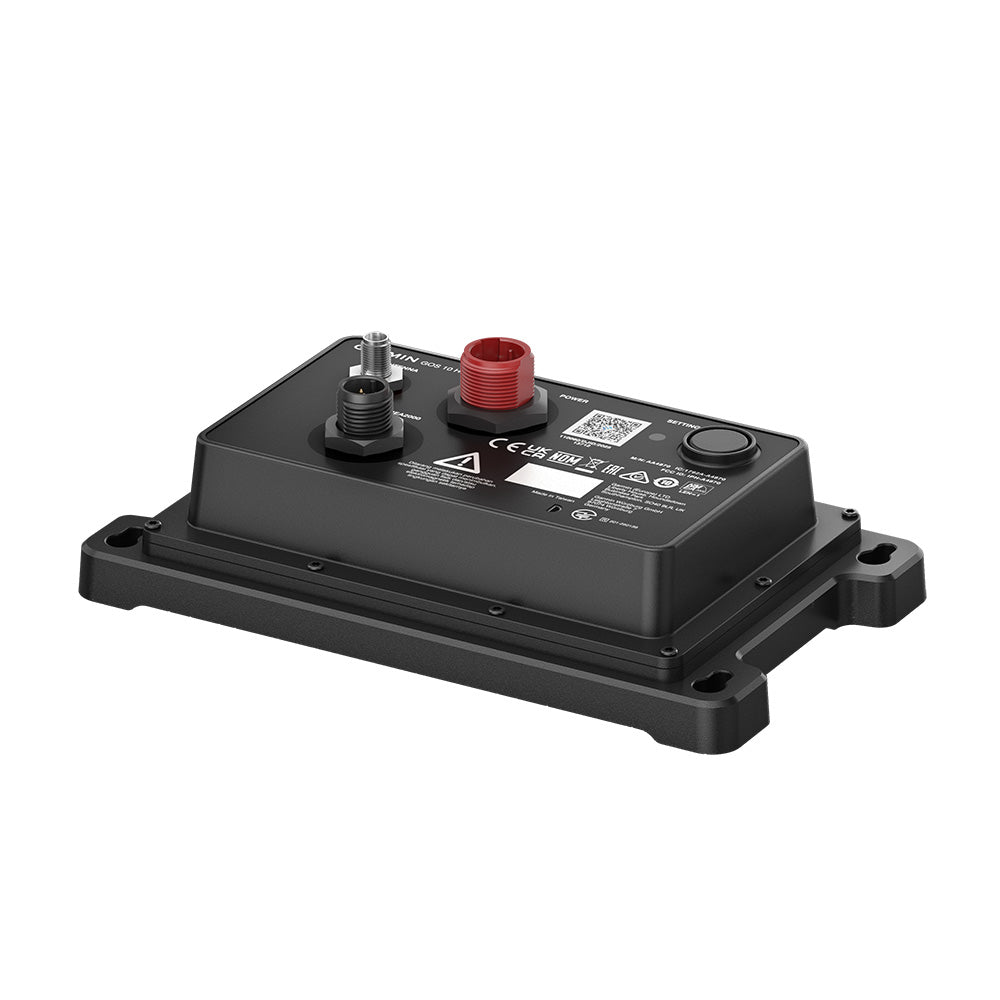

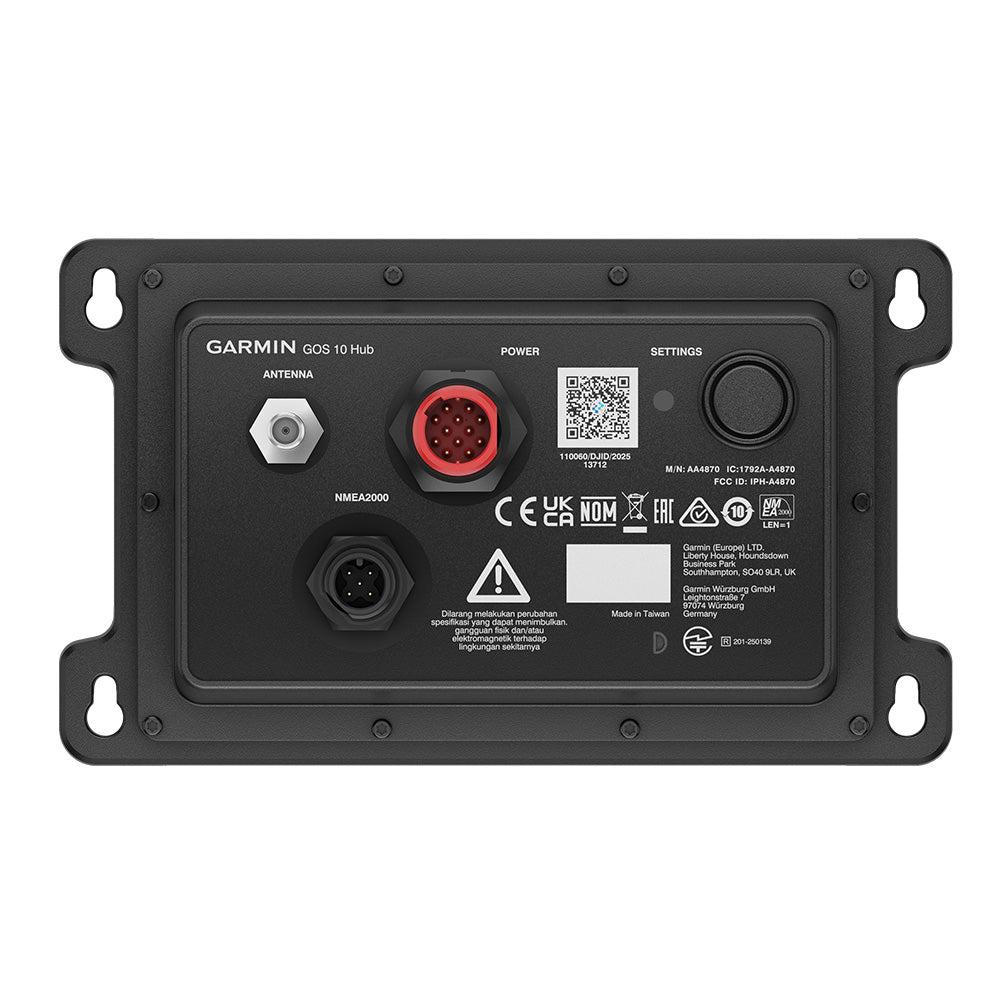

Garmin GOS 10 Hub for Garmin OnBoard System with Wireless MOB Tag Connectivity and Engine Cut Off

GOS 10 Hub for Garmin OnBoard System

Protect your passengers and loved ones with the GOS 10 Hub for the Garmin OnBoard system. One of the main components of your Garmin OnBoard system, the GOS 10 Hub communicates wirelessly with the MOB tags and connects to your vessels engine harness to provide Engine Cut Off System (ECOS) functionality.

Whats In The Box

• GOS 10 Hub for the Garmin OnBoard System
• 12-pin fused power and engine cut-off harness with external buzzer
• External antenna for wireless connection to MOB tags
• NMEA 2000 T-connector
• NMEA 2000 drop cable
• Installation hardware
• Documentation

Specifications:

• Dimensions (HxWxD): 91.55 mm x 155.12 mm x 48.47 mm
• Weight: 171.7 g
• Wireless range: 66 ft (up to 20 m)
• Supply voltage range: 10-32V
• Operating temperature range: -15 C to 70 C
• Typical power consumption: 50mA @ 12V or 0.6W
• NMEA 2000 LEN: 1
• Engine compatibility: Inboard, outboard, sterndrive from all major manufacturers
• Engine interface: Hardwired, in-line connection to ignition harness
• Number of engines supported: Up to 4 close-to-stop or 2 open-to-stop engines
• Water rating: IPX6 and IPX7
• Compass-safe distance: 5 cm

Enhance your vessel's safety and control with the Garmin GOS 10 Hub, a key component of the Garmin OnBoard System designed for seamless integration with your boat's engine and MOB tagging system. This sophisticated hub wirelessly communicates with MOB tags within a range of up to 66 feet, providing reliable identification and quick response capabilities in emergency situations. It connects directly to your vessel’s engine harness, supporting both inboard and outboard engines from major manufacturers, and offers Engine Cut Off System (ECOS) functionality to quickly shut down engines when needed. The GOS 10 Hub is built with durability in mind, featuring an IPX6 and IPX7 water rating, ensuring dependable operation in harsh marine conditions. Its compact size and efficient power consumption make it an excellent addition for boaters seeking enhanced safety features without sacrificing space or power efficiency.

Included in the package are the GOS 10 Hub, a 12-pin fused power and engine cut-off harness with an external buzzer, an external antenna for wireless MOB tag communication, NMEA 2000 T-connector and drop cable for seamless network integration, installation hardware, and comprehensive documentation. The device operates within a voltage range of 10 to 32 volts and is designed to support up to four engines in close-to-stop mode or two engines in open-to-stop mode, making it versatile for various vessel configurations. Its compact dimensions and lightweight design facilitate easy installation and reliable performance. The Garmin GOS 10 Hub ensures your boat is equipped with advanced safety technology, giving you peace of mind on the water.

Features:

• Wireless Range: Up to 66 feet (20 meters) for MOB tag communication

• Engine Compatibility: Supports inboard, outboard, and sterndrive engines from major manufacturers

• Engine Interface: Hardwired, inline connection to ignition harness

• Engine Support: Up to 4 close-to-stop engines or 2 open-to-stop engines

• Water Resistance: IPX6 and IPX7 rated for durability in harsh marine environments

• Power Supply: Operates within 10-32V range with typical consumption of 50mA at 12V

• Connectivity: NMEA 2000 T-connector and drop cable included for easy network integration

• Safety Features: Provides Engine Cut Off System (ECOS) for quick engine shutdown during emergencies

• Dimensions: Compact design measuring approximately 3.6 inches x 6.1 inches x 1.9 inches

• Weight: Lightweight at around 0.6 pounds for easy installation and handling
